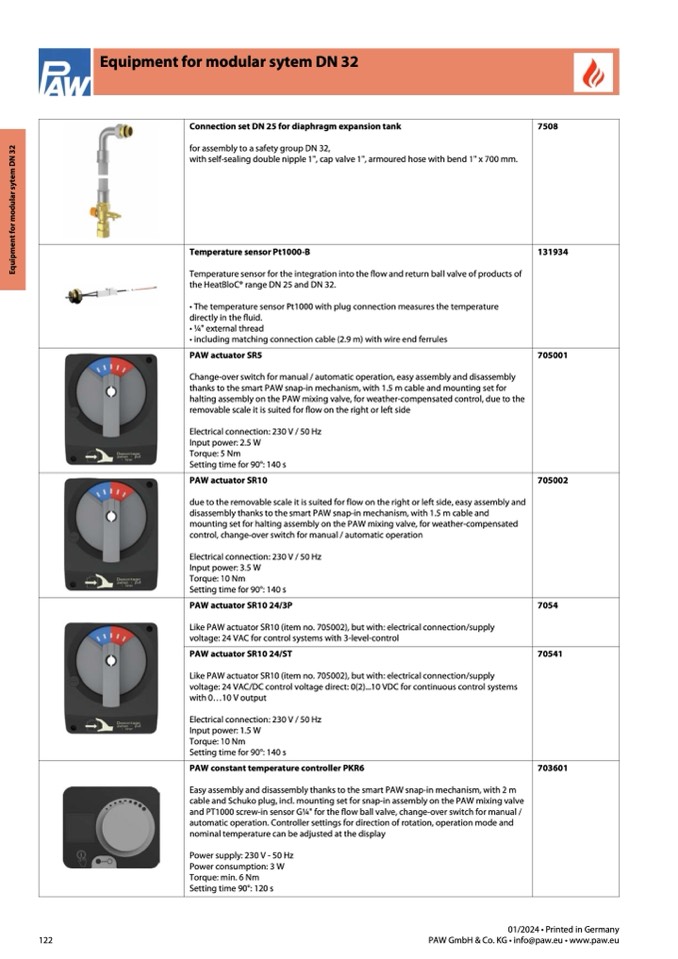

Equipment for modular sytem DN 32

Connection set DN 25 for diaphragm expansion tank

for assembly to a safety group DN 32,

with self-sealing double nipple 1", cap valve 1", armoured hose with bend 1" x 700 mm.

7508

Temperature sensor Pt1000-B

Temperature sensor for the integration into the flow and return ball valve of products of

the HeatBloC® range DN 25 and DN 32.

• The temperature sensor Pt1000 with plug connection measures the temperature

directly in the fluid.

•

1⁄4" external thread

• including matching connection cable (2.9 m) with wire end ferrules

131934

PAW actuator SR5

Change-over switch for manual / automatic operation, easy assembly and disassembly

thanks to the smart PAW snap-in mechanism, with 1.5 m cable and mounting set for

halting assembly on the PAW mixing valve, for weather-compensated control, due to the

removable scale it is suited for flow on the right or left side

Electrical connection: 230 V / 50 Hz

Input power: 2.5 W

Torque: 5 Nm

Setting time for 90°: 140 s

705001

PAW actuator SR10

due to the removable scale it is suited for flow on the right or left side, easy assembly and

disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and

mounting set for halting assembly on the PAW mixing valve, for weather-compensated

control, change-over switch for manual / automatic operation

Electrical connection: 230 V / 50 Hz

Input power: 3.5 W

Torque: 10 Nm

Setting time for 90°: 140 s

705002

PAW actuator SR10 24/3P

Like PAW actuator SR10 (item no. 705002), but with: electrical connection/supply

voltage: 24 VAC for control systems with 3-level-control

7054

PAW actuator SR10 24/ST

Like PAW actuator SR10 (item no. 705002), but with: electrical connection/supply

voltage: 24 VAC/DC control voltage direct: 0(2)...10 VDC for continuous control systems

with 0

...10 V output

Electrical connection: 230 V / 50 Hz

Input power: 1.5 W

Torque: 10 Nm

Setting time for 90°: 140 s

70541

PAW constant temperature controller PKR6

Easy assembly and disassembly thanks to the smart PAW snap-in mechanism, with 2 m

cable and Schuko plug, incl. mounting set for snap-in assembly on the PAW mixing valve

and PT1000 screw-in sensor G

1⁄4" for the flow ball valve, change-over switch for manual /

automatic operation. Controller settings for direction of rotation, operation mode and

nominal temperature can be adjusted at the display

Power supply: 230 V - 50 Hz

Power consumption: 3 W

Torque: min. 6 Nm

Setting time 90°: 120 s

703601
