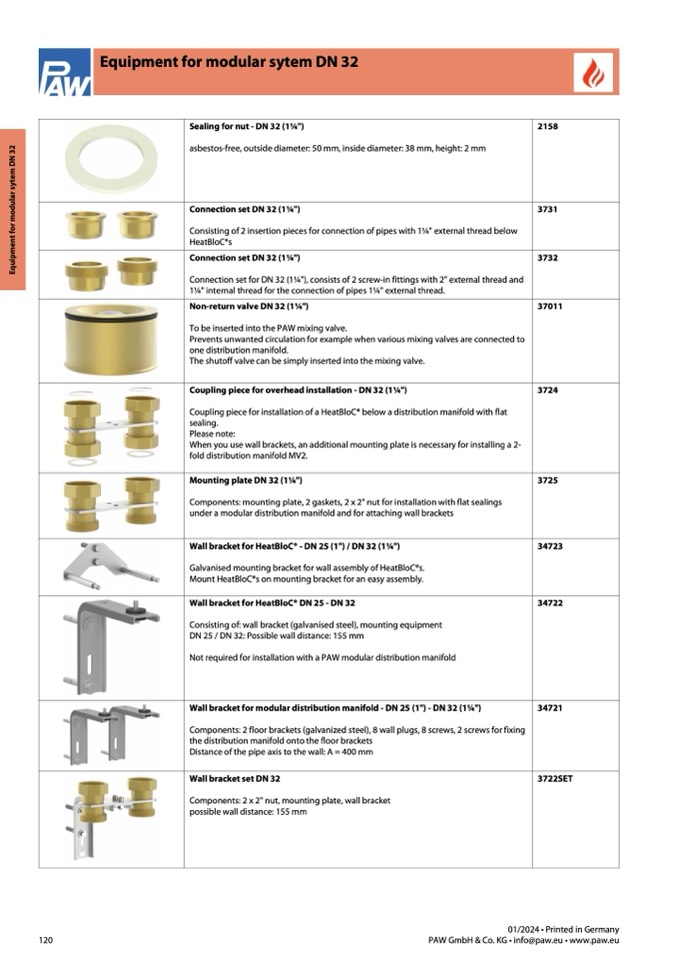

Equipment for modular sytem DN 32

Sealing for nut - DN 32 (1

1⁄4")

asbestos-free, outside diameter: 50 mm, inside diameter: 38 mm, height: 2 mm

2158

Connection set DN 32 (1

1⁄4")

Consisting of 2 insertion pieces for connection of pipes with 1

1⁄4" external thread below

HeatBloC®s

3731

Connection set DN 32 (1

1⁄4")

Connection set for DN 32 (1

1⁄4"), consists of 2 screw-in fittings with 2" external thread and

1

1⁄4" internal thread for the connection of pipes 11⁄4" external thread.

3732

Non-return valve DN 32 (1

1⁄4")

To be inserted into the PAW mixing valve.

Prevents unwanted circulation for example when various mixing valves are connected to

one distribution manifold.

The shutoff valve can be simply inserted into the mixing valve.

37011

Coupling piece for overhead installation - DN 32 (1

1⁄4")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note:

When you use wall brackets, an additional mounting plate is necessary for installing a 2-

fold distribution manifold MV2.

3724

Mounting plate DN 32 (1

1⁄4")

Components: mounting plate, 2 gaskets, 2 x 2" nut for installation with flat sealings

under a modular distribution manifold and for attaching wall brackets

3725

Wall bracket for HeatBloC® - DN 25 (1") / DN 32 (11⁄4")

Galvanised mounting bracket for wall assembly of HeatBloC®s.

Mount HeatBloC®s on mounting bracket for an easy assembly.

34723

Wall bracket for HeatBloC® DN 25 - DN 32

Consisting of: wall bracket (galvanised steel), mounting equipment

DN 25 / DN 32: Possible wall distance: 155 mm

Not required for installation with a PAW modular distribution manifold

34722

Wall bracket for modular distribution manifold - DN 25 (1") - DN 32 (1

1⁄4")

Components: 2 floor brackets (galvanized steel), 8 wall plugs, 8 screws, 2 screws for fixing

the distribution manifold onto the floor brackets

Distance of the pipe axis to the wall: A = 400 mm

34721

Wall bracket set DN 32

Components: 2 x 2" nut, mounting plate, wall bracket

possible wall distance: 155 mm

3722SET

E

q

u

i

p

m

e

n

t

f

o

r

m

o

d

u

l

a

r

s

y

t

e

m

D

N

3

2
