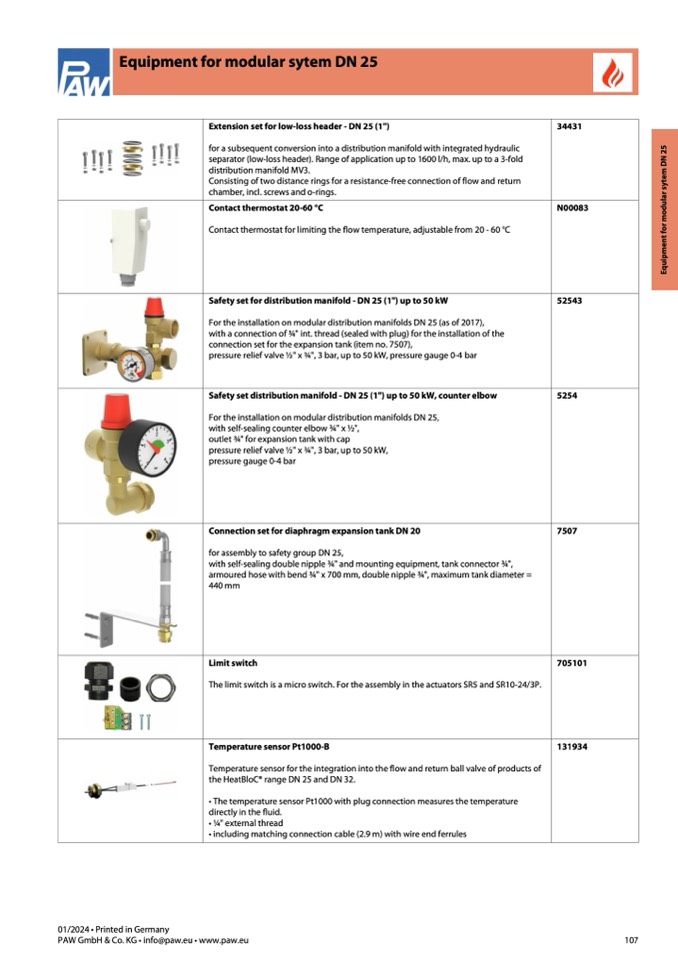

Equipment for modular sytem DN 25
Extension set for low-loss header - DN 25 (1")
for a subsequent conversion into a distribution manifold with integrated hydraulic
separator (low-loss header). Range of application up to 1600 l/h, max. up to a 3-fold
distribution manifold MV3.
Consisting of two distance rings for a resistance-free connection of flow and return
chamber, incl. screws and o-rings.
34431
Contact thermostat 20-60 °C
Contact thermostat for limiting the flow temperature, adjustable from 20 - 60 °C
N00083
Safety set for distribution manifold - DN 25 (1") up to 50 kW
For the installation on modular distribution manifolds DN 25 (as of 2017),
with a connection of
3⁄4" int. thread (sealed with plug) for the installation of the
connection set for the expansion tank (item no. 7507),
pressure relief valve
1⁄2" x
3⁄4", 3 bar, up to 50 kW, pressure gauge 0-4 bar
52543
Safety set distribution manifold - DN 25 (1") up to 50 kW, counter elbow
For the installation on modular distribution manifolds DN 25,
with self-sealing counter elbow
3⁄4" x 1⁄2",
outlet 3⁄4" for expansion tank with cap
pressure relief valve
1⁄2" x
3⁄4", 3 bar, up to 50 kW,
pressure gauge 0-4 bar
5254
Connection set for diaphragm expansion tank DN 20
for assembly to safety group DN 25,
with self-sealing double nipple 3⁄4" and mounting equipment, tank connector 3⁄4",
armoured hose with bend
3⁄4" x 700 mm, double nipple 3⁄4", maximum tank diameter =
440 mm
7507
Limit switch
The limit switch is a micro switch. For the assembly in the actuators SR5 and SR10-24/3P.
705101
Temperature sensor Pt1000-B
Temperature sensor for the integration into the flow and return ball valve of products of
the HeatBloC® range DN 25 and DN 32.
• The temperature sensor Pt1000 with plug connection measures the temperature
directly in the fluid.
•
1⁄4" external thread
• including matching connection cable (2.9 m) with wire end ferrules
131934
