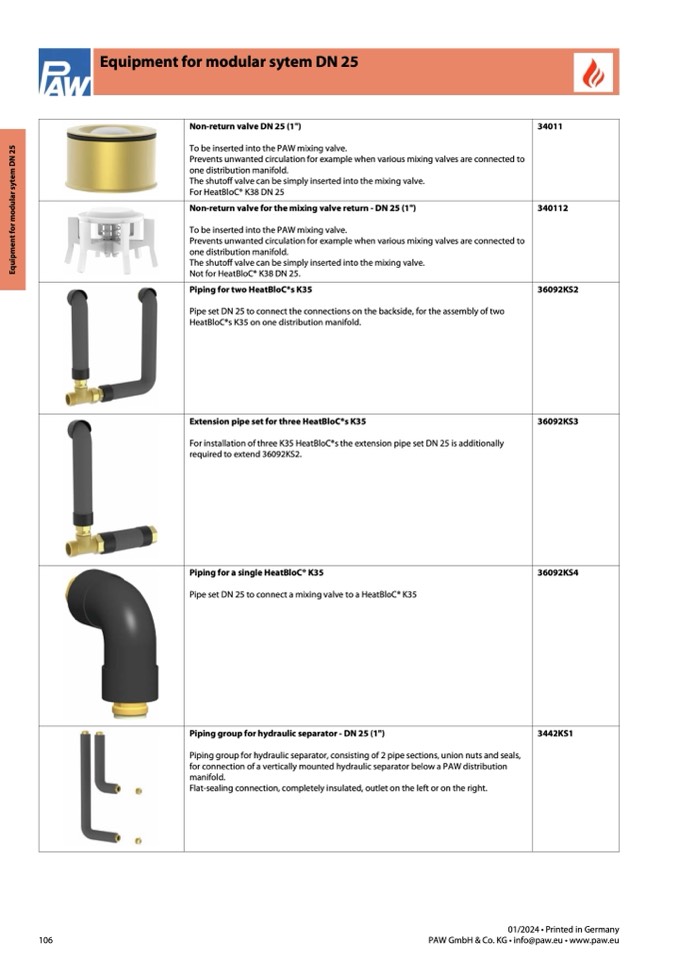

Equipment for modular sytem DN 25

Non-return valve DN 25 (1")

To be inserted into the PAW mixing valve.

Prevents unwanted circulation for example when various mixing valves are connected to

one distribution manifold.

The shutoff valve can be simply inserted into the mixing valve.

For HeatBloC® K38 DN 25

34011

Non-return valve for the mixing valve return - DN 25 (1")

To be inserted into the PAW mixing valve.

Prevents unwanted circulation for example when various mixing valves are connected to

one distribution manifold.

The shutoff valve can be simply inserted into the mixing valve.

Not for HeatBloC® K38 DN 25.

340112

Piping for two HeatBloC®s K35

Pipe set DN 25 to connect the connections on the backside, for the assembly of two

HeatBloC®s K35 on one distribution manifold.

36092KS2

Extension pipe set for three HeatBloC®s K35

For installation of three K35 HeatBloC®s the extension pipe set DN 25 is additionally

required to extend 36092KS2.

36092KS3

Piping for a single HeatBloC® K35

Pipe set DN 25 to connect a mixing valve to a HeatBloC® K35

36092KS4

Piping group for hydraulic separator - DN 25 (1")

Piping group for hydraulic separator, consisting of 2 pipe sections, union nuts and seals,

for connection of a vertically mounted hydraulic separator below a PAW distribution

manifold.

Flat-sealing connection, completely insulated, outlet on the left or on the right.

3442KS1
