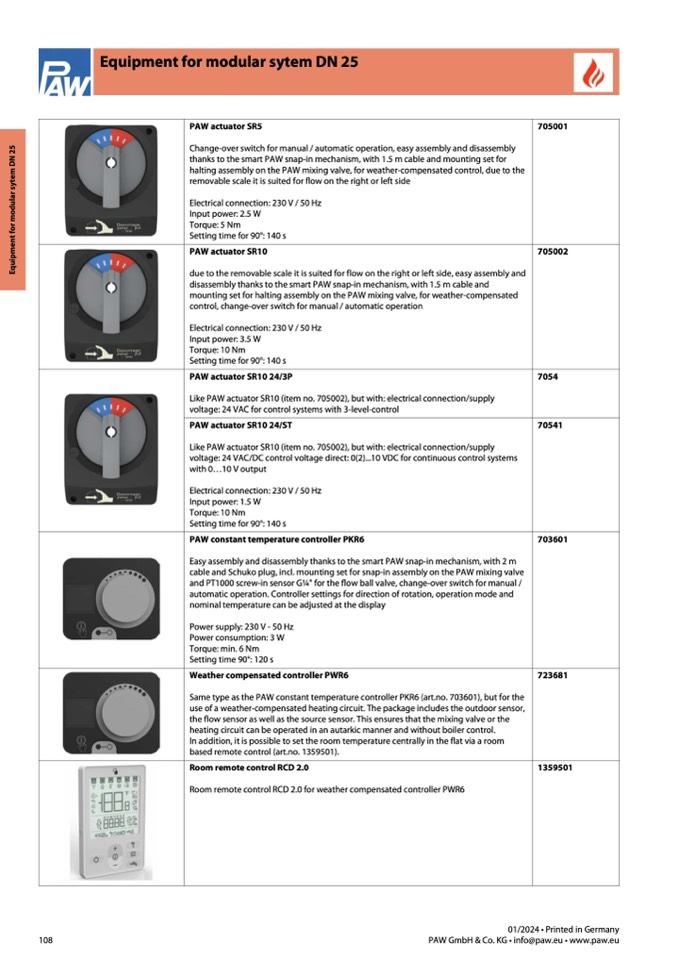

Equipment for modular sytem DN 25

PAW actuator SR5

Change-over switch for manual / automatic operation, easy assembly and disassembly

thanks to the smart PAW snap-in mechanism, with 1.5 m cable and mounting set for

halting assembly on the PAW mixing valve, for weather-compensated control, due to the

removable scale it is suited for flow on the right or left side

Electrical connection: 230 V / 50 Hz

Input power: 2.5 W

Torque: 5 Nm

Setting time for 90°: 140 s

705001

PAW actuator SR10

due to the removable scale it is suited for flow on the right or left side, easy assembly and

disassembly thanks to the smart PAW snap-in mechanism, with 1.5 m cable and

mounting set for halting assembly on the PAW mixing valve, for weather-compensated

control, change-over switch for manual / automatic operation

Electrical connection: 230 V / 50 Hz

Input power: 3.5 W

Torque: 10 Nm

Setting time for 90°: 140 s

705002

PAW actuator SR10 24/3P

Like PAW actuator SR10 (item no. 705002), but with: electrical connection/supply

voltage: 24 VAC for control systems with 3-level-control

7054

PAW actuator SR10 24/ST

Like PAW actuator SR10 (item no. 705002), but with: electrical connection/supply

voltage: 24 VAC/DC control voltage direct: 0(2)...10 VDC for continuous control systems

with 0

...10 V output

Electrical connection: 230 V / 50 Hz

Input power: 1.5 W

Torque: 10 Nm

Setting time for 90°: 140 s

70541

PAW constant temperature controller PKR6

Easy assembly and disassembly thanks to the smart PAW snap-in mechanism, with 2 m

cable and Schuko plug, incl. mounting set for snap-in assembly on the PAW mixing valve

and PT1000 screw-in sensor G

1⁄4" for the flow ball valve, change-over switch for manual /

automatic operation. Controller settings for direction of rotation, operation mode and

nominal temperature can be adjusted at the display

Power supply: 230 V - 50 Hz

Power consumption: 3 W

Torque: min. 6 Nm

Setting time 90°: 120 s

703601

Weather compensated controller PWR6

Same type as the PAW constant temperature controller PKR6 (art.no. 703601), but for the

use of a weather-compensated heating circuit. The package includes the outdoor sensor,

the flow sensor as well as the source sensor. This ensures that the mixing valve or the

heating circuit can be operated in an autarkic manner and without boiler control.

In addition, it is possible to set the room temperature centrally in the flat via a room

based remote control (art.no. 1359501).

723681

Room remote control RCD 2.0

Room remote control RCD 2.0 for weather compensated controller PWR6

1359501

E

q

u

i

p

m

e

n

t

f

o

r

m

o

d

u

l

a

r

s

y

t

e

m

D

N

2

5

01/2024 • Printed in Germany

108
