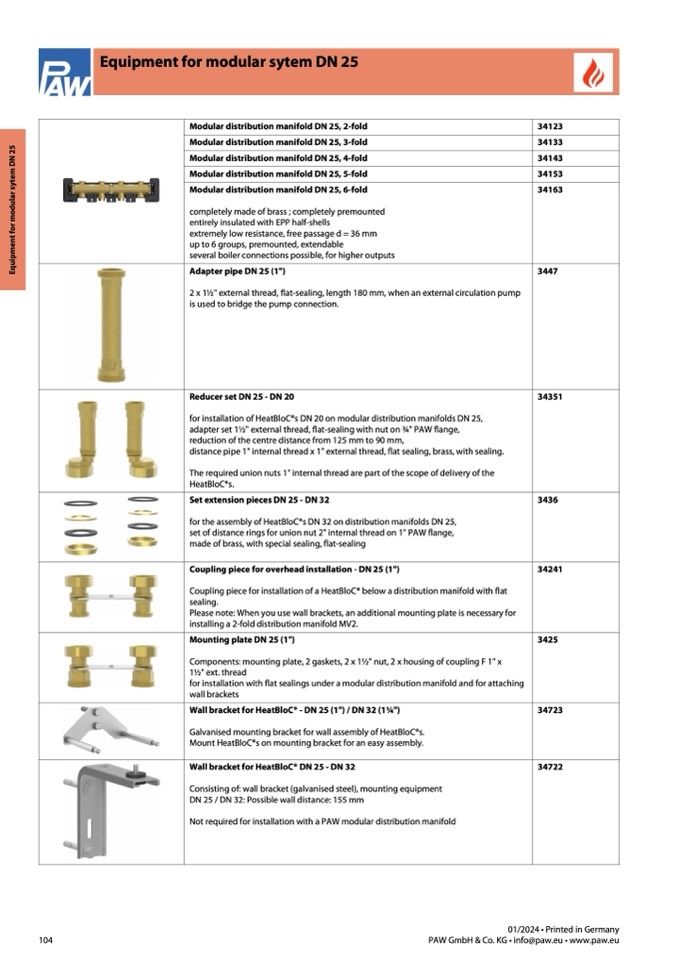

Equipment for modular sytem DN 25

Modular distribution manifold DN 25, 6-fold

completely made of brass ; completely premounted

entirely insulated with EPP half-shells

extremely low resistance, free passage d = 36 mm

up to 6 groups, premounted, extendable

several boiler connections possible, for higher outputs

34163

Adapter pipe DN 25 (1")

2 x 1

1⁄2" external thread, flat-sealing, length 180 mm, when an external circulation pump

is used to bridge the pump connection.

Coupling piece for overhead installation - DN 25 (1")

Coupling piece for installation of a HeatBloC® below a distribution manifold with flat

sealing.

Please note: When you use wall brackets, an additional mounting plate is necessary for

installing a 2-fold distribution manifold MV2.

3447

Reducer set DN 25 - DN 20

for installation of HeatBloC®s DN 20 on modular distribution manifolds DN 25,

adapter set 1

1⁄2" external thread, flat-sealing with nut on

3⁄4" PAW flange,

reduction of the centre distance from 125 mm to 90 mm,

distance pipe 1" internal thread x 1" external thread, flat sealing, brass, with sealing.

The required union nuts 1" internal thread are part of the scope of delivery of the

HeatBloC®s.

34351

Set extension pieces DN 25 - DN 32

for the assembly of HeatBloC®s DN 32 on distribution manifolds DN 25,

set of distance rings for union nut 2" internal thread on 1" PAW flange,

made of brass, with special sealing, flat-sealing

3436

34241

Mounting plate DN 25 (1")

Components: mounting plate, 2 gaskets, 2 x 1

1⁄2" nut, 2 x housing of coupling F 1" x

1

1⁄2" ext. thread

for installation with flat sealings under a modular distribution manifold and for attaching

wall brackets

3425

Wall bracket for HeatBloC® - DN 25 (1") / DN 32 (11⁄4")

Galvanised mounting bracket for wall assembly of HeatBloC®s.

Mount HeatBloC®s on mounting bracket for an easy assembly.

34723

Wall bracket for HeatBloC® DN 25 - DN 32

Consisting of: wall bracket (galvanised steel), mounting equipment

DN 25 / DN 32: Possible wall distance: 155 mm

Not required for installation with a PAW modular distribution manifold

34722

E

q

u

i

p

m

e

n

t

f

o

r

m

o

d

u

l

a

r

s

y

t

e

m

D

N

2

5

Modular distribution manifold DN 25, 2-fold

Modular distribution manifold DN 25, 3-fold

Modular distribution manifold DN 25, 4-fold

Modular distribution manifold DN 25, 5-fold

34123

34133

34143

34153

104
