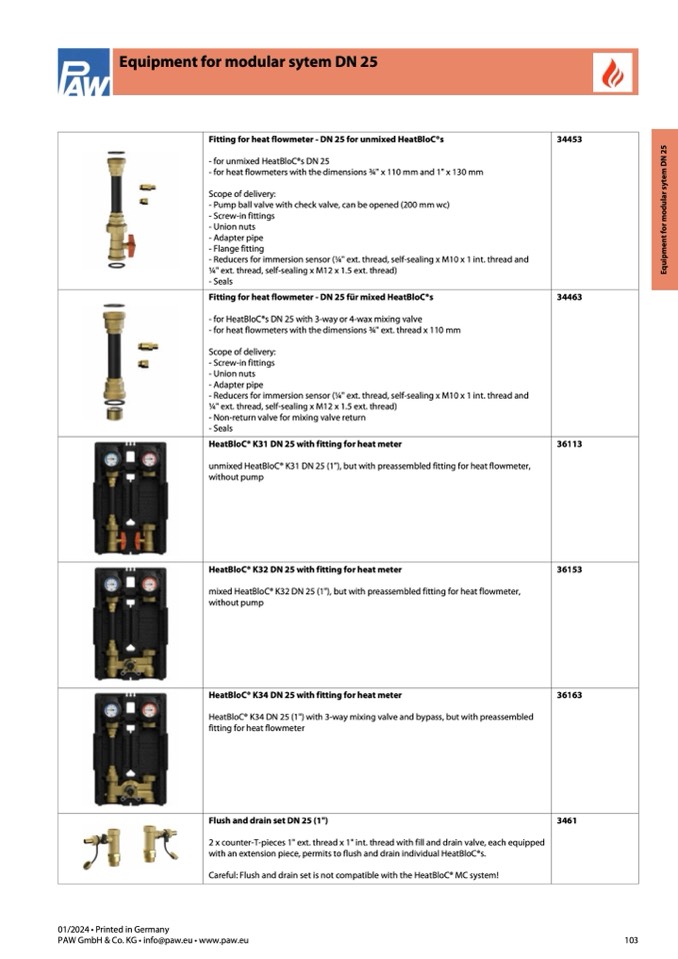

Equipment for modular sytem DN 25

Fitting for heat flowmeter - DN 25 for unmixed HeatBloC®s

- for unmixed HeatBloC®s DN 25

- for heat flowmeters with the dimensions

3⁄4" x 110 mm and 1" x 130 mm

Scope of delivery:

- Pump ball valve with check valve, can be opened (200 mm wc)

- Screw-in fittings

- Union nuts

- Adapter pipe

- Flange fitting

- Reducers for immersion sensor (1⁄4" ext. thread, self-sealing x M10 x 1 int. thread and

1⁄4" ext. thread, self-sealing x M12 x 1.5 ext. thread)

- Seals

34453

Fitting for heat flowmeter - DN 25 f

ür mixed HeatBloC®s

- for HeatBloC®s DN 25 with 3-way or 4-wax mixing valve

- for heat flowmeters with the dimensions

3⁄4" ext. thread x 110 mm

Scope of delivery:

- Screw-in fittings

- Union nuts

- Adapter pipe

- Reducers for immersion sensor (1⁄4" ext. thread, self-sealing x M10 x 1 int. thread and

1⁄4" ext. thread, self-sealing x M12 x 1.5 ext. thread)

- Non-return valve for mixing valve return

- Seals

34463

HeatBloC® K31 DN 25 with fitting for heat meter

unmixed HeatBloC® K31 DN 25 (1"), but with preassembled fitting for heat flowmeter,

without pump

36113

HeatBloC® K32 DN 25 with fitting for heat meter

mixed HeatBloC® K32 DN 25 (1"), but with preassembled fitting for heat flowmeter,

without pump

36153

HeatBloC® K34 DN 25 with fitting for heat meter

HeatBloC® K34 DN 25 (1") with 3-way mixing valve and bypass, but with preassembled

fitting for heat flowmeter

36163

Flush and drain set DN 25 (1")

2 x counter-T-pieces 1" ext. thread x 1" int. thread with fill and drain valve, each equipped

with an extension piece, permits to flush and drain individual HeatBloC®s.

Careful: Flush and drain set is not compatible with the HeatBloC® MC system!

3461
