Codice
Code
Gas rilevato
Gas detected
Cartuccia
ricambio
Cartridge
replacement
Campo
misura
Measuring
range
Assorbimento
Electrical input
Bombola
taratura
Calibration
cylinder
Vita media
in aria pulita
Average time
in clean air
Tecnocologia
Technology
32

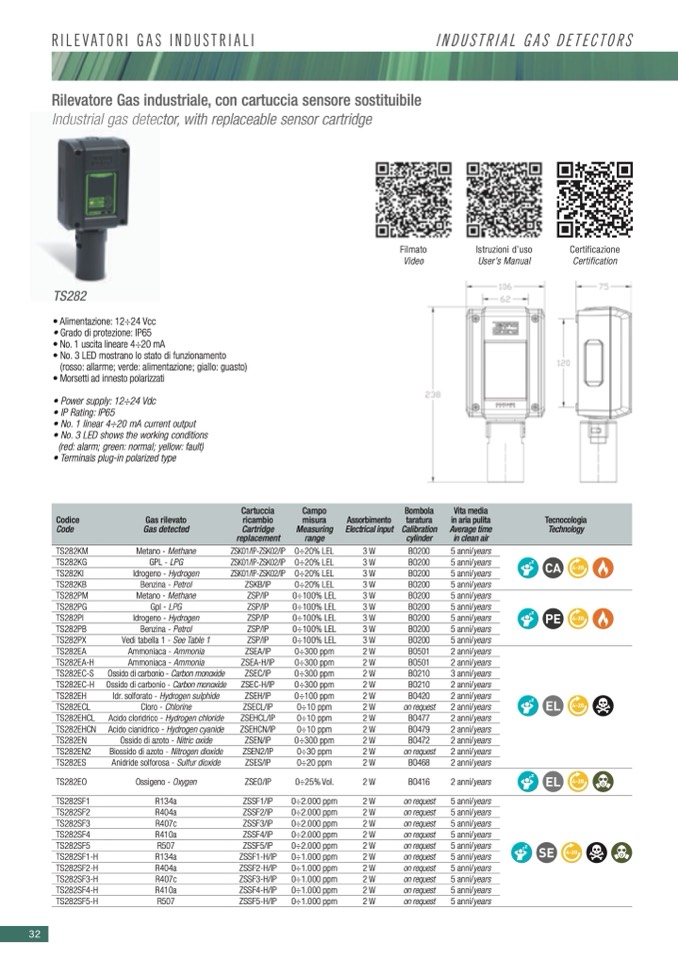

RILEVATORI GAS INDUSTRIALI
INDUSTRIAL GAS DETECTORS
Rilevatore Gas industriale, con cartuccia sensore sostituibile
I
ctor, with replaceable sensor cartridge
In
nd
du
us
st
t r
r i
i a
a l
l g g
a
as
sd
de
e t
t e
ec
Filmato
Video
Istruzioni d’uso
User’s Manual
Certificazione
Certification
T
TS
S2
28
8 2
2
• Alimentazione: 12÷24 Vcc
• Grado di protezione: IP65
• No. 1 uscita lineare 4÷20 mA
• No. 3 LED mostrano lo stato di funzionamento
(rosso: allarme; verde: alimentazione; giallo: guasto)
• Morsetti ad innesto polarizzati
• Power supply: 12÷24 Vdc
• IP Rating: IP65
• No. 1 linear 4÷20 mA current output
• No. 3 LED shows the working conditions
(red: alarm; green: normal; yellow: fault)
• Terminals plug-in polarized type
TS282KM
TS282KG
TS282KI
TS282KB
TS282PM
TS282PG
TS282PI
TS282PB
TS282PX
TS282EA
TS282EA-H
TS282EC-S
TS282EC-H
TS282EH
TS282ECL
TS282EHCL
TS282EHCN
TS282EN
TS282EN2
TS282ES
TS282EO
TS282SF1
TS282SF2
TS282SF3
TS282SF4
TS282SF5
TS282SF1-H
TS282SF2-H
TS282SF3-H
TS282SF4-H
TS282SF5-H
Metano - Methane
GPL - LPG
Idrogeno - Hydrogen
Benzina - Petrol
Metano - Methane
Gpl - LPG
Idrogeno - Hydrogen
Benzina - Petrol
Vedi tabella 1 - See Table 1
Ammoniaca - Ammonia
Ammoniaca - Ammonia
Ossido di carbonio - Carbon monoxide
Ossido di carbonio - Carbon monoxide
Idr. solforato - Hydrogen sulphide
Cloro - Chlorine
Acido cloridrico - Hydrogen chloride
Acido cianidrico - Hydrogen cyanide
Ossido di azoto - Nitric oxide
Biossido di azoto - Nitrogen dioxide
Anidride solforosa - Sulfur dioxide
Ossigeno - Oxygen
R134a
R404a
R407c
R410a
R507
R134a
R404a
R407c
R410a
ZSK01/IP-ZSK02/IP
ZSK01/IP-ZSK02/IP
ZSK01/IP-ZSK02/IP
ZSKB/IP
ZSP/IP
ZSP/IP
ZSP/IP
ZSP/IP
ZSP/IP
ZSEA/IP
ZSEA-H/IP
ZSEC/IP
ZSEC-H/IP
ZSEH/IP
ZSECL/IP
ZSEHCL/IP
ZSEHCN/IP
ZSEN/IP
ZSEN2/IP
ZSES/IP
ZSEO/IP
ZSSF1/IP
ZSSF2/IP
ZSSF3/IP
ZSSF4/IP
ZSSF5/IP
ZSSF1-H/IP
ZSSF2-H/IP
ZSSF3-H/IP
ZSSF4-H/IP
ZSSF5-H/IP
0÷20% LEL
3W
0÷20% LEL
3W
0÷20% LEL
3W
0÷20% LEL
3W
0÷100% LEL
3W
0÷100% LEL
3W
0÷100% LEL
3W
0÷100% LEL
3W
0÷100% LEL
3W
0÷300 ppm
2W
0÷300 ppm
2W
0÷300 ppm
2W
0÷300 ppm
2W
0÷100 ppm
2W
0÷10 ppm
2W
0÷10 ppm
2W
0÷10 ppm
2W
0÷300 ppm
2W
0÷30 ppm
2W
0÷20 ppm
2W
0÷25% Vol.
2W
0÷2.000 ppm
2W
0÷2.000 ppm
2W
0÷2.000 ppm
2W
0÷2.000 ppm
2W
0÷2.000 ppm
2W
0÷1.000 ppm
2W
0÷1.000 ppm
2W
0÷1.000 ppm
2W
0÷1.000 ppm
2W
0÷1.000 ppm
2W
BO200
BO200
BO200
BO200
BO200
BO200
BO200
BO200
BO200
BO501
BO501
BO210
BO210
BO420
on request
BO477
BO479
BO472
on request
BO468
BO416
on request
on request
on request
on request
on request
on request
on request
on request
on request
on request
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
2 anni/years
2 anni/years
3 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
2 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
5 anni/years
R507
