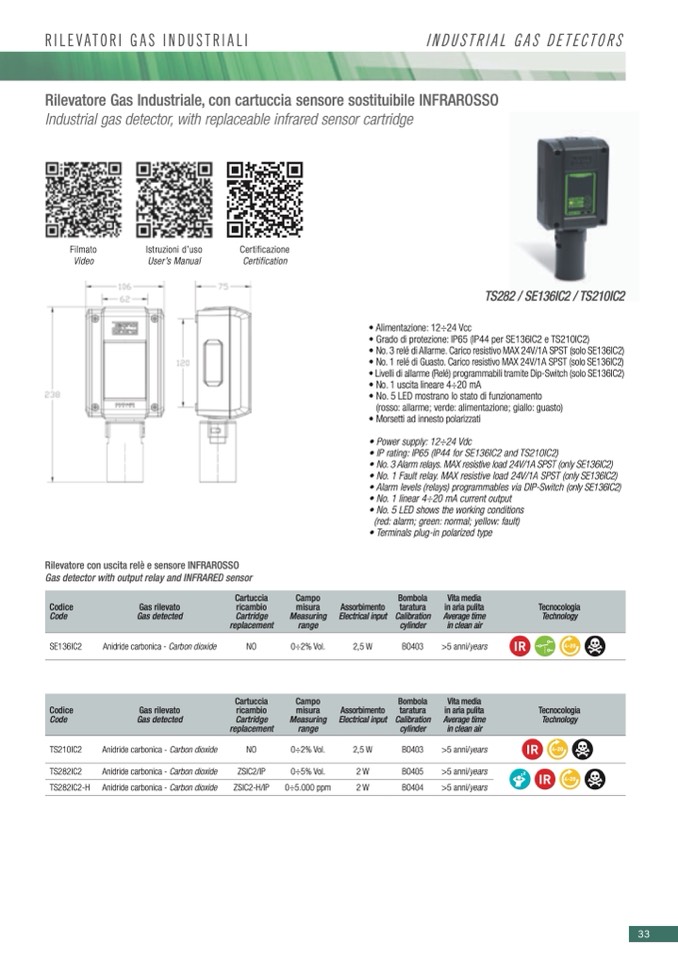

RILEVATORI GAS INDUSTRIALI

INDUSTRIAL GAS DETECTORS

Rilevatore Gas Industriale, con cartuccia sensore sostituibile INFRAROSSO

Industrial gas detector, with replaceable infrared sensor cartridge

Filmato

Video

Istruzioni d’uso

User’s Manual

Certificazione

Certification

Rilevatore con uscita relè e sensore INFRAROSSO

Gas detector with output relay and INFRARED sensor

TS282 / SE136IC2 / TS210IC2

• Alimentazione: 12÷24 Vcc

• Grado di protezione: IP65 (IP44 per SE136IC2 e TS210IC2)

• No. 3 relé di Allarme. Carico resistivo MAX 24V/1A SPST (solo SE136IC2)

• No. 1 relé di Guasto. Carico resistivo MAX 24V/1A SPST (solo SE136IC2)

• Livelli di allarme (Relé) programmabili tramite Dip-Switch (solo SE136IC2)

• No. 1 uscita lineare 4÷20 mA

• No. 5 LED mostrano lo stato di funzionamento

(rosso: allarme; verde: alimentazione; giallo: guasto)

• Morsetti ad innesto polarizzati

• Power supply: 12÷24 Vdc

• IP rating: IP65 (IP44 for SE136IC2 and TS210IC2)

• No. 3 Alarm relays. MAX resistive load 24V/1A SPST (only SE136IC2)

• No. 1 Fault relay. MAX resistive load 24V/1A SPST (only SE136IC2)

• Alarm levels (relays) programmables via DIP-Switch (only SE136IC2)

• No. 1 linear 4÷20 mA current output

• No. 5 LED shows the working conditions

(red: alarm; green: normal; yellow: fault)

• Terminals plug-in polarized type

Codice

Code

Gas rilevato

Gas detected

Cartuccia

ricambio

Cartridge

replacement

Campo

misura

Measuring

range

Assorbimento

Electrical input

Bombola

taratura

Calibration

cylinder

Vita media

in aria pulita

Average time

in clean air

Tecnocologia

Technology

SE136IC2

Anidride carbonica - Carbon dioxide

NO

0÷2% Vol.

2,5 W

BO403

>5 anni/years

Codice

Code

Gas rilevato

Gas detected

Cartuccia

ricambio

Cartridge

replacement

Campo

misura

Measuring

range

Assorbimento

Electrical input

Bombola

taratura

Calibration

cylinder

Vita media

in aria pulita

Average time

in clean air

Tecnocologia

Technology

TS210IC2

Anidride carbonica - Carbon dioxide

NO

0÷2% Vol.

2,5 W

BO403

>5 anni/years

TS282IC2

Anidride carbonica - Carbon dioxide

ZSIC2/IP

0÷5% Vol.

2W

BO405

>5 anni/years

TS282IC2-H

Anidride carbonica - Carbon dioxide

ZSIC2-H/IP

0÷5.000 ppm

2W

BO404

>5 anni/years
