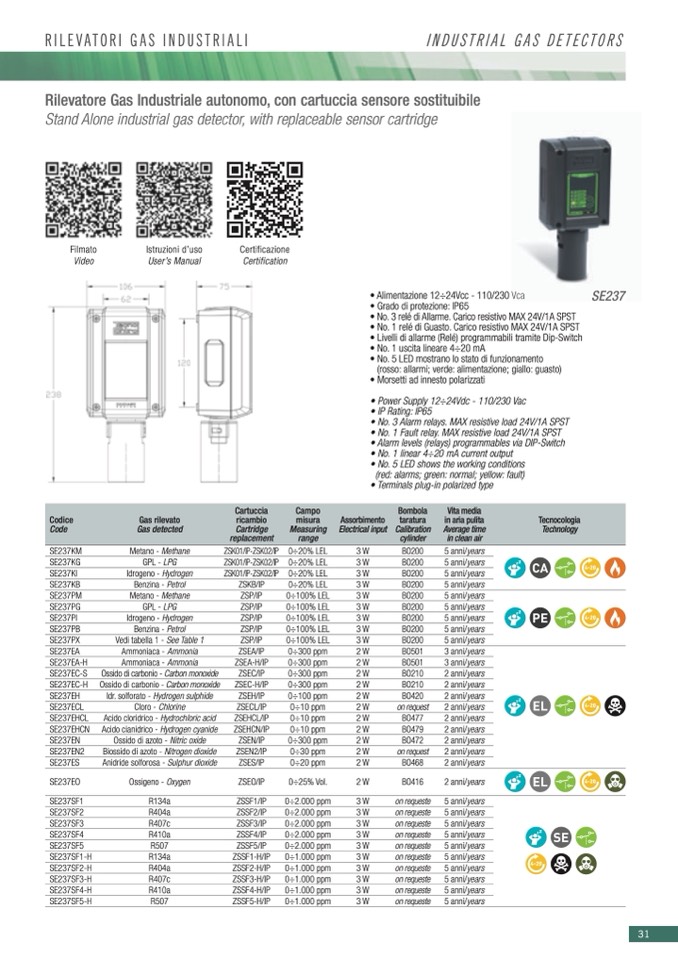

RILEVATORI GAS INDUSTRIALI

INDUSTRIAL GAS DETECTORS

Rilevatore Gas Industriale autonomo, con cartuccia sensore sostituibile

Stand Alone industrial gas detector, with replaceable sensor cartridge

Filmato

Video

Istruzioni d’uso

User’s Manual

Certificazione

Certification

SE237KM

SE237KG

SE237KI

SE237KB

SE237PM

SE237PG

SE237PI

SE237PB

SE237PX

SE237EA

SE237EA-H

SE237EC-S

SE237EC-H

SE237EH

SE237ECL

SE237EHCL

SE237EHCN

SE237EN

SE237EN2

SE237ES

SE237EO

SE237SF1

SE237SF2

SE237SF3

SE237SF4

SE237SF5

SE237SF1-H

SE237SF2-H

SE237SF3-H

SE237SF4-H

SE237SF5-H

Metano - Methane

GPL - LPG

Idrogeno - Hydrogen

Benzina - Petrol

Metano - Methane

GPL - LPG

Idrogeno - Hydrogen

Benzina - Petrol

Vedi tabella 1 - See Table 1

Ammoniaca - Ammonia

Ammoniaca - Ammonia

Ossido di carbonio - Carbon monoxide

Ossido di carbonio - Carbon monoxide

Idr. solforato - Hydrogen sulphide

Cloro - Chlorine

Acido cloridrico - Hydrochloric acid

Acido cianidrico - Hydrogen cyanide

Ossido di azoto - Nitric oxide

Biossido di azoto - Nitrogen dioxide

Anidride solforosa - Sulphur dioxide

Ossigeno - Oxygen

R134a

R404a

R407c

R410a

R507

R134a

R404a

R407c

R410a

ZSK01/IP-ZSK02/IP

ZSK01/IP-ZSK02/IP

ZSK01/IP-ZSK02/IP

ZSKB/IP

ZSP/IP

ZSP/IP

ZSP/IP

ZSP/IP

ZSP/IP

ZSEA/IP

ZSEA-H/IP

ZSEC/IP

ZSEC-H/IP

ZSEH/IP

ZSECL/IP

ZSEHCL/IP

ZSEHCN/IP

ZSEN/IP

ZSEN2/IP

ZSES/IP

ZSEO/IP

ZSSF1/IP

ZSSF2/IP

ZSSF3/IP

ZSSF4/IP

ZSSF5/IP

ZSSF1-H/IP

ZSSF2-H/IP

ZSSF3-H/IP

ZSSF4-H/IP

ZSSF5-H/IP

0÷20% LEL

0÷20% LEL

0÷20% LEL

0÷20% LEL

0÷100% LEL

0÷100% LEL

0÷100% LEL

0÷100% LEL

0÷100% LEL

0÷300 ppm

0÷300 ppm

0÷300 ppm

0÷300 ppm

0÷100 ppm

0÷10 ppm

0÷10 ppm

0÷10 ppm

0÷300 ppm

0÷30 ppm

0÷20 ppm

0÷25% Vol.

0÷2.000 ppm

0÷2.000 ppm

0÷2.000 ppm

0÷2.000 ppm

0÷2.000 ppm

0÷1.000 ppm

0÷1.000 ppm

0÷1.000 ppm

0÷1.000 ppm

0÷1.000 ppm

3W

BO200

3W

BO200

3W

BO200

3W

BO200

3W

BO200

3W

BO200

3W

BO200

3W

BO200

3W

BO200

2W

BO501

2W

BO501

2W

BO210

2W

BO210

2W

BO420

2W

on request

2W

BO477

2W

BO479

2W

BO472

2W

on request

2W

BO468

2W

BO416

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

3W

on requeste

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

3 anni/years

3 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

2 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

5 anni/years

• Alimentazione 12÷24Vcc - 110/230 V

• Grado di protezione: IP65

• No. 3 relé di Allarme. Carico resistivo MAX 24V/1A SPST

• No. 1 relé di Guasto. Carico resistivo MAX 24V/1A SPST

• Livelli di allarme (Relé) programmabili tramite Dip-Switch

• No. 1 uscita lineare 4÷20 mA

• No. 5 LED mostrano lo stato di funzionamento

(rosso: allarmi; verde: alimentazione; giallo: guasto)

• Morsetti ad innesto polarizzati

• Power Supply 12÷24Vdc - 110/230 Vac

• IP Rating: IP65

• No. 3 Alarm relays. MAX resistive load 24V/1A SPST

• No. 1 Fault relay. MAX resistive load 24V/1A SPST

• Alarm levels (relays) programmables via DIP-Switch

• No. 1 linear 4÷20 mA current output

• No. 5 LED shows the working conditions

(red: alarms; green: normal; yellow: fault)

• Terminals plug-in polarized type

7

V c

ca

a

S

S E

E 2

2 3

37

Codice

Code

Gas rilevato

Gas detected

Cartuccia

ricambio

Cartridge

replacement

Campo

misura

Measuring

range

Assorbimento

Electrical input

Bombola

taratura

Calibration

cylinder

Vita media

in aria pulita

Average time

in clean air

Tecnocologia

Technology

R507
