MARINE FANCOIL UNITS

MARINE FANCOIL UNITS

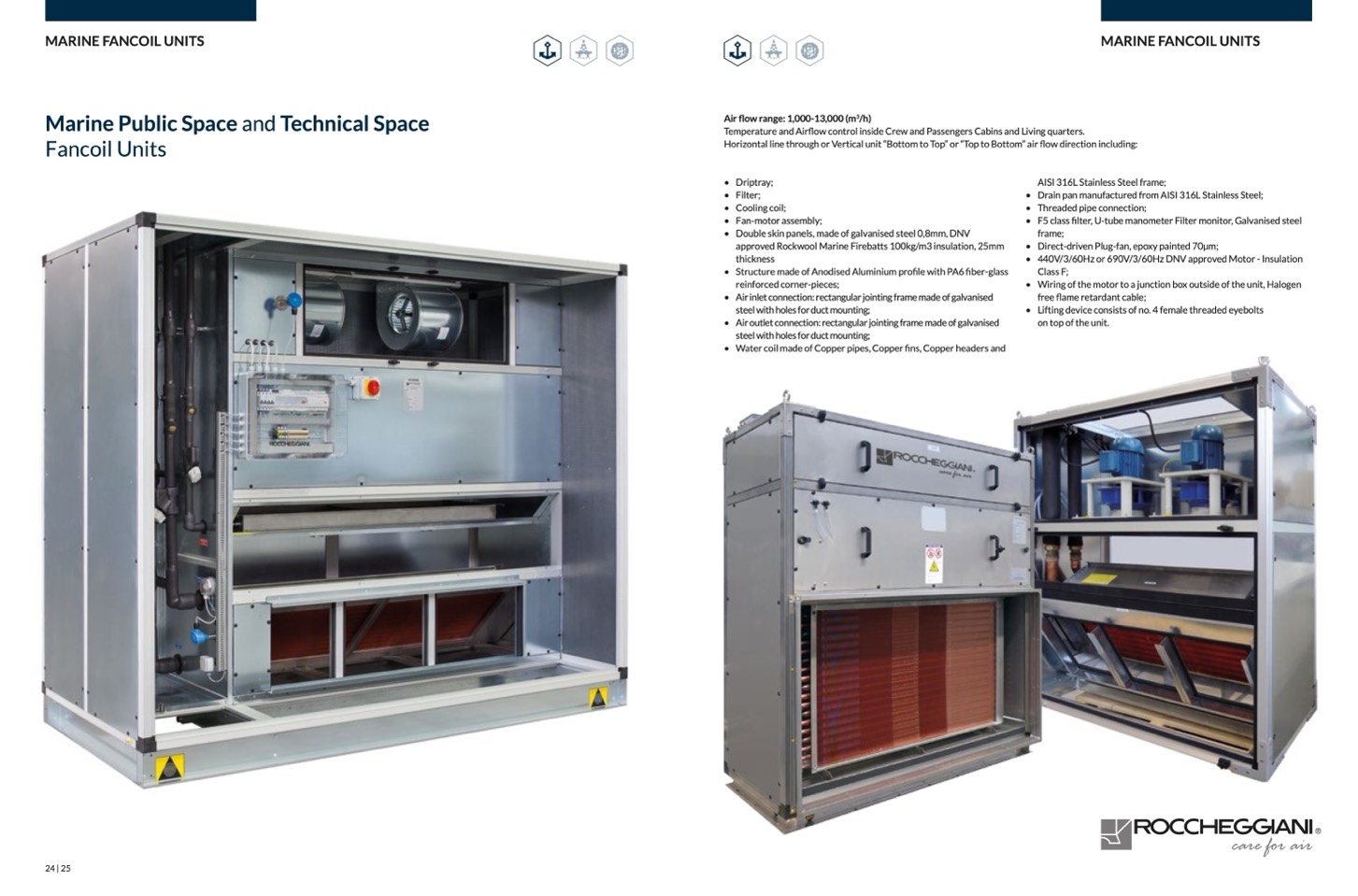

Marine Public Space and Technical Space

Fancoil Units

Air flow range: 1,000-13,000 (m

3

/h)

Temperature and Airflow control inside Crew and Passengers Cabins and Living quarters.

Horizontal line through or Vertical unit “Bottom to Top” or “Top to Bottom” air flow direction including:

• Driptray;

• Filter;

• Cooling coil;

• Fan-motor assembly;

• Double skin panels, made of galvanised steel 0,8mm, DNV

approved Rockwool Marine Firebatts 100kg/m3 insulation, 25mm

thickness

• Structure made of Anodised Aluminium profile with PA6 fiber-glass

reinforced corner-pieces;

• Air inlet connection: rectangular jointing frame made of galvanised

steel with holes for duct mounting;

• Air outlet connection: rectangular jointing frame made of galvanised

steel with holes for duct mounting;

• WatercoilmadeofCopperpipes,Copperfins,Copperheadersand

AISI 316L Stainless Steel frame;

• Drain pan manufactured from AISI 316L Stainless Steel;

• Threaded pipe connection;

• F5 class filter, U-tube manometer Filter monitor, Galvanised steel

frame;

• Direct-driven Plug-fan, epoxy painted 70μm;

• 440V/3/60Hz or 690V/3/60Hz DNV approved Motor - Insulation

Class F;

• Wiring of the motor to a junction box outside of the unit, Halogen

free flame retardant cable;

• Lifting device consists of no. 4 female threaded eyebolts

on top of the unit.
