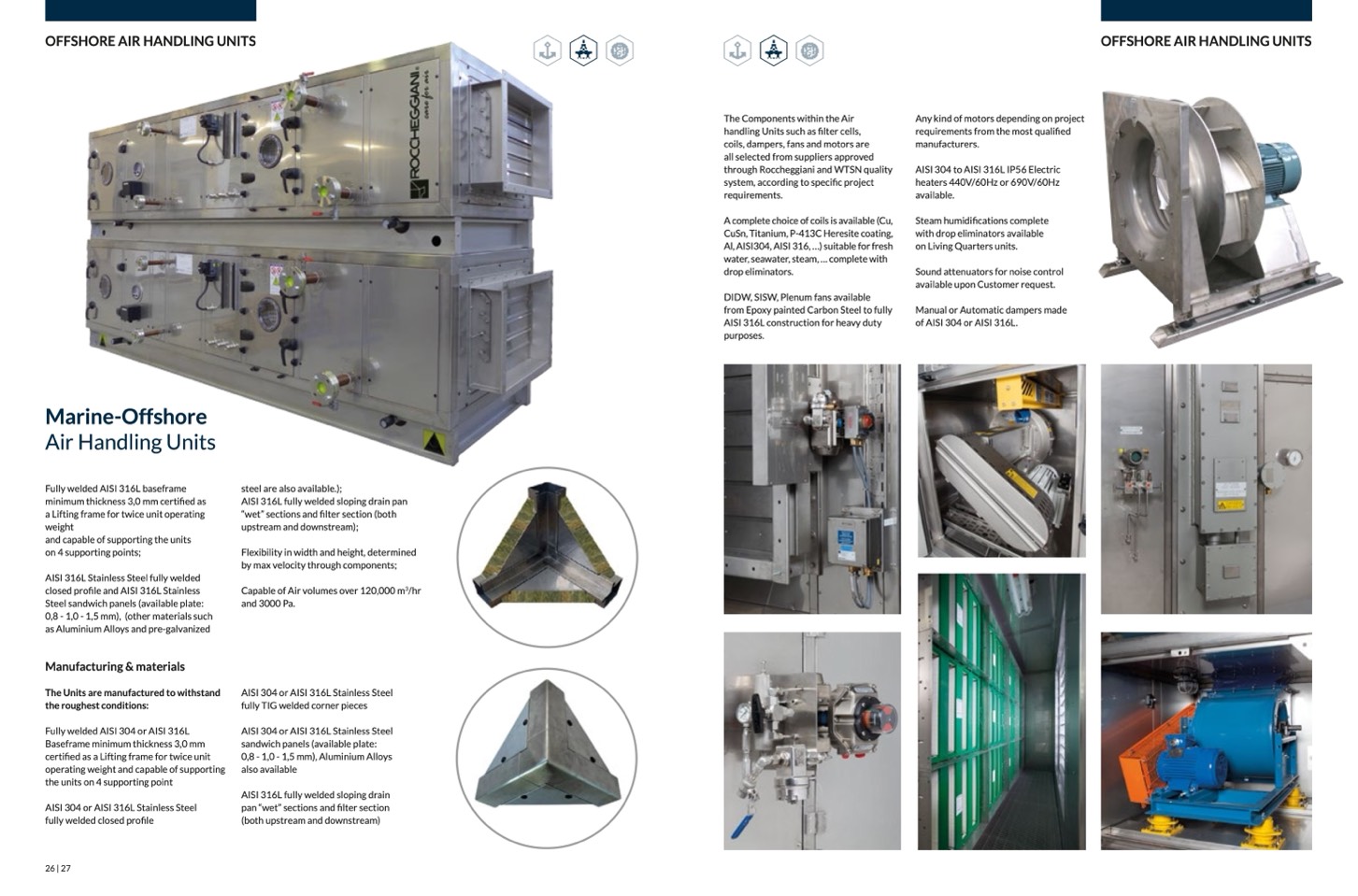

OFFSHORE AIR HANDLING UNITS

OFFSHORE AIR HANDLING UNITS

The Components within the Air

handling Units such as filter cells,

coils, dampers, fans and motors are

all selected from suppliers approved

through Roccheggiani and WTSN quality

system, according to specific project

requirements.

A complete choice of coils is available (Cu,

CuSn, Titanium, P-413C Heresite coating,

Al, AISI304, AISI 316, ...) suitable for fresh

water, seawater, steam, ... complete with

drop eliminators.

DIDW, SISW, Plenum fans available

from Epoxy painted Carbon Steel to fully

AISI 316L construction for heavy duty

purposes.

Any kind of motors depending on project

requirements from the most qualified

manufacturers.

AISI 304 to AISI 316L IP56 Electric

heaters 440V/60Hz or 690V/60Hz

available.

Steam humidifications complete

with drop eliminators available

on Living Quarters units.

Sound attenuators for noise control

available upon Customer request.

Manual or Automatic dampers made

of AISI 304 or AISI 316L.

Marine-Offshore

Air Handling Units

Fully welded AISI 316L baseframe

minimum thickness 3,0 mm certified as

a Lifting frame for twice unit operating

weight

and capable of supporting the units

on 4 supporting points;

AISI 316L Stainless Steel fully welded

closed profile and AISI 316L Stainless

Steel sandwich panels (available plate:

0,8 - 1,0 - 1,5 mm), (other materials such

as Aluminium Alloys and pre-galvanized

Manufacturing & materials

The Units are manufactured to withstand

the roughest conditions:

Fully welded AISI 304 or AISI 316L

Baseframe minimum thickness 3,0 mm

certified as a Lifting frame for twice unit

operating weight and capable of supporting

the units on 4 supporting point

AISI 304 or AISI 316L Stainless Steel

fully welded closed profile

steel are also available.);

AISI 316L fully welded sloping drain pan

“wet” sections and filter section (both

upstream and downstream);

Flexibility in width and height, determined

by max velocity through components;

Capable of Air volumes over 120,000 m

3

/hr

and 3000 Pa.

AISI 304 or AISI 316L Stainless Steel

fully TIG welded corner pieces

AISI 304 or AISI 316L Stainless Steel

sandwich panels (available plate:

0,8 - 1,0 - 1,5 mm), Aluminium Alloys

also available

AISI 316L fully welded sloping drain

pan “wet” sections and filter section

(both upstream and downstream)
