MARINE FANCOIL UNITS

AIR TERMINAL DEVICES

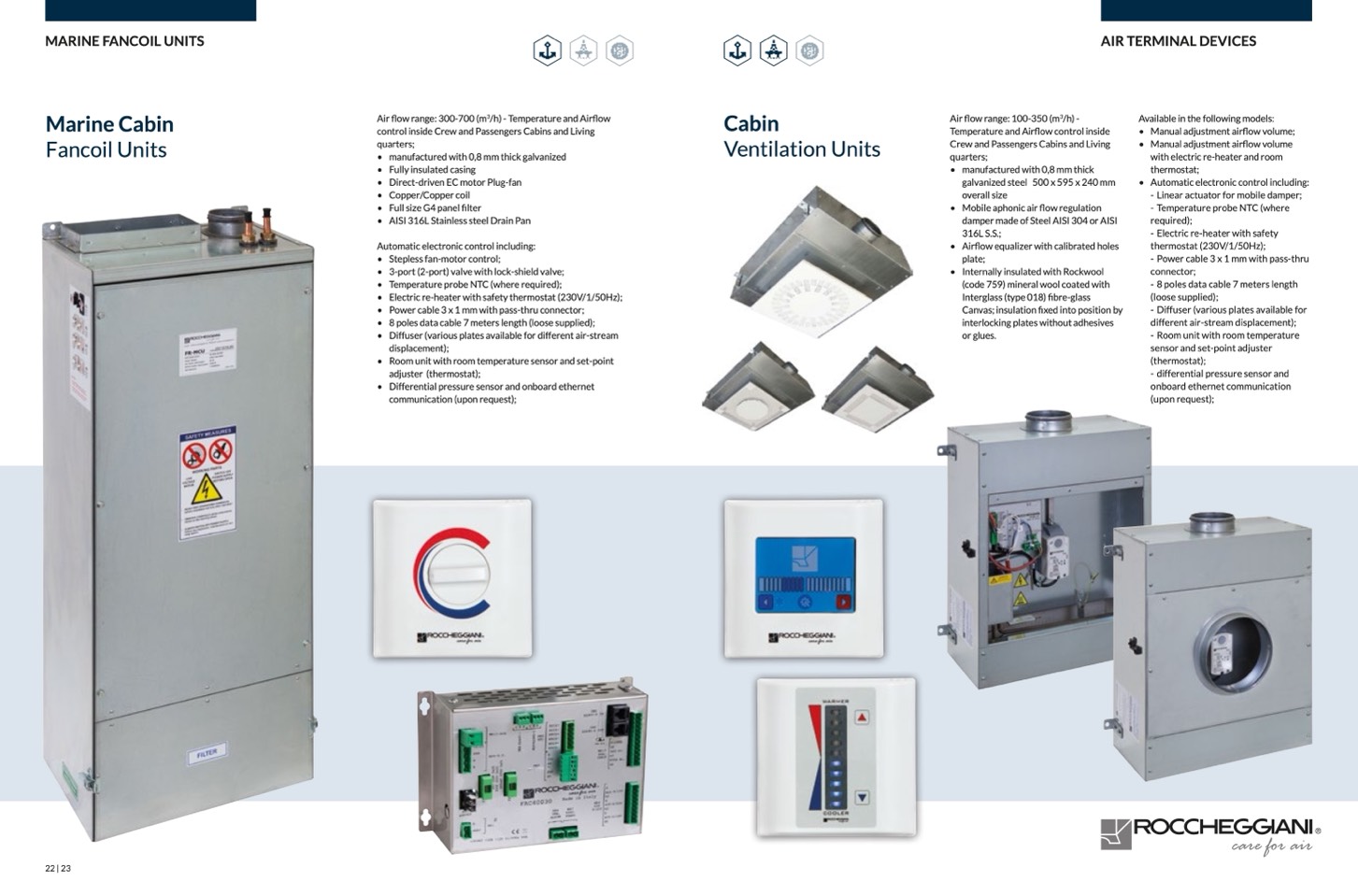

Marine Cabin

Fancoil Units

Air flow range: 300-700 (m

3

/h) - Temperature and Airflow

controlinsideCrewandPassengersCabinsandLiving

quarters;

• manufactured with 0,8 mm thick galvanized

• Fully insulated casing

• Direct-driven EC motor Plug-fan

• Copper/Copper coil

• Full size G4 panel filter

• AISI 316L Stainless steel Drain Pan

Automatic electronic control including:

• Stepless fan-motor control;

• 3-port (2-port) valve with lock-shield valve;

• Temperature probe NTC (where required);

• Electric re-heater with safety thermostat (230V/1/50Hz);

• Power cable 3 x 1 mm with pass-thru connector;

• 8 poles data cable 7 meters length (loose supplied);

• Diffuser (various plates available for different air-stream

displacement);

• Room unit with room temperature sensor and set-point

adjuster (thermostat);

• Differential pressure sensor and onboard ethernet

communication (upon request);

Cabin

Ventilation Units

Air flow range: 100-350 (m

3

/h) -

TemperatureandAirflowcontrolinside

Crew and Passengers Cabins and Living

quarters;

• manufactured with 0,8 mm thick

galvanizedsteel 500x595x240mm

overall size

• Mobile aphonic air flow regulation

damper made of Steel AISI 304 or AISI

316L S.S.;

• Airflow equalizer with calibrated holes

plate;

• Internally insulated with Rockwool

(code 759) mineral wool coated with

Interglass (type 018) fibre-glass

Canvas; insulation fixed into position by

interlocking plates without adhesives

or glues.

Available in the following models:

• Manualadjustmentairflowvolume;

• Manual adjustment airflow volume

with electric re-heater and room

thermostat;

• Automatic electronic control including:

- Linear actuator for mobile damper;

- Temperature probe NTC (where

required);

- Electric re-heater with safety

thermostat (230V/1/50Hz);

- Power cable 3 x 1 mm with pass-thru

connector;

- 8 poles data cable 7 meters length

(loose supplied);

- Diffuser (various plates available for

different air-stream displacement);

- Room unit with room temperature

sensor and set-point adjuster

(thermostat);

- differential pressure sensor and

onboard ethernet communication

(upon request);

22 | 23
