ventilated

facadeS

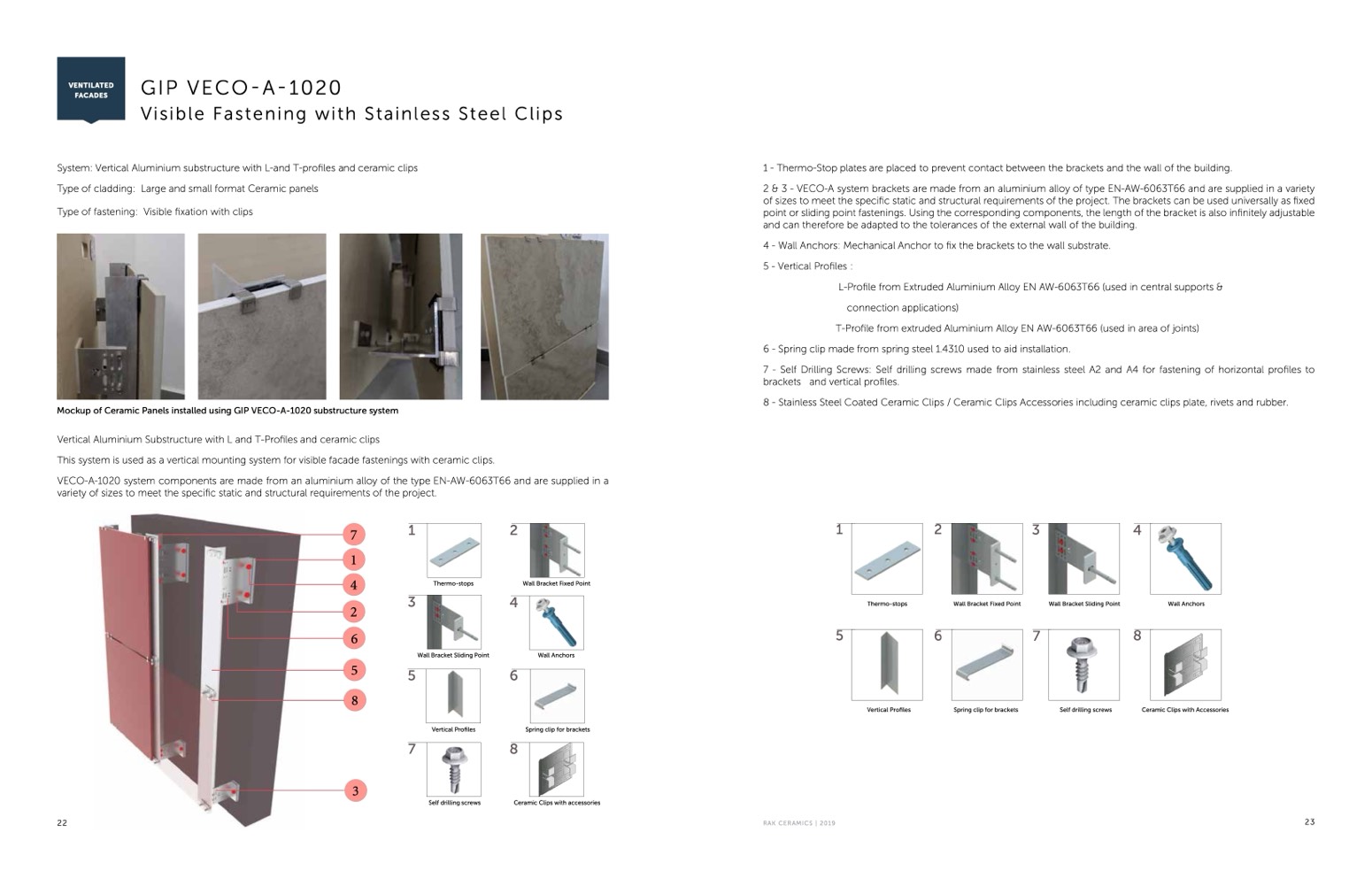

giP VeCO-a-1020

Visible Fastening with Stainless Steel Clips

System: Vertical Aluminium substructure with L-and T-profiles and ceramic clips

Type of cladding: Large and small format Ceramic panels

Type of fastening: Visible fixation with clips

Mockup of Ceramic Panels installed using GIP VECO-A-1020 substructure system

Vertical Aluminium Substructure with L and T-Profiles and ceramic clips

This system is used as a vertical mounting system for visible facade fastenings with ceramic clips.

VECO-A-1020 system components are made from an aluminium alloy of the type EN-AW-6063T66 and are supplied in a

variety of sizes to meet the specific static and structural requirements of the project.

1

2

1

2

3

4

7

1

4

2

6

5

8

3

Thermo-stops

Wall Bracket Fixed Point

Wall Anchors

Spring clip for brackets

3

4

Thermo-stops

Wall Bracket Fixed Point

Wall Bracket Sliding Point

Wall Anchors

Ceramic Clips with Accessories

Wall Bracket Sliding Point

5

6

Vertical Profiles

Spring clip for brackets

Self drilling screws

7

8

Self drilling screws

Ceramic Clips with accessories

1 - Thermo-Stop plates are placed to prevent contact between the brackets and the wall of the building.

2 & 3 - VECO-A system brackets are made from an aluminium alloy of type EN-AW-6063T66 and are supplied in a variety

of sizes to meet the specific static and structural requirements of the project. The brackets can be used universally as fixed

point or sliding point fastenings. Using the corresponding components, the length of the bracket is also infinitely adjustable

and can therefore be adapted to the tolerances of the external wall of the building.

4 - Wall Anchors: Mechanical Anchor to fix the brackets to the wall substrate.

5 - Vertical Profiles :

L-Profile from Extruded Aluminium Alloy EN AW-6063T66 (used in central supports &

connection applications)

T-Profile from extruded Aluminium Alloy EN AW-6063T66 (used in area of joints)

6 - Spring clip made from spring steel 1.4310 used to aid installation.

7 - Self Drilling Screws: Self drilling screws made from stainless steel A2 and A4 for fastening of horizontal profiles to

brackets and vertical profiles.

8 - Stainless Steel Coated Ceramic Clips / Ceramic Clips Accessories including ceramic clips plate, rivets and rubber.
