ventilated

facadeS

Corner Details

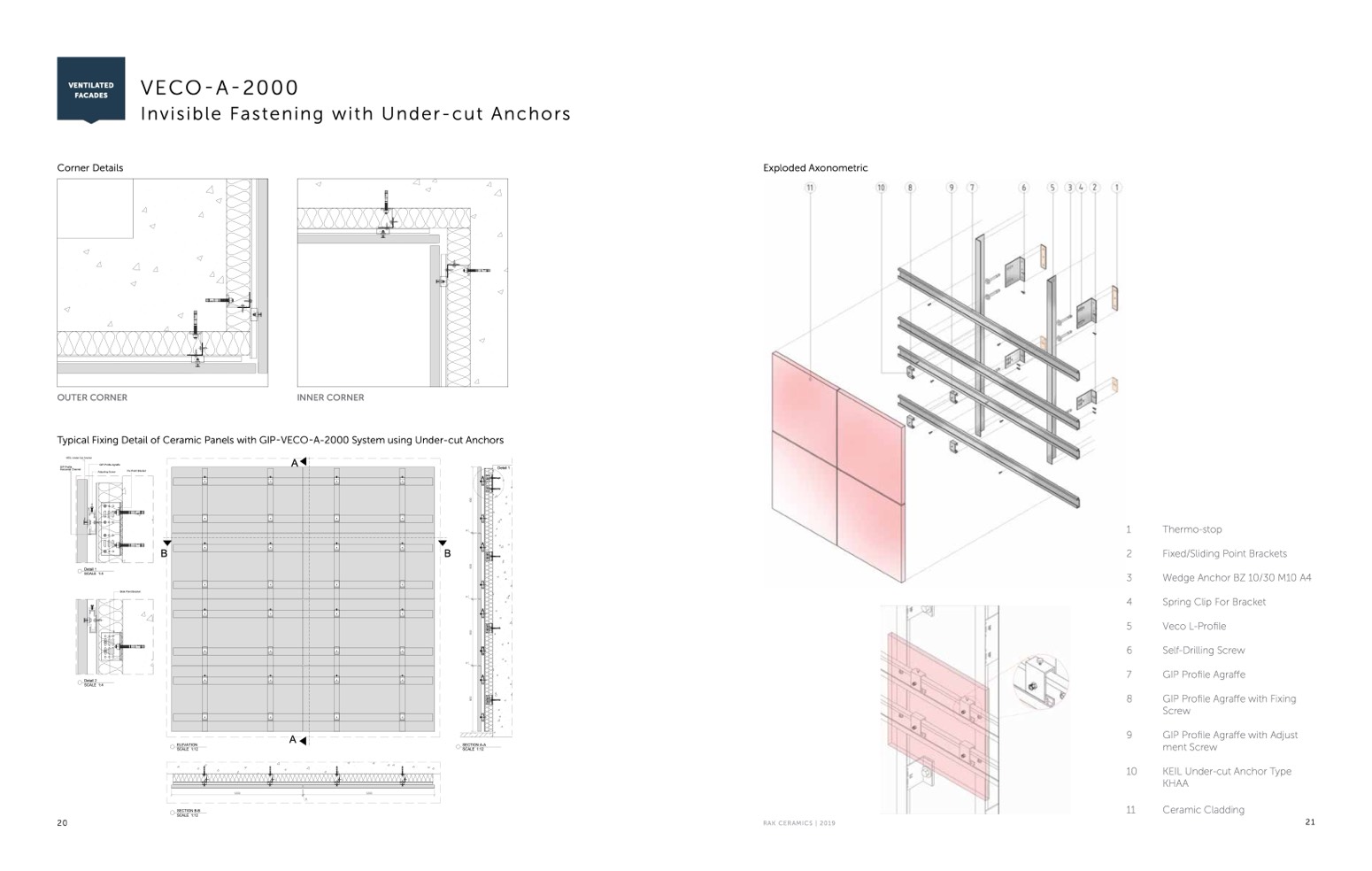

VeCO-a-2000

Invisible Fastening with Under-cut Anchors

OUTER CORNER

INNER CORNER

Typical Fixing Detail of Ceramic Panels with giP-VeCO-a-2000 System using Under-cut Anchors

KEIL Under-Cut Anchor

GIP-Profile

Horizontal Channel

A

B

B

Notes:

20

RAK CERAMICS | 2019

21

Detail 1

SCALE 1:4

Detail 2

SCALE 1:4

Slide Point Bracket

1

Thermo-stop

2

Fixed/Sliding Point Brackets

3

Wedge Anchor BZ 10/30 M10 A4

4

Spring Clip For Bracket

5

Veco L-Profile

6

Self-Drilling Screw

7

GIP Profile Agraffe

8

GIP Profile Agraffe with Fixing

Screw

9

GIP Profile Agraffe with Adjust

ment Screw

10

KEIL Under-cut Anchor Type

KHAA

11

Ceramic Cladding

GIP-Profile Agraffe

Adjusting Screw

Fix Point Bracket

Detail 1

ELEVATION

SCALE 1:12

SECTION B-B

SCALE 1:12

A

SECTION A-A

SCALE 1:12

1200

1200

P.O. Box 336558, Dubai

Motor City, Detroit House

9th Floor, Office 912

Date:

Sheet

Scale

Drawing No:

www.fapinex.com

Tel: +971 4 2773772

Fax: +971 4 3683473

DESIGNED BY:

DRAWN BY:

6

Typical Fixing Detail of

Under-Cut with GIP- VECO

2000 System

Exploded Axonometric

6

6

6

6

0

0

6

0

0

6

0

0

6

0

0
