ventilated

facadeS

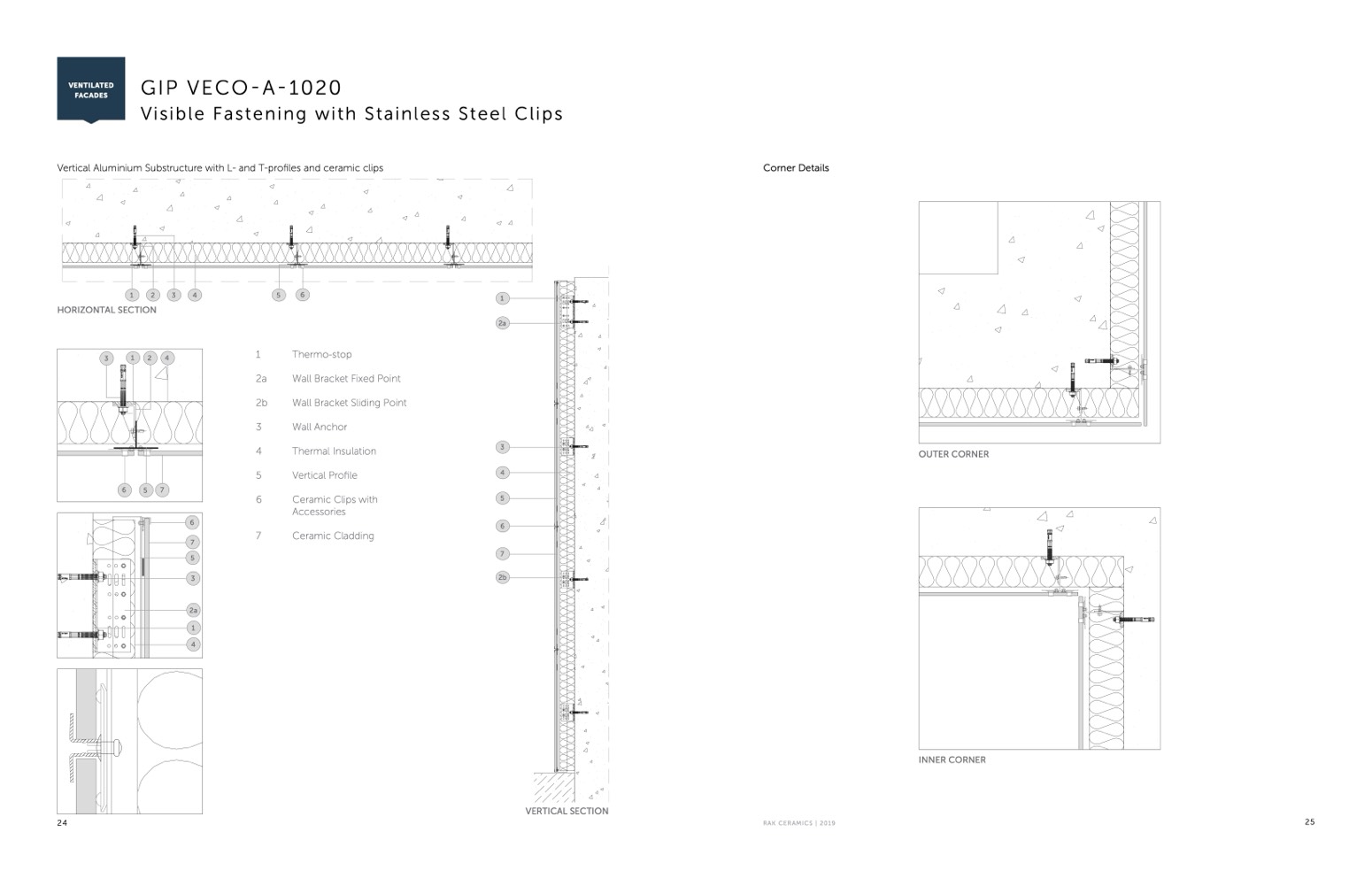

giP VeCO-a-1020

Visible Fastening with Stainless Steel Clips

Vertical Aluminium Substructure with L- and T-profiles and ceramic clips

1

2

3

4

5

6

Corner Details

HORIZONTAL SECTION

3

1

2

4

1

2a

2b

3

4

5

6

7

Thermo-stop

Wall Bracket Fixed Point

Wall Bracket Sliding Point

Wall Anchor

Thermal Insulation

Vertical Profile

Ceramic Clips with

Accessories

Ceramic Cladding

1

2a

3

4

5

6

7

2b

6

5

7

6

7

5

3

2a

1

4

VERTICAL SECTION

OUTER CORNER

INNER CORNER
