VERTICAL SECTION

19

ventilated

facadeS

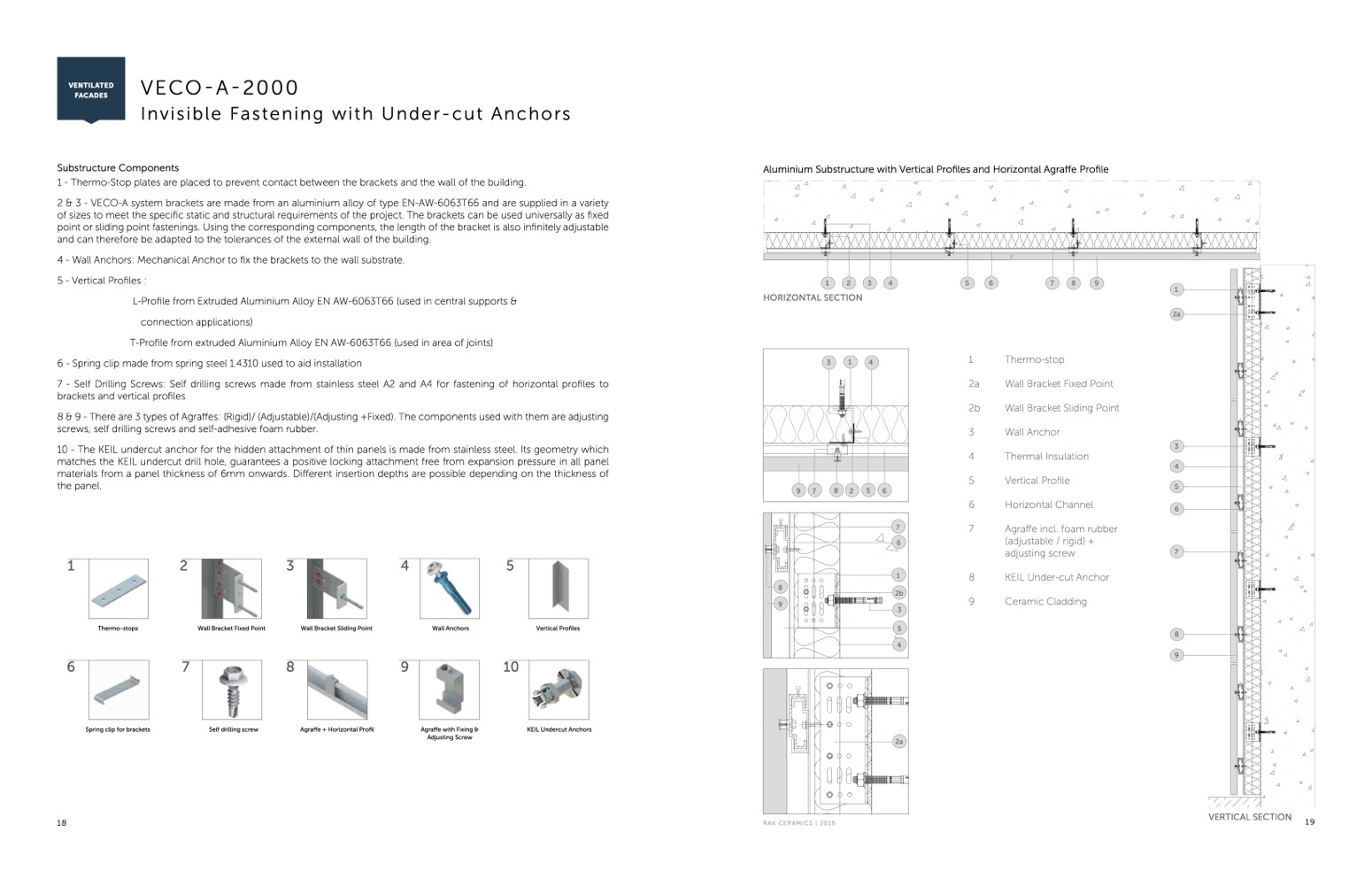

VeCO-a-2000

Invisible Fastening with Under-cut Anchors

Substructure Components

1 - Thermo-Stop plates are placed to prevent contact between the brackets and the wall of the building.

2 & 3 - VECO-A system brackets are made from an aluminium alloy of type EN-AW-6063T66 and are supplied in a variety

of sizes to meet the specific static and structural requirements of the project. The brackets can be used universally as fixed

point or sliding point fastenings. Using the corresponding components, the length of the bracket is also infinitely adjustable

and can therefore be adapted to the tolerances of the external wall of the building.

4 - Wall Anchors: Mechanical Anchor to fix the brackets to the wall substrate.

5 - Vertical Profiles :

L-Profile from Extruded Aluminium Alloy EN AW-6063T66 (used in central supports &

connection applications)

T-Profile from extruded Aluminium Alloy EN AW-6063T66 (used in area of joints)

6 - Spring clip made from spring steel 1.4310 used to aid installation

7 - Self Drilling Screws: Self drilling screws made from stainless steel A2 and A4 for fastening of horizontal profiles to

brackets and vertical profiles

8 & 9 - There are 3 types of Agraffes: (Rigid)/ (Adjustable)/(Adjusting +Fixed). The components used with them are adjusting

screws, self drilling screws and self-adhesive foam rubber.

10 - The KEIL undercut anchor for the hidden attachment of thin panels is made from stainless steel. Its geometry which

matches the KEIL undercut drill hole, guarantees a positive locking attachment free from expansion pressure in all panel

materials from a panel thickness of 6mm onwards. Different insertion depths are possible depending on the thickness of

the panel.

aluminium Substructure with Vertical Profiles and Horizontal agraffe Profile

1

2

3

4

5

6

7

8

9

HORIZONTAL SECTION

1

2a

1

2

3

4

5

7

6

1

2b

3

5

4

2a

7

Agraffe incl. foam rubber

(adjustable / rigid) +

adjusting screw

8

KEIL Under-cut Anchor

9

Ceramic Cladding

3

4

6

7

8

9

Thermo-stops

Wall Bracket Fixed Point

Wall Bracket Sliding Point

Wall Anchors

Vertical Profiles

KEIL Undercut Anchors

6

7

8

9

10

Spring clip for brackets

Self drilling screw

Agraffe + Horizontal Profil

Agraffe with Fixing &

Adjusting Screw

8

9

3

1

4

9

7

8

2

5

6

1

Thermo-stop

2a

Wall Bracket Fixed Point

2b

Wall Bracket Sliding Point

3

Wall Anchor

4

Thermal Insulation

5

Vertical Profile

5

6

Horizontal Channel
