ventilated

facadeS

VeCO-a-2000

Invisible Fastening with Under-cut Anchors

System: This system is used as a horizontal mounting system for invisible facade fastenings in

combination with under-cut anchors.

Type of cladding: Large and small format Ceramic panels

Type of fastening: Invisible fixation with under-cut anchor

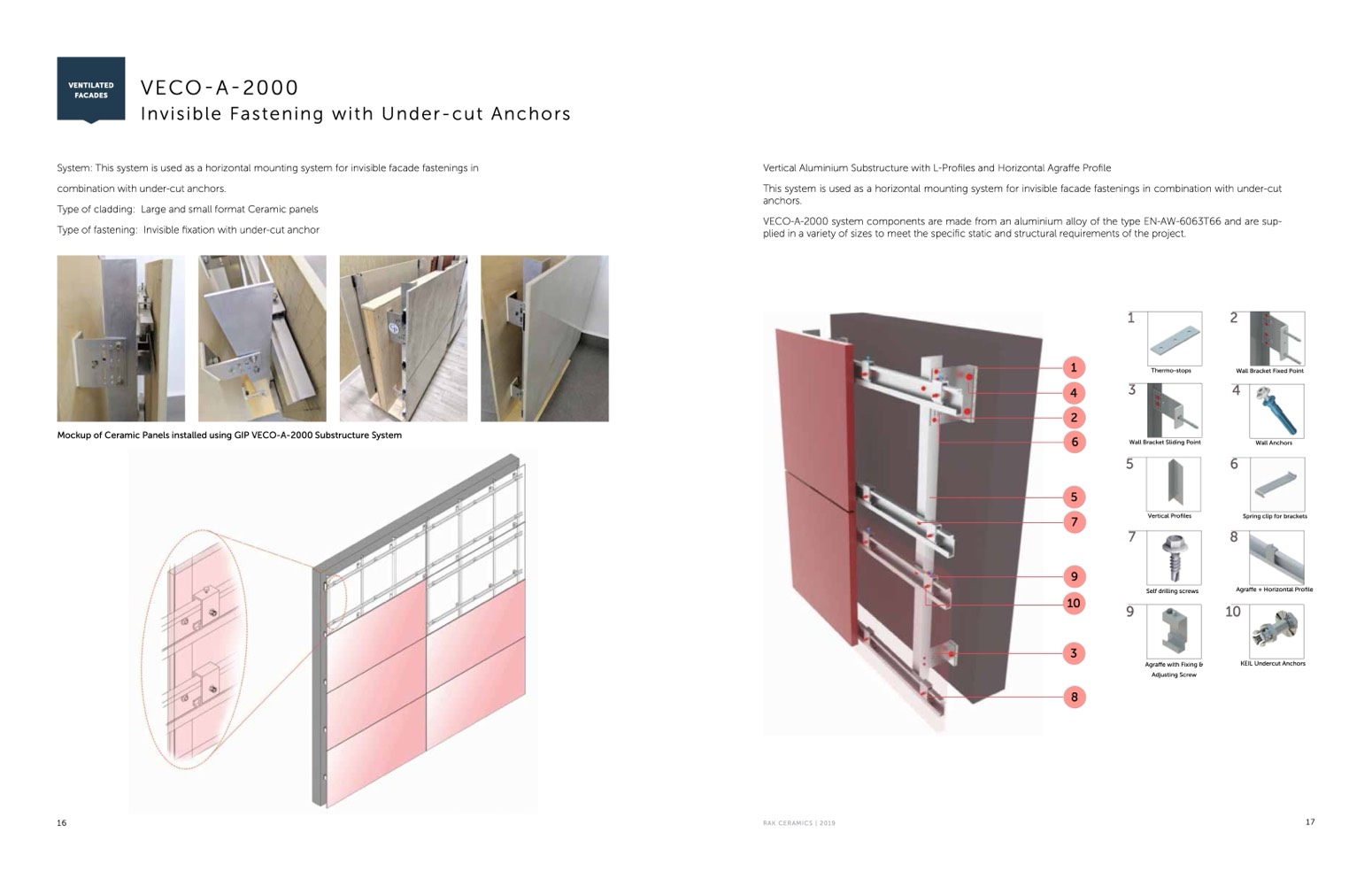

Mockup of Ceramic Panels installed using GIP VECO-A-2000 Substructure System

Vertical Aluminium Substructure with L-Profiles and Horizontal Agraffe Profile

This system is used as a horizontal mounting system for invisible facade fastenings in combination with under-cut

anchors.

VECO-A-2000 system components are made from an aluminium alloy of the type EN-AW-6063T66 and are sup-

plied in a variety of sizes to meet the specific static and structural requirements of the project.

1

2

1

4

2

6

5

7

9

10

3

8

Thermo-stops

Wall Bracket Fixed Point

3

4

Wall Bracket Sliding Point

5

6

Vertical Profiles

7

8

Wall Anchors

Spring clip for brackets

Self drilling screws

Agraffe + Horizontal Profile

9

10

Agraffe with Fixing &

Adjusting Screw

KEIL Undercut Anchors
