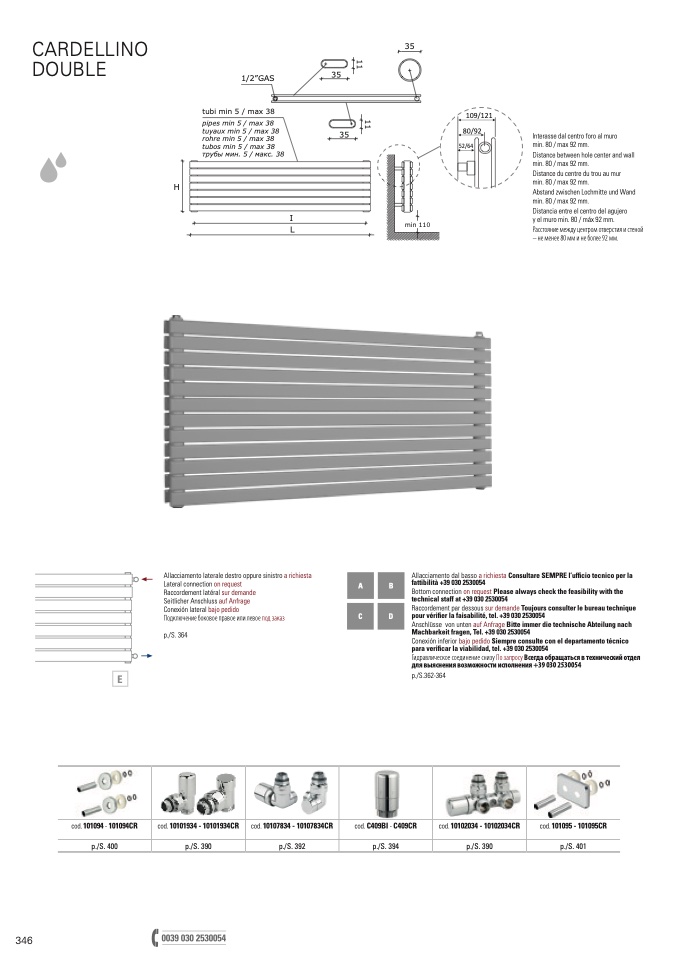

CARDELLINO

DOUBLE

35

1/2”GAS

tubi min 5 / max 38

pipes min 5 / max 38

tuyaux min 5 / max 38

rohre min 5 / max 38

tubos min 5 / max 38

трубы мин. 5 / макс. 38

I

L

35

35

109/121

80/92

Interasse dal centro foro al muro

min.80/max92mm.

Distance between hole center and wall

min.80/max92mm.

Distance du centre du trou au mur

min.80/max92mm.

min 1

min 50 ma

min

52/64

H

Abstand zwischen Lochmitte und Wand

min.80/max92mm.

Distancia entre el centro del agujero

yelmuromin.80/máx92mm.

Расстояние между центром отверстия и стеной

–неменее80мминеболее92мм.

min 110

Allacciamento laterale destro oppure sinistro a richiesta

Lateral connection on request

Raccordement latéral sur demande

Seitlicher Anschluss auf Anfrage

Conexión lateral bajo pedido

Подключение боковое правое или левое под заказ

p./S. 364

Allacciamento dal basso a richiesta Consultare SEMPRE l’ufficio tecnico per la

fattibilità +39 030 2530054

Bottom connection on request Please always check the feasibility with the

technical staff at +39 030 2530054

Raccordement par dessous sur demande Toujours consulter le bureau technique

pour vérifier la faisabilité, tel. +39 030 2530054

Anschlüsse von unten auf Anfrage Bitte immer die technische Abteilung nach

Machbarkeit fragen, Tel. +39 030 2530054

Conexión inferior bajo pedido Siempre consulte con el departamento técnico

para verificar la viabilidad, tel. +39 030 2530054

Гидравлическое соединение снизу По запросу Всегда обращаться в технический отдел

для выяснения возможности исполнения +39 030 2530054

p./S.362-364

A

B

C

D

E

cod. 101094 - 101094CR

cod. 10101934 - 10101934CR

cod. 10107834 - 10107834CR

cod. C409BI - C409CR

cod. 10102034 - 10102034CR

cod. 101095 - 101095CR

p./S. 400

p./S. 390

p./S. 392

p./S. 394

p./S. 390

p./S. 401
