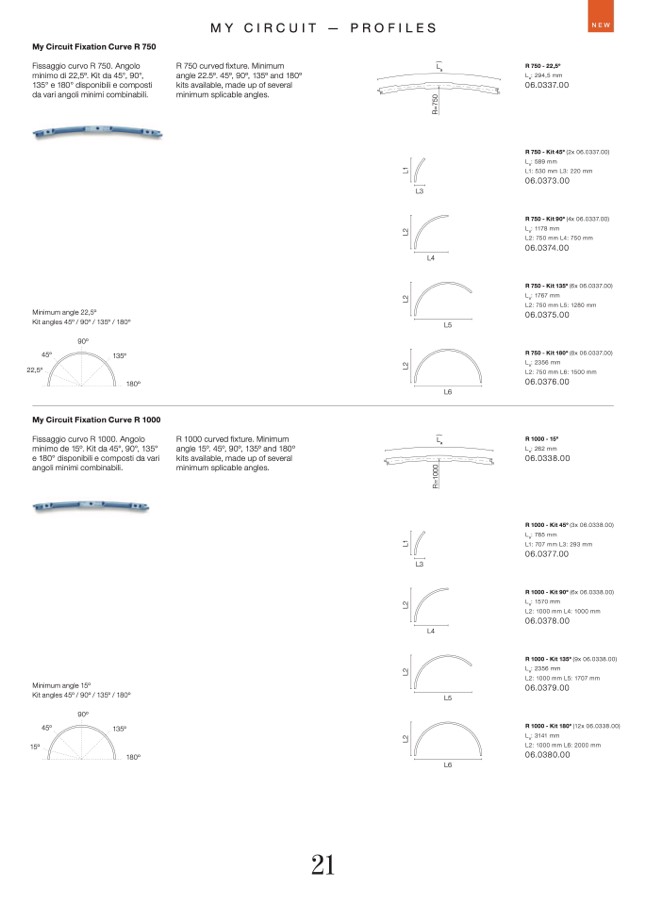

My Circuit Fixation Curve R 750

Fissaggio curvo R 750. Angolo

minimo di 22,5o. Kit da 45°, 90°,

135° e 180° disponibili e composti

da vari angoli minimi combinabili.

R 750 curved fixture. Minimum

angle 22.5o. 45o, 90o, 135o and 180o

kits available, made up of several

minimum splicable angles.

L

a

L2

R 750 - 22,5o

L

a

: 294,5 mm

06.0337.00

R 750 - Kit 45o (2x 06.0337.00)

L

a

: 589 mm

L1: 530 mm L3: 220 mm

06.0373.00

R 750 - Kit 90o (4x 06.0337.00)

L

a

: 1178 mm

L2: 750 mm L4: 750 mm

06.0374.00

R 750 - Kit 135o (6x 06.0337.00)

L

a

: 1767 mm

L2: 750 mm L5: 1280 mm

06.0375.00

R 750 - Kit 180o (8x 06.0337.00)

L

a

: 2356 mm

L2: 750 mm L6: 1500 mm

06.0376.00

R 1000 - 15o

L

a

: 262 mm

06.0338.00

R 1000 - Kit 45o (3x 06.0338.00)

L

a

: 785 mm

L1: 707 mm L3: 293 mm

06.0377.00

R 1000 - Kit 90o (6x 06.0338.00)

L

a

: 1570 mm

L2: 1000 mm L4: 1000 mm

06.0378.00

R 1000 - Kit 135o (9x 06.0338.00)

L

a

: 2356 mm

L2: 1000 mm L5: 1707 mm

06.0379.00

R 1000 - Kit 180o (12x 06.0338.00)

L

a

: 3141 mm

L2: 1000 mm L6: 2000 mm

06.0380.00

Minimum angle 22,5o

Kit angles 45o / 90o / 135o / 180o

L5

90o

22,5o

L5

L5

L5

45o

135o

My Circuit Fixation Curve R 1000

Fissaggio curvo R 1000. Angolo

minimo de 15o. Kit da 45°, 90°, 135°

e 180° disponibili e composti da vari

angoli minimi combinabili.

R 1000 curved fixture. Minimum

angle 15o. 45o, 90o, 135o and 180o

kits available, made up of several

minimum splicable angles.

L

a

Minimum angle 15o

Kit angles 45o / 90o / 135o / 180o

L5

15o

45o

135o

90o

L5

L5

L5

180o

L6

L6

L6

L6

L2

180o

L6

L6

L6

L6
