NEW

MY CIRCUIT — PROFILES

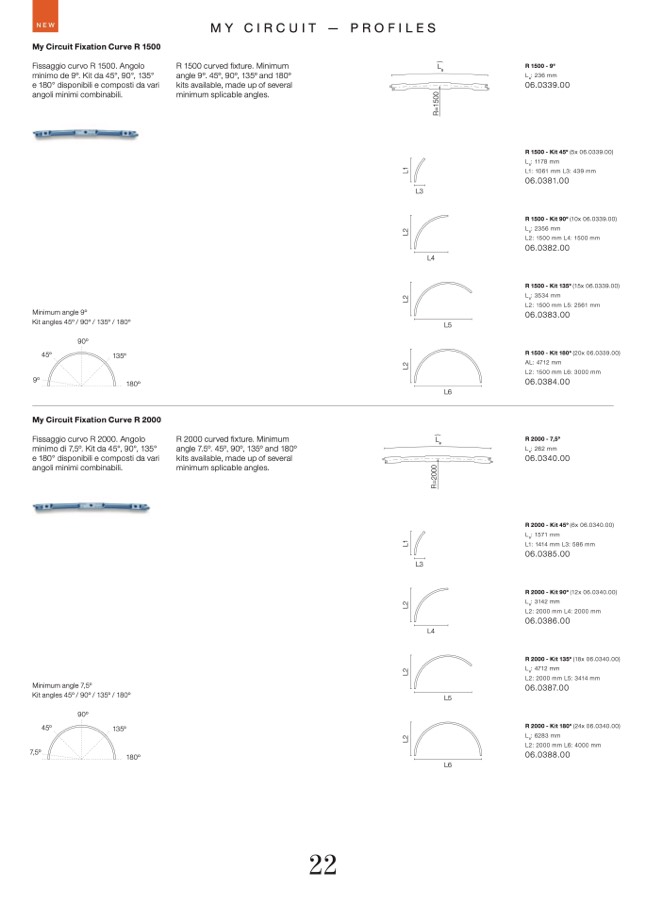

My Circuit Fixation Curve R 1500

Fissaggio curvo R 1500. Angolo

minimo de 9o. Kit da 45°, 90°, 135°

e 180° disponibili e composti da vari

angoli minimi combinabili.

R 1500 curved fixture. Minimum

angle 9o. 45o, 90o, 135o and 180o

kits available, made up of several

minimum splicable angles.

L

a

L2

R 1500 - 9o

L

a

: 236 mm

06.0339.00

R 1500 - Kit 45o (5x 06.0339.00)

L

a

: 1178 mm

L1: 1061 mm L3: 439 mm

06.0381.00

R 1500 - Kit 90o (10x 06.0339.00)

L

a

: 2356 mm

L2: 1500 mm L4: 1500 mm

06.0382.00

R 1500 - Kit 135o (15x 06.0339.00)

L

a

: 3534 mm

L2: 1500 mm L5: 2561 mm

06.0383.00

R 1500 - Kit 180o (20x 06.0339.00)

AL: 4712 mm

L2: 1500 mm L6: 3000 mm

06.0384.00

R 2000 - 7,5o

L

a

: 262 mm

06.0340.00

R 2000 - Kit 45o (6x 06.0340.00)

L

a

: 1571 mm

L1: 1414 mm L3: 586 mm

06.0385.00

R 2000 - Kit 90o (12x 06.0340.00)

L

a

: 3142 mm

L2: 2000 mm L4: 2000 mm

06.0386.00

R 2000 - Kit 135o (18x 06.0340.00)

L

a

: 4712 mm

L2: 2000 mm L5: 3414 mm

06.0387.00

R 2000 - Kit 180o (24x 06.0340.00)

L

a

: 6283 mm

L2: 2000 mm L6: 4000 mm

06.0388.00

Minimum angle 9o

Kit angles 45o / 90o / 135o / 180o

L5

9o

180o

45o

135o

90o

L5

L5

L5

My Circuit Fixation Curve R 2000

Fissaggio curvo R 2000. Angolo

minimo di 7,5o. Kit da 45°, 90°, 135°

e 180° disponibili e composti da vari

angoli minimi combinabili.

R 2000 curved fixture. Minimum

angle 7.5o. 45o, 90o, 135o and 180o

kits available, made up of several

minimum splicable angles.

L6

L6

L6

L6

L2

Minimum angle 7,5o

Kit angles 45o / 90o / 135o / 180o

L5

7,5o

180o

45o

135o

90o

L5

L5

L5

22
