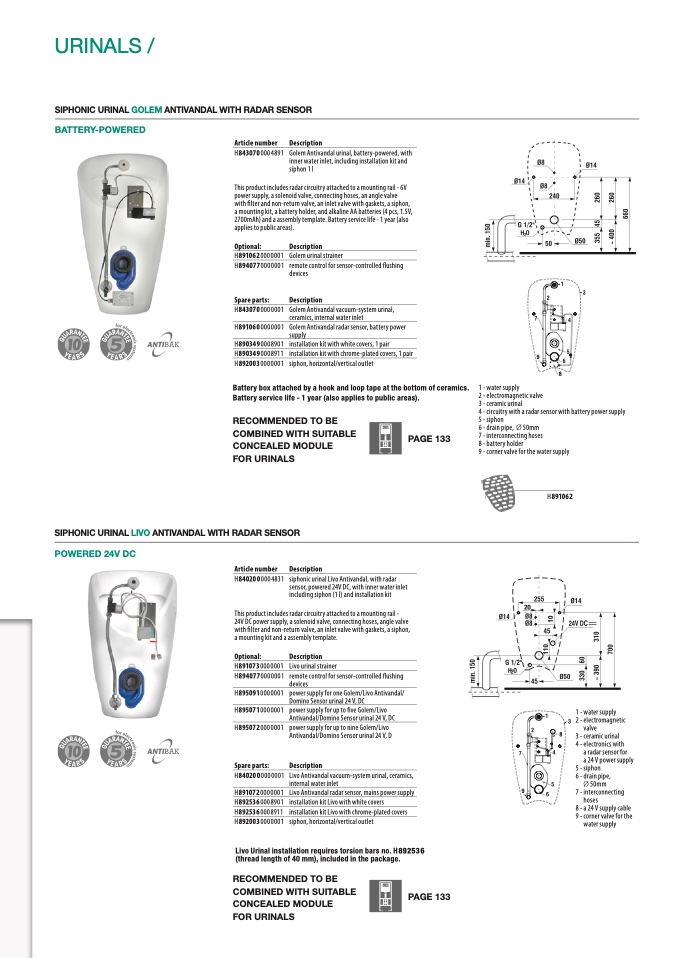

URINALS /
SIPHONIC URINAL GOLEM ANTIVANDAL WITH RADAR SENSOR
BATTERY-POWERED
Article number
Description
H8430700004891 Golem Antivandal urinal, battery-powered, with
inner water inlet, including installation kit and
siphon 1 l
This product includes radar circuitry attached to a mounting rail - 6V
power supply, a solenoid valve, connecting hoses, an angle valve
with filter and non-return valve, an inlet valve with gaskets, a siphon,
a mounting kit, a battery holder, and alkaline AA batteries (4 pcs, 1.5V,
2700mAh) and a assembly template. Battery service life - 1 year (also
applies to public areas).
RECOMMENDED TO BE
COMBINED WITH SUITABLE
CONCEALED MODULE
FOR URINALS
SIPHONIC URINAL LIVO ANTIVANDAL WITH RADAR SENSOR
POWERED 24V DC
Article number
Description
H8402000004831 siphonic urinal Livo Antivandal, with radar
sensor, powered 24V DC, with inner water inlet
including siphon (1 l) and installation kit
PAGE 133
Optional:
H8910620000001
H8940770000001
Spare parts:
H8430700000001
H8910600000001
H8903490008901
H8903490008911
H8920030000001
Description
Golem urinal strainer
remote control for sensor-controlled flushing
devices
Description
Golem Antivandal vacuum-system urinal,
ceramics, internal water inlet
Golem Antivandal radar sensor, battery power
supply
installation kit with white covers, 1 pair
installation kit with chrome-plated covers, 1 pair
siphon, horizontal/vertical outlet
9
8
Battery box attached by a hook and loop tape at the bottom of ceramics.
Battery service life - 1 year (also applies to public areas).
1 - water supply
2 - electromagnetic valve
3 - ceramic urinal
4 - circuitry with a radar sensor with battery power supply
5 - siphon
6 - drain pipe, Ø 50mm
7 - interconnecting hoses
8 - battery holder
9 - corner valve for the water supply
This product includes radar circuitry attached to a mounting rail -
24V DC power supply, a solenoid valve, connecting hoses, angle valve
with filter and non-return valve, an inlet valve with gaskets, a siphon,
a mounting kit and a assembly template.
H891062
20
1
1
0
1
0
Optional:
H8910730000001
H8940770000001
H8950910000001
H8950710000001
H8950720000001
Spare parts:
H8402000000001
H8910720000001
H8925360008901
H8925360008911
H8920030000001
Description
Livo urinal strainer
remote control for sensor-controlled flushing
devices
power supply for one Golem/Livo Antivandal/
Domino Sensor urinal 24 V, DC
power supply for up to five Golem/Livo
Antivandal/Domino Sensor urinal 24 V, DC
power supply for up to nine Golem/Livo
Antivandal/Domino Sensor urinal 24 V, D
Description
1 -
2 -
water supply
electromagnetic
valve
ceramic urinal
electronics with
a radar sensor for
a 24 V power supply
siphon
drain pipe,
Ø 50mm
interconnecting
hoses
a 24 V supply cable
corner valve for the
water supply
Livo Antivandal vacuum-system urinal, ceramics,
internal water inlet
9
Livo Antivandal radar sensor, mains power supply
installation kit Livo with white covers
installation kit Livo with chrome-plated covers
siphon, horizontal/vertical outlet
8
3-
4 -
5 -
6-
7-
8 -
9 -
Livo Urinal installation requires torsion bars no. H892536
(thread length of 40 mm), included in the package.
RECOMMENDED TO BE
COMBINED WITH SUITABLE
CONCEALED MODULE
FOR URINALS
PAGE 133
