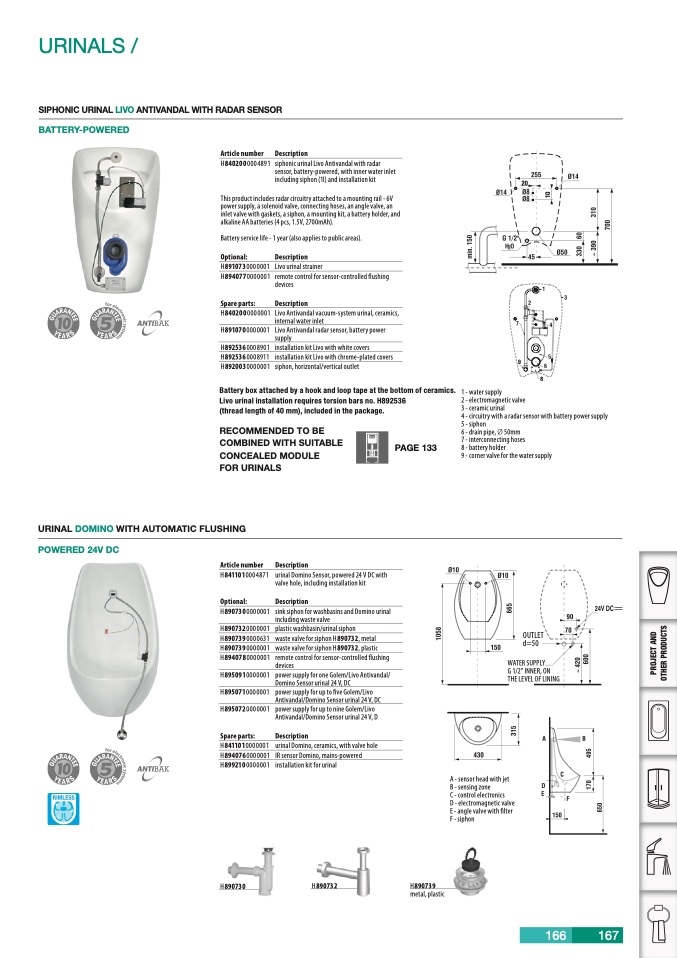

URINALS /

SIPHONIC URINAL LIVO ANTIVANDAL WITH RADAR SENSOR

BATTERY-POWERED

Article number Description

H8402000004891 siphonic urinal Livo Antivandal with radar

sensor, battery-powered, with inner water inlet

including siphon (1l) and installation kit

This product includes radar circuitry attached to a mounting rail - 6V

power supply, a solenoid valve, connecting hoses, an angle valve, an

inlet valve with gaskets, a siphon, a mounting kit, a battery holder, and

alkaline AA batteries (4 pcs, 1.5V, 2700mAh).

Battery service life - 1 year (also applies to public areas).

20

URINAL DOMINO WITH AUTOMATIC FLUSHING

POWERED 24V DC

Article number

H8411010004871

Optional:

H8907300000001

H8907320000001

H8907390000631

H8907390000001

H8940780000001

H8950910000001

H8950710000001

H8950720000001

Spare parts:

H8411010000001

H8940760000001

H8992100000001

Description

urinal Domino Sensor, powered 24 V DC with

valve hole, including installation kit

Description

sink siphon for washbasins and Domino urinal

including waste valve

plastic washbasin/urinal siphon

waste valve for siphon H890732, metal

waste valve for siphon H890732, plastic

remote control for sensor-controlled flushing

devices

power supply for one Golem/Livo Antivandal/

Domino Sensor urinal 24 V, DC

power supply for up to five Golem/Livo

Antivandal/Domino Sensor urinal 24 V, DC

power supply for up to nine Golem/Livo

Antivandal/Domino Sensor urinal 24 V, D

Description

urinal Domino, ceramics, with valve hole

IR sensor Domino, mains-powered

installation kit for urinal

OUTLET

d=50

WATER SUPPLY

G 1/2” INNER, ON

THE LEVEL OF LINING

sensor head with jet

sensing zone

control electronics

electromagnetic valve

angle valve with filter

siphon

Optional:

H8910730000001

H8940770000001

Spare parts:

H8402000000001

H8910700000001

H8925360008901

H8925360008911

H8920030000001

Description

Livo urinal strainer

remote control for sensor-controlled flushing

devices

Description

Livo Antivandal vacuum-system urinal, ceramics,

internal water inlet

Livo Antivandal radar sensor, battery power

supply

installation kit Livo with white covers

installation kit Livo with chrome-plated covers

siphon, horizontal/vertical outlet

9

8

Battery box attached by a hook and loop tape at the bottom of ceramics.

Livo urinal installation requires torsion bars no. H892536

(thread length of 40 mm), included in the package.

1 - water supply

2 - electromagnetic valve

3 - ceramic urinal

4 - circuitry with a radar sensor with battery power supply

5 - siphon

6 - drain pipe, Ø 50mm

7 - interconnecting hoses

8 - battery holder

9 - corner valve for the water supply

RECOMMENDED TO BE

COMBINED WITH SUITABLE

CONCEALED MODULE

FOR URINALS

PAGE 133

P

R

O

J

E

C

T

A

N

D

O

T

H

E

R

P

R

O

D

U

C

T

S

1

0

H890730

H890732

H890739

metal, plastic

A -

B -

C -

D -

E -

F -
