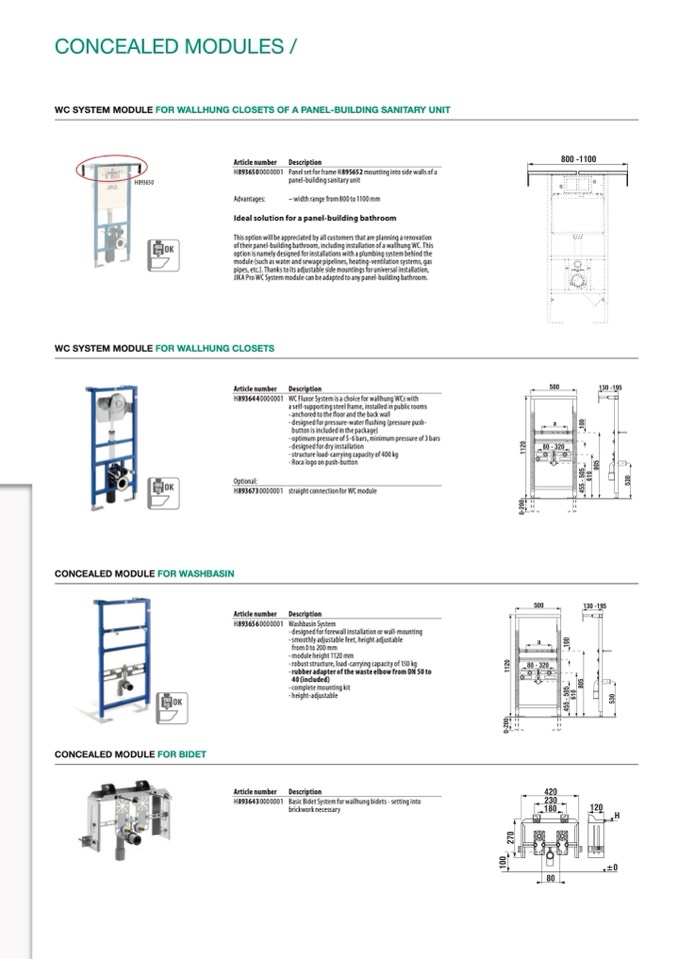

CONCEALED MODULES /

WC SYSTEM MODULE FOR WALLHUNG CLOSETS OF A PANEL-BUILDING SANITARY UNIT

H 89365 0

Article number

H8936500000001

Advantages:

Description

Panel set for frame H895652 mounting into side walls of a

panel-building sanitary unit

– width range from 800 to 1100 mm

WC SYSTEM MODULE FOR WALLHUNG CLOSETS

Article number

H8936440000001

Optional:

H8936730000001

CONCEALED MODULE FOR WASHBASIN

Article number

Description

WC Fluxor System is a choice for wallhung WCs with

a self-supporting steel frame, installed in public rooms

- anchored to the floor and the back wall

- designed for pressure-water flushing (pressure push-

button is included in the package)

- optimum pressure of 5-6 bars, minimum pressure of 3 bars

- designed for dry installation

- structure load-carrying capacity of 400 kg

- Roca logo on push-button

straight connection for WC module

Description

Washbasin System

- designed for forewall installation or wall-mounting

- smoothly adjustable feet, height adjustable

from 0 to 200 mm

- module height 1120 mm

- robust structure, load-carrying capacity of 150 kg

- rubber adapter of the waste elbow from DN 50 to

40 (included)

- complete mounting kit

- height-adjustable

Description

Basic Bidet System for wallhung bidets - setting into

brickwork necessary

CONCEALED MODULE FOR BIDET

Ideal solution for a panel-building bathroom

This option will be appreciated by all customers that are planning a renovation

of their panel-building bathroom, including installation of a wallhung WC. This

option is namely designed for installations with a plumbing system behind the

module (such as water and sewage pipelines, heating-ventilation systems, gas

pipes, etc.). Thanks to its adjustable side mountings for universal installation,

JIKA Pro WC System module can be adapted to any panel-building bathroom.

H8936560000001

Article number

H8936430000001
