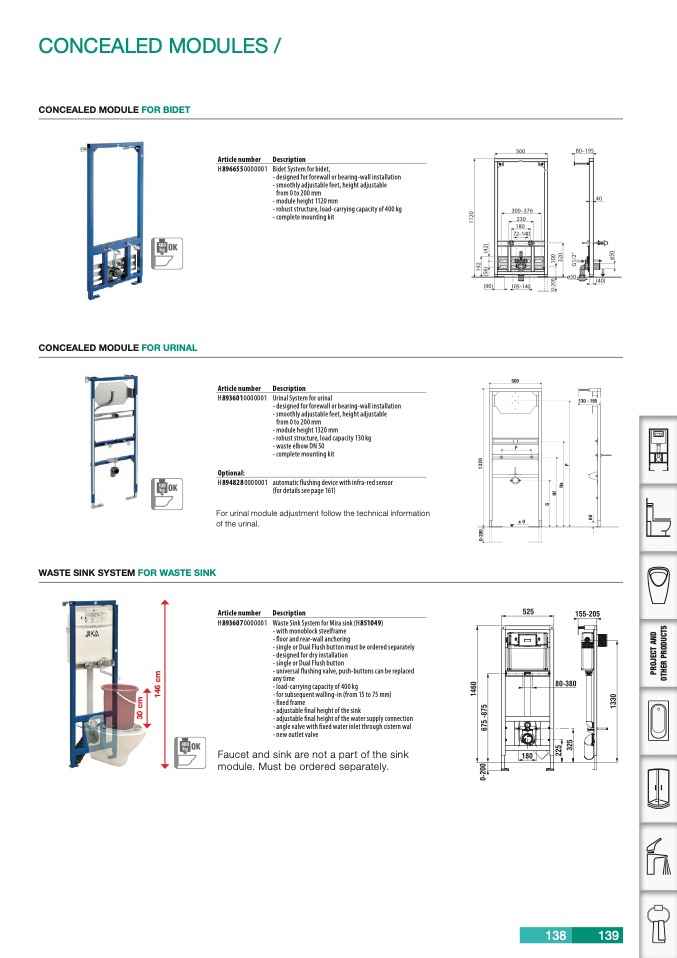

CONCEALED MODULES /

CONCEALED MODULE FOR BIDET

CONCEALED MODULE FOR URINAL

WASTE SINK SYSTEM FOR WASTE SINK

Article number

H8966550000001

Description

Bidet System for bidet,

- designed for forewall or bearing-wall installation

- smoothly adjustable feet, height adjustable

from 0 to 200 mm

- module height 1120 mm

- robust structure, load-carrying capacity of 400 kg

- complete mounting kit

Article number

H8936010000001

Optional:

H8948280000001

Description

Urinal System for urinal

- designed for forewall or bearing-wall installation

- smoothly adjustable feet, height adjustable

from 0 to 200 mm

- module height 1320 mm

- robust structure, load capacity 130 kg

- waste elbow DN 50

- complete mounting kit

automatic flushing device with infra-red sensor

(for details see page 161)

For urinal module adjustment follow the technical information

of the urinal.

Article number

H8936070000001

Description

Waste Sink System for Mira sink (H851049)

- with monoblock steelframe

- floor and rear-wall anchoring

- single or Dual Flush button must be ordered separately

- designed for dry installation

- single or Dual Flush button

- universal flushing valve, push-buttons can be replaced

any time

- load-carrying capacity of 400 kg

- for subsequent walling-in (from 15 to 75 mm)

- fixed frame

- adjustable final height of the sink

- adjustable final height of the water supply connection

- angle valve with fixed water inlet through cistern wal

- new outlet valve

3

0

c

m

1

4

6

c

m

P

R

O

J

E

C

T

A

N

D

O

T

H

E

R

P

R

O

D

U

C

T

S

Faucet and sink are not a part of the sink

module. Must be ordered separately.
