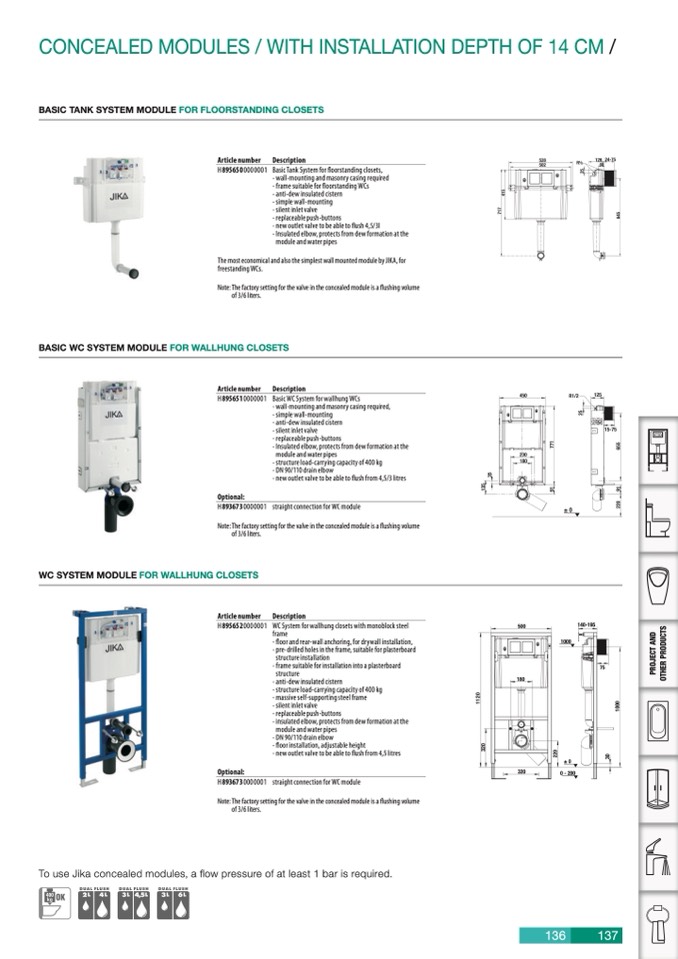

CONCEALED MODULES / WITH INSTALLATION DEPTH OF 14 CM /

BASIC TANK SYSTEM MODULE FOR FLOORSTANDING CLOSETS

WC SYSTEM MODULE FOR WALLHUNG CLOSETS

Article number

H8956520000001

Optional:

H8936730000001

Description

WC System for wallhung closets with monoblock steel

500

frame

- floor and rear-wall anchoring, for drywall installation,

- pre-drilled holes in the frame, suitable for plasterboard

140-195

To use Jika concealed modules, a flow pressure of at least 1 bar is required.

Article number

H8956500000001

Description

Basic Tank System for floorstanding closets,

- wall-mounting and masonry casing required

- frame suitable for floorstanding WCs

- anti-dew insulated cistern

- simple wall-mounting

- silent inlet valve

- replaceable push-buttons

- new outlet valve to be able to flush 4,5/3l

- Insulated elbow, protects from dew formation at the

module and water pipes

The most economical and also the simplest wall mounted module by JIKA, for

freestanding WCs.

Note: The factory setting for the valve in the concealed module is a flushing volume

of 3/6 liters.

BASIC WC SYSTEM MODULE FOR WALLHUNG CLOSETS

Article number

H8956510000001

Optional:

H8936730000001

Description

Basic WC System for wallhung WCs

- wall-mounting and masonry casing required,

- simple wall-mounting

- anti-dew insulated cistern

- silent inlet valve

- replaceable push-buttons

- Insulated elbow, protects from dew formation at the

module and water pipes

- structure load-carrying capacity of 400 kg

- DN 90/110 drain elbow

- new outlet valve to be able to flush from 4,5/3 litres

straight connection for WC module

Note: The factory setting for the valve in the concealed module is a flushing volume

of 3/6 liters.

structure installation

- frame suitable for installation into a plasterboard

structure

- anti-dew insulated cistern

- structure load-carrying capacity of 400 kg

- massive self-supporting steel frame

- silent inlet valve

- replaceable push-buttons

- insulated elbow, protects from dew formation at the

module and water pipes

- DN 90/110 drain elbow

- floor installation, adjustable height

- new outlet valve to be able to flush from 4,5 litres

straight connection for WC module
