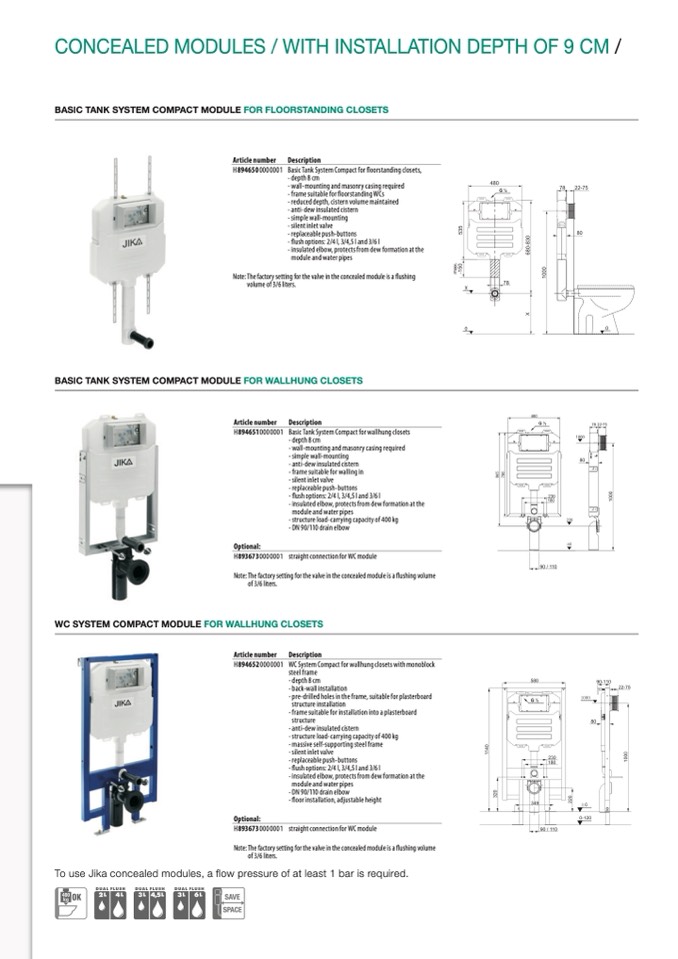

CONCEALED MODULES / WITH INSTALLATION DEPTH OF 9 CM /

BASIC TANK SYSTEM COMPACT MODULE FOR FLOORSTANDING CLOSETS

Article number

H8946500000001

Description

Basic Tank System Compact for floorstanding closets,

- depth 8 cm

- wall-mounting and masonry casing required

- frame suitable for floorstanding WCs

- reduced depth, cistern volume maintained

- anti-dew insulated cistern

- simple wall-mounting

- silent inlet valve

- replaceable push-buttons

- flush options: 2/4 l, 3/4,5 l and 3/6 l

- insulated elbow, protects from dew formation at the

module and water pipes

Note: The factory setting for the valve in the concealed module is a flushing

volume of 3/6 liters.

BASIC TANK SYSTEM COMPACT MODULE FOR WALLHUNG CLOSETS

Article number

H8946510000001

Optional:

H8936730000001

Description

Basic Tank System Compact for wallhung closets

- depth 8 cm

- wall-mounting and masonry casing required

- simple wall-mounting

- anti-dew insulated cistern

- frame suitable for walling in

- silent inlet valve

- replaceable push-buttons

- flush options: 2/4 l, 3/4,5 l and 3/6 l

- insulated elbow, protects from dew formation at the

module and water pipes

- structure load-carrying capacity of 400 kg

- DN 90/110 drain elbow

straight connection for WC module

Note: The factory setting for the valve in the concealed module is a flushing volume

of 3/6 liters.

WC SYSTEM COMPACT MODULE FOR WALLHUNG CLOSETS

To use Jika concealed modules, a flow pressure of at least 1 bar is required.

Article number

H8946520000001

Description

WC System Compact for wallhung closets with monoblock

steel frame

- depth 8 cm

- back-wall installation

- pre-drilled holes in the frame, suitable for plasterboard

structure installation

- frame suitable for installation into a plasterboard

structure

- anti-dew insulated cistern

- structure load-carrying capacity of 400 kg

- massive self-supporting steel frame

- silent inlet valve

- replaceable push-buttons

- flush options: 2/4 l, 3/4,5 l and 3/6 l

- insulated elbow, protects from dew formation at the

module and water pipes

- DN 90/110 drain elbow

- floor installation, adjustable height

straight connection for WC module

Optional:

H8936730000001

Note: The factory setting for the valve in the concealed module is a flushing volume

of 3/6 liters.
