Technical Datasheet

ASW

12K-LT-G2 Pro

13K-LT-G2 Pro

15K-LT-G2 Pro

17K-LT-G2 Pro

20K-LT-G2 Pro

(

)

(

)

Max. PV array power

18000 Wp STC

19500Wp STC

22500 Wp STC

25500 Wp STC

30000 Wp STC

Models:

ASW12K-LT-G2 Pro

ASW13K-LT-G2 Pro

ASW15K-LT-G2 Pro

ASW17K-LT-G2 Pro

ASW20K-LT-G2 Pro

Max. input voltage

1100 V

MPP voltage range / rated input voltage

150 V to 1000 V / 630 V

Min. input voltage

125 V

Initial. feed-in voltage

180 V

Max. operating input current

32 A / 20 A

32 A / 32 A

Max. short circuit current

48 A / 30 A

48 A / 30A

48 A / 30 A

48 A / 48 A

No. of independent MPPT inputs /

strings per MPPT input

2 / A:2;B:1

2/A:2;B:1

2 / A:2;B:2

Rated active power

12000 W

13000 W

15000 W

17000 W

20000 W

Rated apparent power

12000 VA

13000 VA

15000 VA

17000 VA

20000 VA

Max. apparent power

13200VA

3&4

14300VA 3

16500VA

3&4

18700VA

3&4

22000VA

3&4

AC nominal voltage

220 V / 380 V

230 V / 400 V

240 V / 415 V

Easy-to-install

• Quick & easy-to-install with basic

tools

• Quick setup and commissioning

with Solplanet apps

• Compact wall mount design

Reliable

User-friendly

• International quality standards

• 150 % PV array oversizing for higher

yields

• IP66 rated design for outdoor use

• User friendly app interface

• 20 A input current, ideal for bifacial

and large area PV modules

• Wide MPP voltage range

150V-1000V

• ShadeSol shadow management

AC voltage range

160 V to 300 V

AC grid frequency / range

50 Hz / 45 Hz to 55 Hz

60 Hz / 55 Hz to 65 Hz

Max. output current

19.1 A

20.7 A

24 A

27.1 A

31.9 A

Adjustable power factor range

0.8 leading to 0.8 lagging

Feed-in phases

3 / 3-N-PE

Harmonic distortion (THD) at rated output

< 3 %

Max. efficiency / European efficiency

DC Switch

Ground fault monitoring / grid monitoring

DC reverse polarity protection / AC short circuit protection

All-pole-sensitive residual-current monitoring unit

Anti-Islanding protection

Surge protection

Protection class (according to IEC 62109-1) /

overvoltage category (according to IEC 62109-1)

Dimensions (W / H / D)

Weight

Operating temperature range

Self-consumption (at night)

Topology

Cooling concept

Degree of protection (according to IEC 60529)

Climatic category (according to IEC 60721-3-4)

Max. permissible value for relative humidity (non-condensing)

Max. operating altitude

DC connection

AC connection

Mounting type

LED indicators (Status / Fault / Communication)

Communication interface

1&2

Country of manufacture

Certificates and approvals (more available on request)

17.3 kg

98.6% / 98.2 %

●

● / ●

●

● / Type II

I/AC: III; DC :ll

503 / 435 / 183 mm

17.3 kg

-25°C ... +60°C

< 1 W

Non-isolated

Active cooling

IP66

4K4H

100%

3000 m

Plug-in connector

Wall-mount bracket

●

Wi-Fi / 4G / RS485 (Optional)

China

18.6 kg

CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11

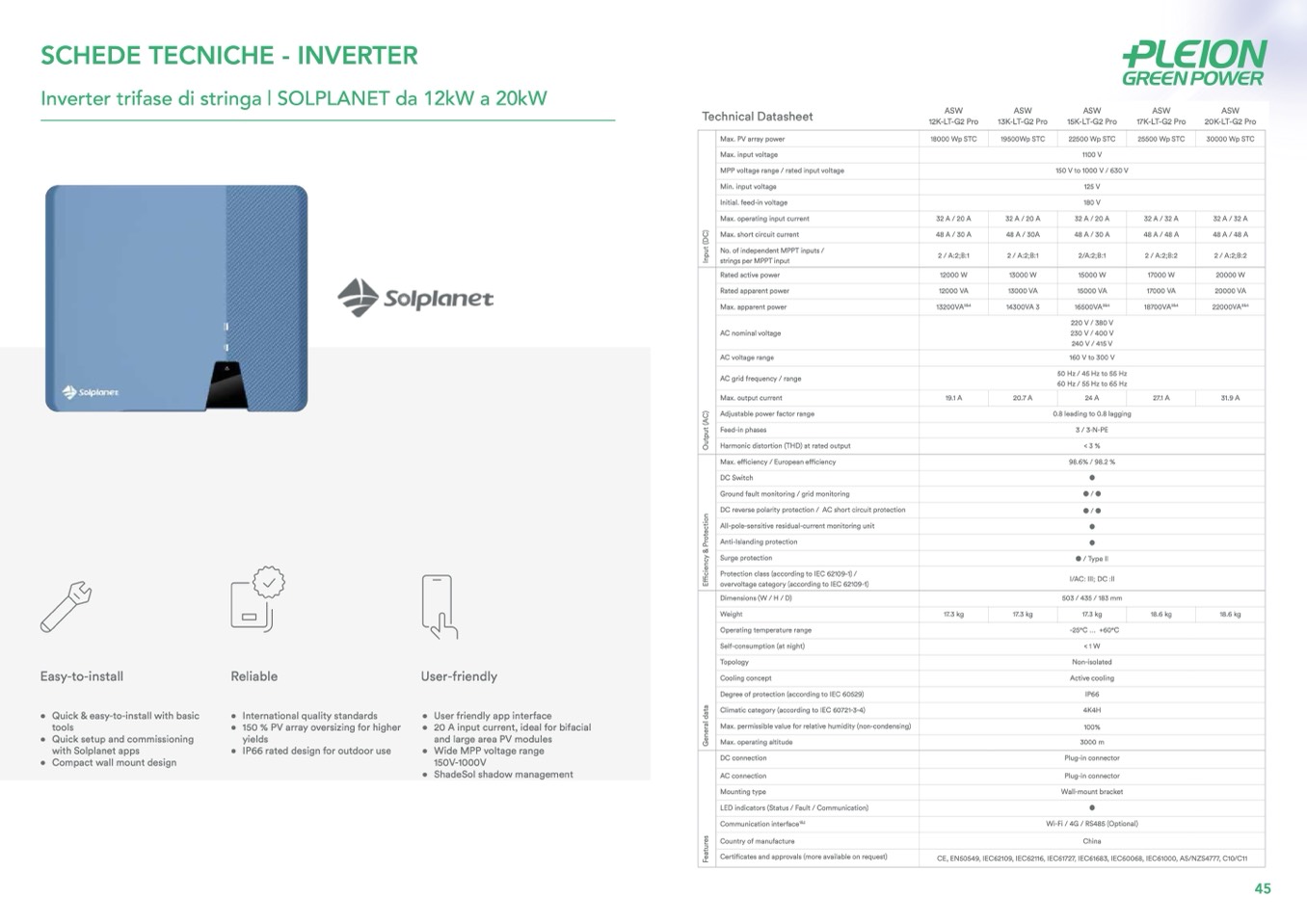

Three phase inverters 12 to 20 kW

SCHEDE TECNICHE - INVERTER

Inverter trifase di stringa | SOLPLANET da 12kW a 20kW

ASW LT-G2 Pro Series

solplanet.net

@Solplanet

● Standard features / ○ optional features / – not available

1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters

2- DRED supported with RS485 communication for Australia & New Zealand

3) The overload setting is disabled as default for AS/NZS4777 grid codes

4)For European and AS/NZS4777 grid codes the max. apparent AC power is equal to the rated power
