Technical Datasheet

O

u

t

p

u

t

(

A

C

)

I

n

p

u

t

(

D

C

)

ASW

ASW

ASW

ASW

ASW

ASW

3K-LT-G2 Pro 4K-LT-G2 Pro 5K-LT-G2 Pro 6K-LT-G2 Pro 8K-LT-G2 Pro 10K-LT-G2 Pro

Max. PV array power

4500 Wp STC

6000 Wp STC

7500 Wp STC

9000 Wp STC

12000 WpSTC

15000 Wp STC

Models:

ASW3K-LT-G2 Pro

ASW4K-LT-G2 Pro

ASW5K-LT-G2 Pro

ASW6K-LT-G2 Pro

ASW8K-LT-G2 Pro

ASW10K-LT-G2 Pro

Max. input voltage

1100 V

MPP voltage range / rated input voltage

150 V to 1000 V / 630 V

Min. input voltage

125 V

Initial. feed-in voltage

180 V

Max. operating input current

16 A / 16 A

20A / 16 A

Max. short circuit current

25 A / 25 A

30 A / 25 A

No. of independent MPPT inputs / strings per MPPT input

2 / A :1 ; B : 1

Rated active power

3000 W

4000 W

5000 W

6000 W

8000 W

10000 W

Rated apparent power

3000 VA

4000 VA

5000 VA

6000 VA

8000 VA

10000 VA

Max. apparent power

3300 VA

3&4

4400 VA

3&4

5500 VA

3&4

6600 VA

3&4

8800 VA

3&4

11000 VA

3&4

AC nominal voltage

Easy-to-install

• Quick & easy-to-install with basic

tools

• Quick setup and commissioning

with Solplanet apps

• Compact wall mount design

Reliable

User-friendly

• International quality standards

• 150 % PV array oversizing for higher

yields

• IP66 rated design for outdoor use

• User friendly app interface

• Max.20 A input current, ideal for

bifacial and large area PV modules

• Wide MPP voltage range

150V-1000V

• ShadeSol shadow management

AC voltage range

160 V to 300 V

AC grid frequency / range

50 Hz / 45 Hz to 55 Hz

60 Hz / 55 Hz to 65 Hz

220 V / 380 V

230 V / 400 V

240 V / 415 V

Max. output current

4.8A

6.4 A

8.0 A

9.6 A

12.8 A

16 A

Adjustable power factor range

0.8 leading to 0.8 lagging

Feed-in phases

3 / 3-N-PE

Harmonic distortion (THD) at rated output

< 3%

Max. efficiency / European efficiency

DC Switch

Ground fault monitoring / grid monitoring

DC reverse polarity protection / AC short circuit protection

All-pole-sensitive residual-current monitoring unit

Anti-Islanding protection

Surge protection

Protection class (according to IEC 62109-1) /

overvoltage category (according to IEC 62109-1)

Dimensions (W / H / D)

Weight

Operating temperature range

Self-consumption (at night)

Topology

Cooling concept

Degree of protection (according to IEC 60529)

Climatic category (according to IEC 60721-3-4)

Max. permissible value for relative humidity (non-condensing)

Max. operating altitude

DC connection

AC connection

Mounting type

LED indicators (Status / Fault / Communication)

Communication interface

1&2

Country of Manufacture

Certificates and approvals (more available on request)

98.3 % / 97.9 %

98.6% / 98.2 %

< 15 kg

●

● / ●

● / ●

●

●

● / Type II

I / AC : III ; DC : II

503 / 435 / 183 mm

-25°C ... +60°C

< 1 W

Non-isolated

Natural Convection

IP66

4K4H

100 %

3000 m

Plug-in connector

Plug-in connector

Wall-mount bracket

●

17.3 kg

Wi-Fi / 4G / RS485 (Optional)

China

CE, EN50549, G98/99, VDE-AR-N4105, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15,

IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T 32004

F

e

a

t

u

r

e

s

G

e

n

e

r

a

l

d

a

t

a

E

f

f

i

c

i

e

n

c

y

&

P

r

o

t

e

c

t

i

o

n

Three phase inverters 3 to 10 kW

ASW LT-G2 Pro Series

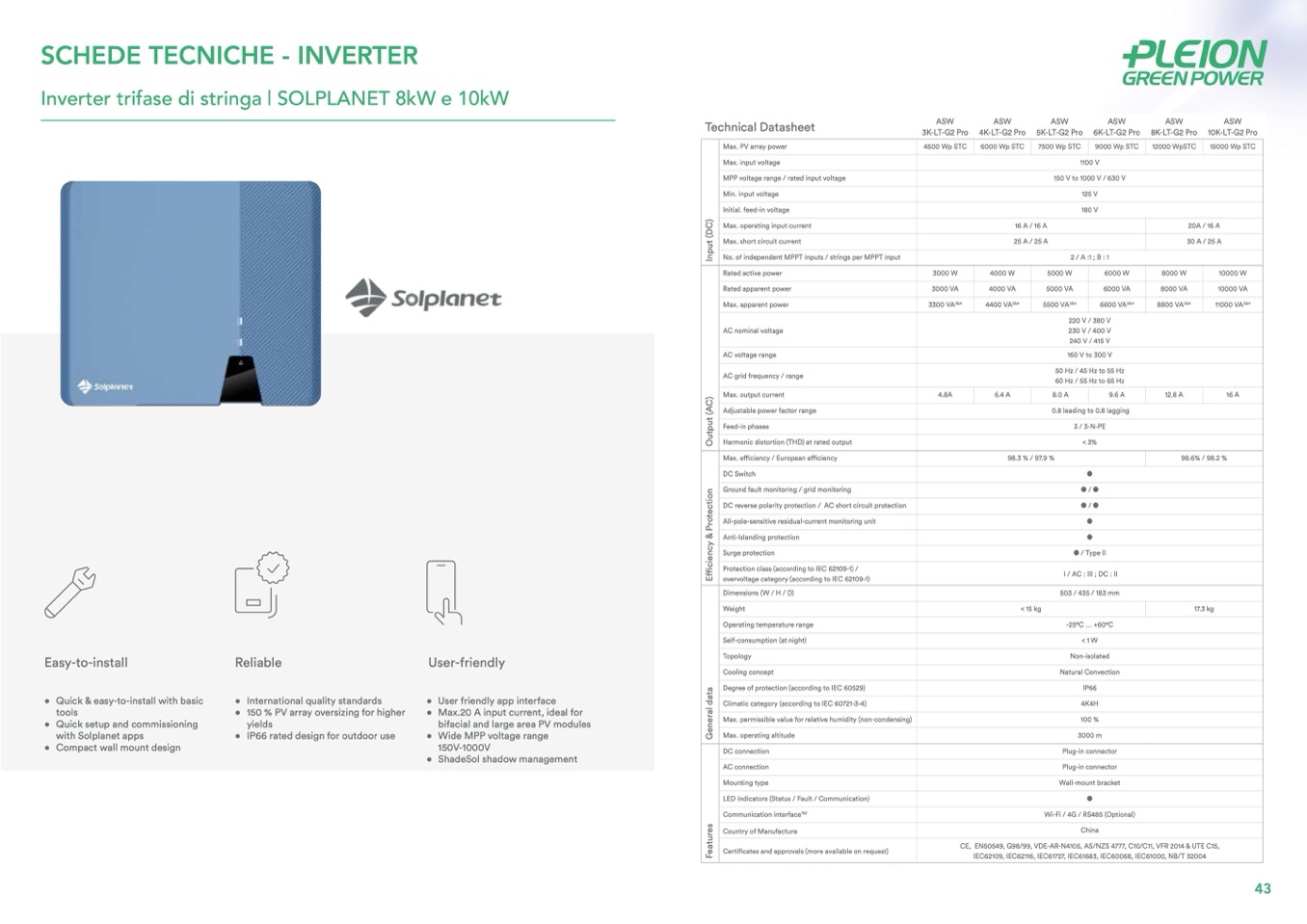

SCHEDE TECNICHE - INVERTER

Inverter trifase di stringa | SOLPLANET 8kW e 10kW

solplanet.net

@Solplanet

● Standard features / ○ optional features / – not available

1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters

2- DRED supported with RS485 communication for Australia & New Zealand

3- The overload setting is disabled as default for AS/NZS4777 grid codes

4- For European and AS/NZS4777 grid codes the max. apparent AC power is equal to the rated power

Data at nominal conditions. All information is subject to change.
