Technical Datasheet

O

u

t

p

u

t

(

A

C

)

I

n

p

u

t

(

D

C

)

ASW 25K-LT-G3

ASW 27K-LT-G3

ASW 30K-LT-G3

ASW 33K-LT-G3

ASW 36K-LT-G3

ASW 40K-LT-G3

Max. PV array power

37500 Wp STC

40500 Wp STC

45000 Wp STC

49500 Wp STC

54000 Wp STC

60000 Wp STC

Max. input voltage

1100 V

MPP voltage range / rated input voltage

180 V - 1000 V / 630 V

Min. input voltage

160 V

Initial. feed-in voltage

200 V

Max. operating input current

32A / 32 A /32A

32A / 32 A /40A

Max. short circuit current

48 A / 48A /48A

48 A / 48A /60A

Models:

ASW25K-LT-G3

ASW27K-LT-G3

ASW30K-LT-G3

ASW33K-LT-G3

ASW36K-LT-G3

ASW40K-LT-G3

Easy-to-install

• Quick & easy-to-instal with basic

tools

• Quick setup and commissioning

with Solplanet apps

• Compact wall mount design

Reliable

User-friendly

• International quality standards

• 150 % PV array oversizing for

higher yields

• IP66 rated design for outdoor use

• 20A input current, ideal for bifacial

and large area PV modules

• 3 MPPT ́s for flexible PV array design

• Wide MPP voltage range 180V-1000V

• ShadeSol shadow management

No. of independent MPPT inputs /

strings per MPPT input

3 / A:2;B:2;C:2

3 / A:2;B:2;C:2

Rated active power

25000W

27000W

30000W

33000W

36000W

40000W

Rated apparent power

25000 VA

27000 VA

30000 VA

33000 VA

36000 VA

40000 VA

Max. apparent power

27500VA

3&4

29700VA

3&4

33000VA

3&4

36300VA

3&4

39600VA

3&4

44000VA

3&4

AC nominal voltage

220 V / 380 V

230 V / 400 V

240 V / 415 V

AC voltage range

180 V to 305 V / 312 V to 528V

AC grid frequency / range

50 Hz / 45 Hz to 55 Hz

60 Hz / 55 Hz to 65 Hz

Max. output current

39.9A

43.0A

47.8A

52.6A

57.4A

63.8A

Adjustable power factor range

0.8 leading to 0.8 lagging

Feed-in phases

3 / 3-N-PE

Harmonic distortion (THD) at rated output

< 3%

Max. efficiency / European efficiency

DC Switch

Ground fault monitoring / grid monitoring

DC reverse polarity protection /

AC short circuit protection

All-pole-sensitive residual-current monitoring unit

Anti-islanding Protection

Surge protection

Protection class (according to IEC 62109-1) /

overvoltage category (according to IEC 62109-1)

Dimensions (W / H / D)

Weight

Operating temperature range

Self-consumption (at night)

Topology

Cooling concept

Degree of protection (according to IEC 60529)

Climatic category (according to IEC 60721-3-4)

Max. permissible value for relative humidity

(non-condensing)

Max. operating altitude

DC connection

AC connection

Mounting type

LED Indicators (Status / Fault / Communication)

Communication interface

1 & 2

Country of manufacture

Certificates and approvals

(more available on request)

29 kg

29 kg

98.4% / 98.2%

●

● / ●

●/ ●

●

●

● / Type II

I / AC: III; DC: II

543 / 520 / 235 mm

29 kg

30 kg

30 kg

30 kg

-25°C ... +60°C

< 1 W

Non-isolated

Active cooling

IP66

4K4H

100 %

3000 m

Plug-in connector

Plug-in connector

Wall-mount bracket

●

Wi-Fi / 4G / RS485 (Optional)

China

CE, EN50549 ,IEC62109, IEC62116, IEC61727, IEC61000, NB/T 32004

F

e

a

t

u

r

e

s

G

e

n

e

r

a

l

d

a

t

a

E

f

f

i

c

i

e

n

c

y

&

P

r

o

t

e

c

t

i

o

n

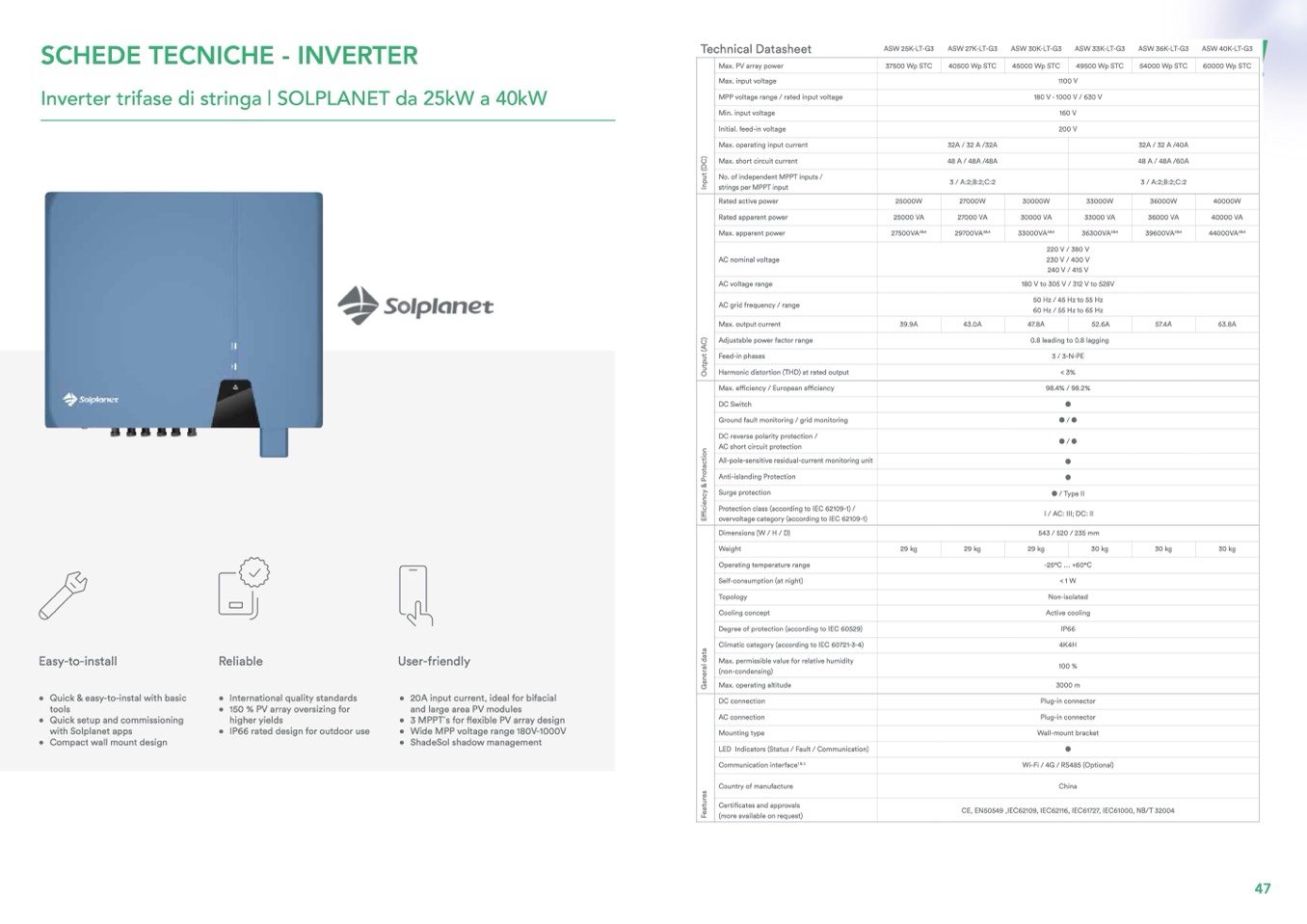

SCHEDE TECNICHE - INVERTER

Inverter trifase di stringa | SOLPLANET da 25kW a 40kW

Three phase inverters 25 to 40 kW

ASW LT-G3 Series

solplanet.net

@Solplanet

● Standard features / ○ optional features / – not available

1- Zero export installations supported with 2-pin RS485 for connection to approved smart meters

2- DRED supported with RS485 communication for Australia & New Zealand.

3) The overload setting is disabled as default for AS/NZS4777 grid codes

4)For European and AS/NZS4777 grid codes the max. apparent AC power is equal to the rated power

Version: Sep 2022
