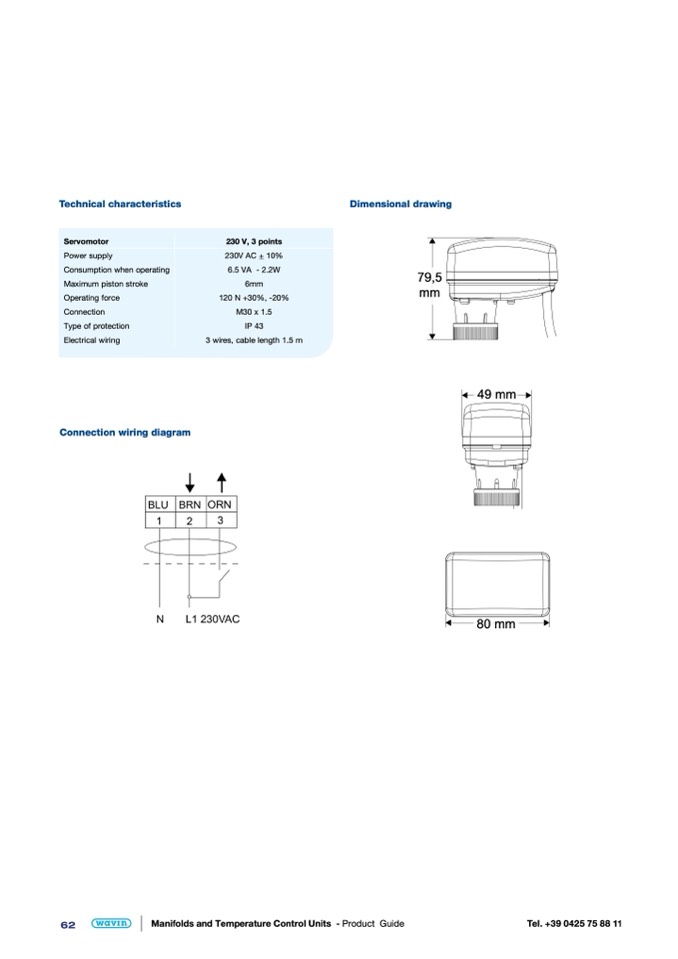

Technical characteristics

Servomotor

Power supply

Consumption when operating

Maximum piston stroke

Operating force

Connection

Type of protection

Electrical wiring

Connection wiring diagram

230 V, 3 points

230V AC + 10%

6.5 VA - 2.2W

6mm

120 N +30%, -20%

M30 x 1.5

IP 43

3 wires, cable length 1.5 m

Dimensional drawing

79,5

mm

49 mm

80 mm

62
