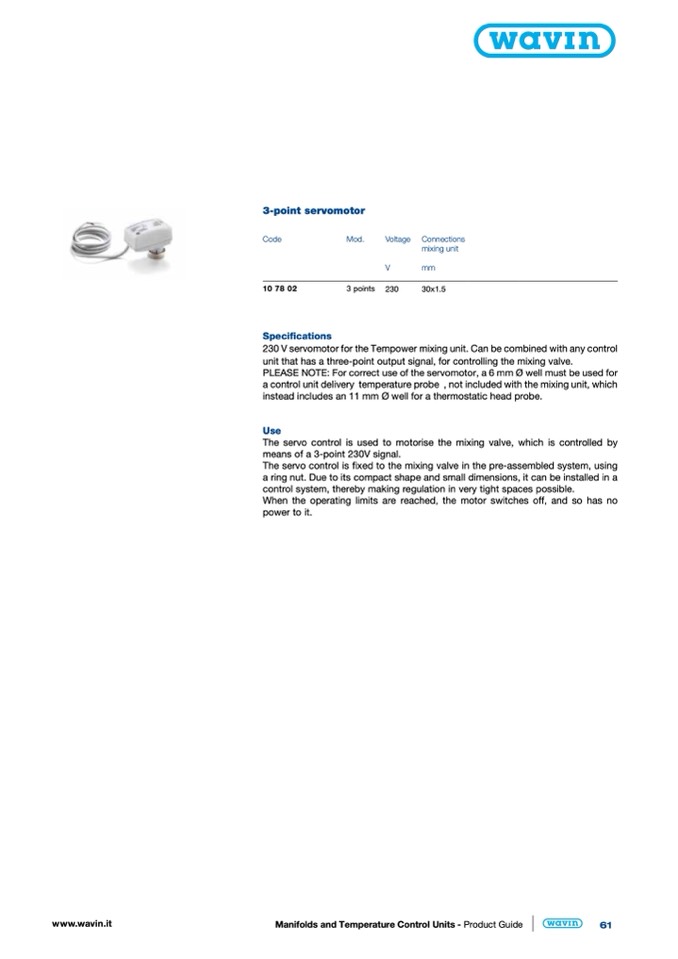

3-point servomotor

Code

Mod.

Voltage Connections

mixing unit

V

mm

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

61

10 78 02

3 points 230

30x1.5

Specifications

230 V servomotor for the Tempower mixing unit. Can be combined with any control

unit that has a three-point output signal, for controlling the mixing valve.

PLEASE NOTE: For correct use of the servomotor, a 6 mm Ø well must be used for

a control unit delivery temperature probe , not included with the mixing unit, which

instead includes an 11 mm Ø well for a thermostatic head probe.

Use

The servo control is used to motorise the mixing valve, which is controlled by

means of a 3-point 230V signal.

The servo control is fixed to the mixing valve in the pre-assembled system, using

a ring nut. Due to its compact shape and small dimensions, it can be installed in a

control system, thereby making regulation in very tight spaces possible.

When the operating limits are reached, the motor switches off, and so has no

power to it.
