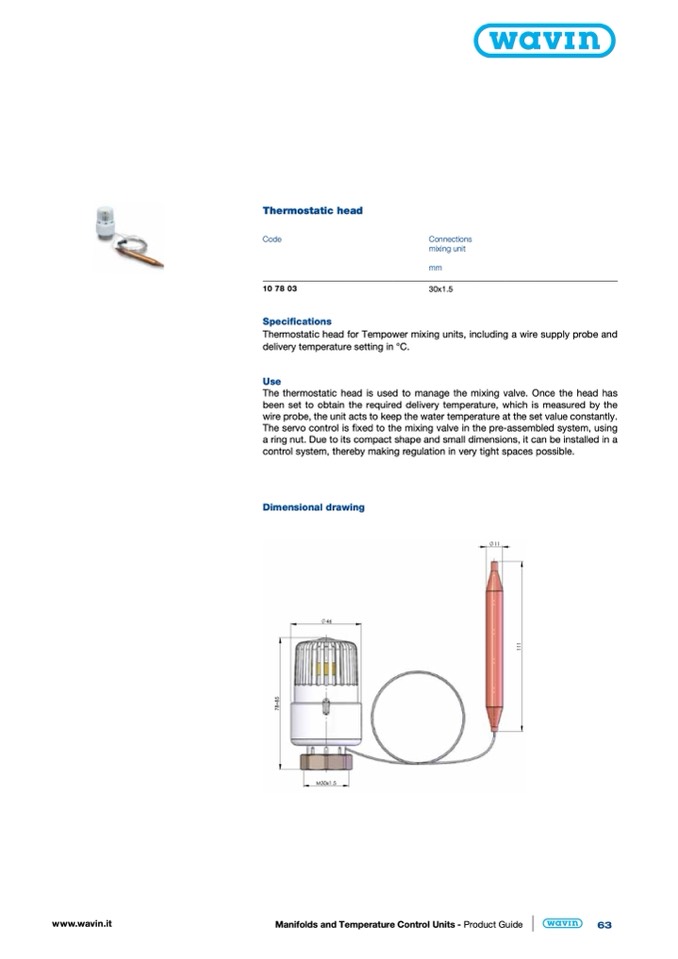

Thermostatic head

Code

10 78 03

Specifications

Connections

mixing unit

mm

30x1.5

Thermostatic head for Tempower mixing units, including a wire supply probe and

delivery temperature setting in °C.

Use

The thermostatic head is used to manage the mixing valve. Once the head has

been set to obtain the required delivery temperature, which is measured by the

wire probe, the unit acts to keep the water temperature at the set value constantly.

The servo control is fixed to the mixing valve in the pre-assembled system, using

a ring nut. Due to its compact shape and small dimensions, it can be installed in a

control system, thereby making regulation in very tight spaces possible.

Dimensional drawing

SPIGOLI SENZA BAVE

3.2

0

Rev.

M. Bondioli

27/04/09

M.Bondioli

LUXOR s.p.a.

27.04.2009 Emissionedisegno

Descrizione

TT 2351 TESTA TERMOSTAT. CON

SONDA PER RISCALD. A PAV.

Finitura

Disegnatore

Data

M30x1.5

46

Manifolds and Temperature Control Units - Product Guide

63

Materiale

Peso

84.0 gr

ABS

Disegno N°

Senza nostra autorizzazione scritta questo disegno non può essere riprodotto nè comunicato a terzi

Temperatura max

Pressione di esercizio

69011040

11

7

8

÷

8

5
