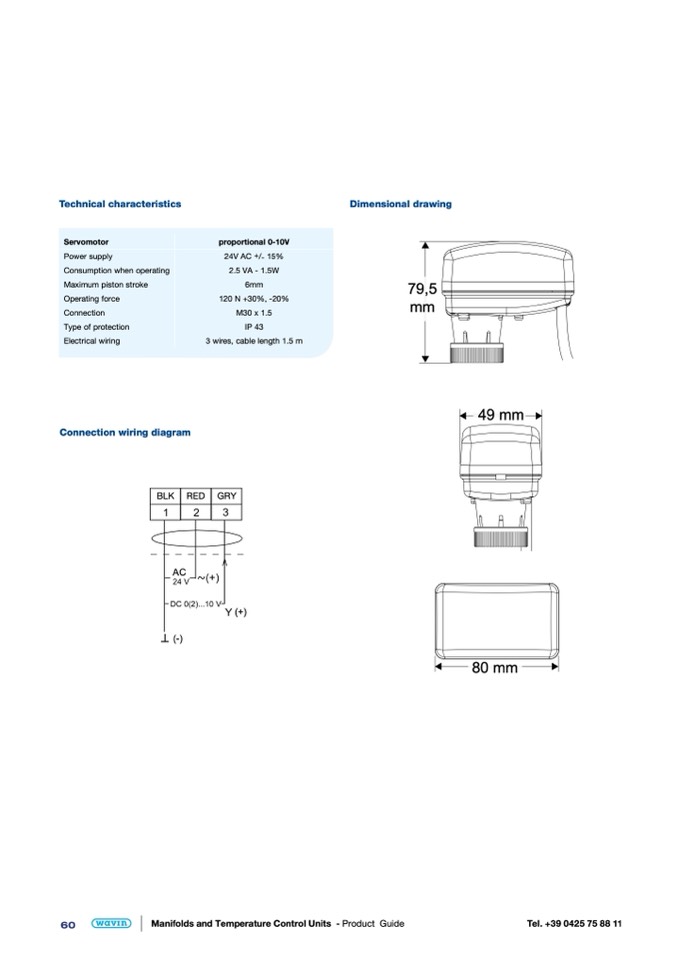

Technical characteristics

Servomotor

Power supply

Consumption when operating

Maximum piston stroke

Operating force

Connection

Type of protection

Electrical wiring

Connection wiring diagram

AC

(+)

(-)

Dimensional drawing

79,5

mm

proportional 0-10V

24V AC +/- 15%

2.5 VA - 1.5W

6mm

120 N +30%, -20%

M30 x 1.5

IP 43

3 wires, cable length 1.5 m

49 mm

BLK

RED

GRY

80 mm

60
