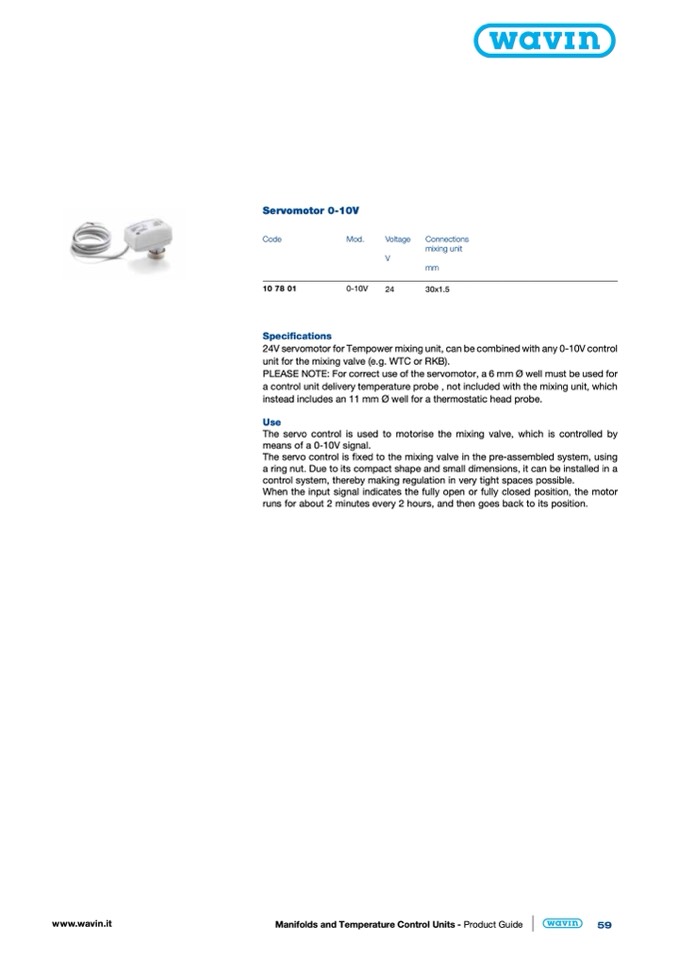

Servomotor 0-10V

Code

10 78 01

Specifications

Mod.

Voltage

Connections

mixing unit

V

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

59

0-10V

24

mm

30x1.5

24V servomotor for Tempower mixing unit, can be combined with any 0-10V control

unit for the mixing valve (e.g. WTC or RKB).

PLEASE NOTE: For correct use of the servomotor, a 6 mm Ø well must be used for

a control unit delivery temperature probe , not included with the mixing unit, which

instead includes an 11 mm Ø well for a thermostatic head probe.

Use

The servo control is used to motorise the mixing valve, which is controlled by

means of a 0-10V signal.

The servo control is fixed to the mixing valve in the pre-assembled system, using

a ring nut. Due to its compact shape and small dimensions, it can be installed in a

control system, thereby making regulation in very tight spaces possible.

When the input signal indicates the fully open or fully closed position, the motor

runs for about 2 minutes every 2 hours, and then goes back to its position.
