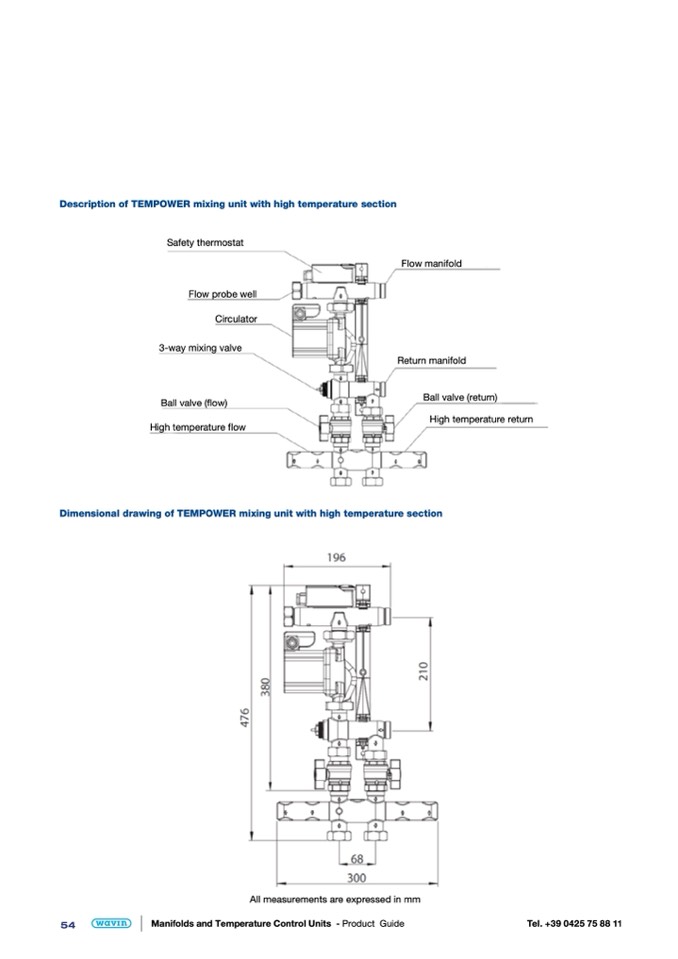

Description of TEMPOWER mixing unit with high temperature section

Safety thermostat

Flow probe well

Circulator

3-way mixing valve

Ball valve (flow)

High temperature flow

Flow manifold

Return manifold

Ball valve (return)

High temperature return

Dimensional drawing of TEMPOWER mixing unit with high temperature section

All measurements are expressed in mm
