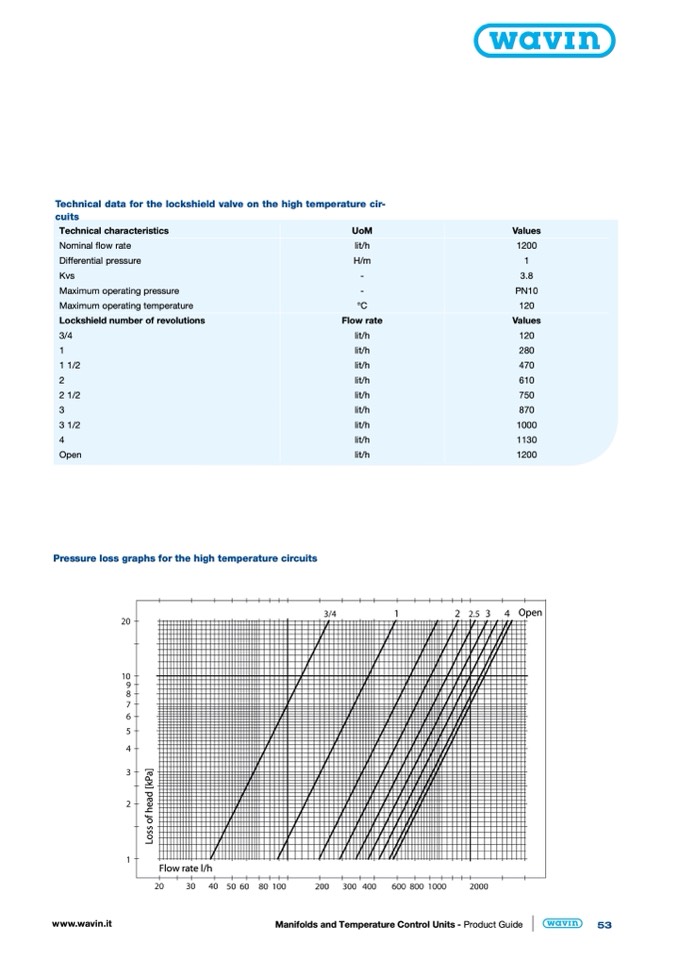

Technical data for the lockshield valve on the high temperature cir-

cuits

Technical characteristics

Nominal flow rate

Differential pressure

Kvs

Maximum operating pressure

Maximum operating temperature

Lockshield number of revolutions

3/4

1

1 1/2

2

2 1/2

3

3 1/2

4

Open

Pressure loss graphs for the high temperature circuits

UoM

Values

lit/h

1200

H/m

1

-

3.8

-

PN10

°C

120

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

53

Flow rate

Values

lit/h

120

lit/h

280

lit/h

470

lit/h

610

lit/h

750

lit/h

870

lit/h

1000

lit/h

1130

lit/h

1200

Flow rate l/h

Open

L

o

s

s

o

f

h

e

a

d

[

k

P

a

]
