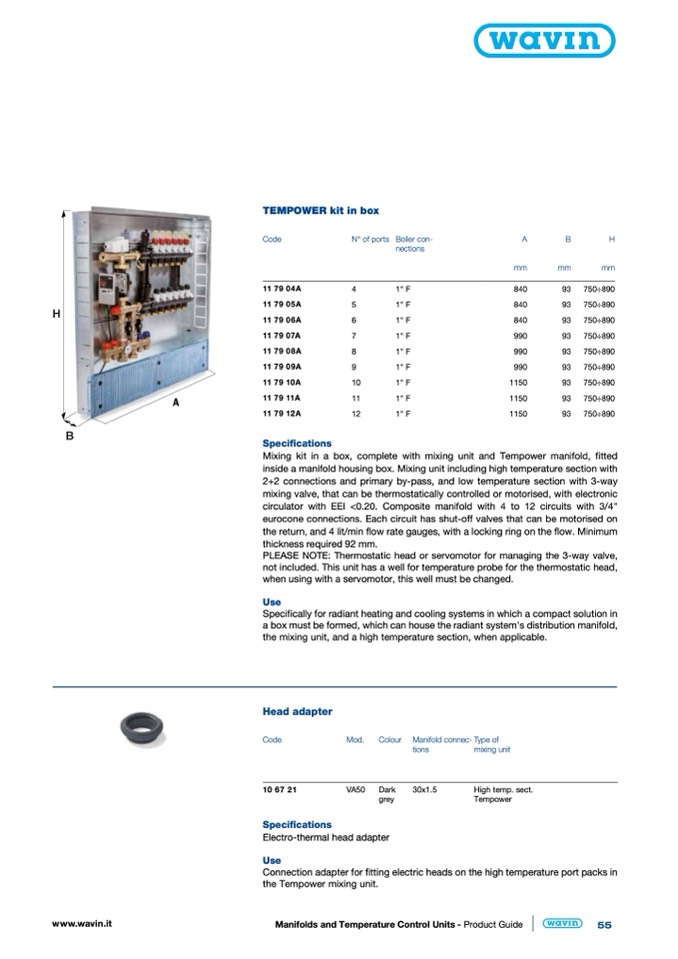

TEMPOWER kit in box

Code

11 79 04A

11 79 05A

11 79 06A

11 79 07A

11 79 08A

11 79 09A

11 79 10A

11 79 11A

11 79 12A

Specifications

N° of ports

Boiler con-

nections

1" F

840

990

1150

750÷890

Mixing kit in a box, complete with mixing unit and Tempower manifold, fitted

inside a manifold housing box. Mixing unit including high temperature section with

2+2 connections and primary by-pass, and low temperature section with 3-way

mixing valve, that can be thermostatically controlled or motorised, with electronic

circulator with EEI <0.20. Composite manifold with 4 to 12 circuits with 3/4"

eurocone connections. Each circuit has shut-off valves that can be motorised on

the return, and 4 lit/min flow rate gauges, with a locking ring on the flow. Minimum

thickness required 92 mm.

PLEASE NOTE: Thermostatic head or servomotor for managing the 3-way valve,

not included. This unit has a well for temperature probe for the thermostatic head,

when using with a servomotor, this well must be changed.

Use

Specifically for radiant heating and cooling systems in which a compact solution in

a box must be formed, which can house the radiant system's distribution manifold,

the mixing unit, and a high temperature section, when applicable.

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

Head adapter

Code

10 67 21

Specifications

Mod.

Colour

VA50

Dark

grey

Manifold connec- Type of

Electro-thermal head adapter

Use

tions

30x1.5

mixing unit

High temp. sect.

Tempower

Connection adapter for fitting electric heads on the high temperature port packs in

the Tempower mixing unit.
