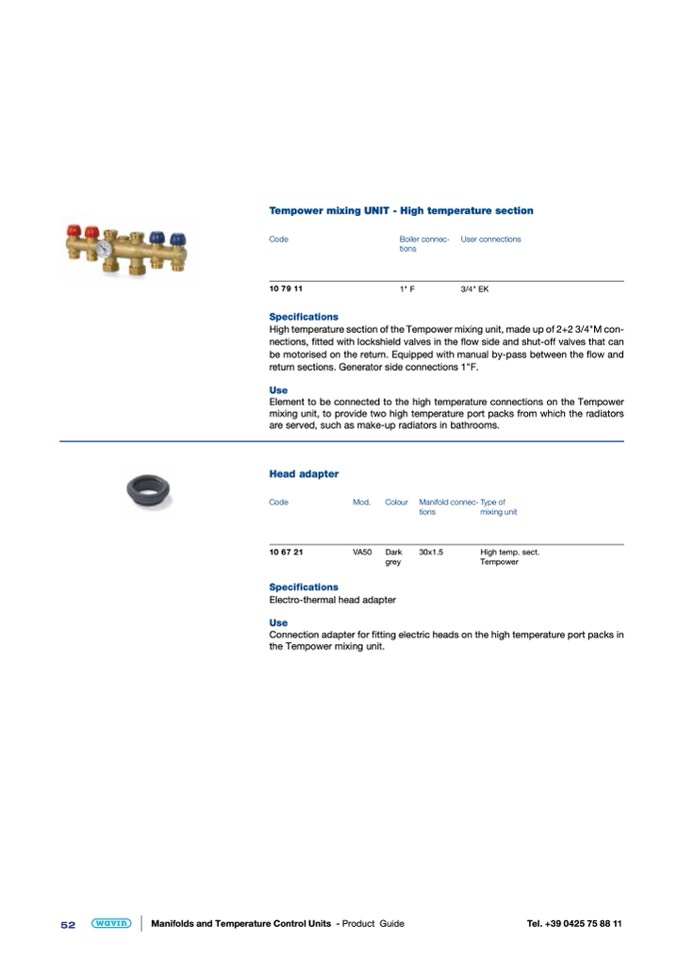

Tempower mixing UNIT - High temperature section

Code

Boiler connec- User connections

tions

10 79 11

1" F

3/4" EK

Specifications

High temperature section of the Tempower mixing unit, made up of 2+2 3/4"M con-

nections, fitted with lockshield valves in the flow side and shut-off valves that can

be motorised on the return. Equipped with manual by-pass between the flow and

return sections. Generator side connections 1"F.

Use

Element to be connected to the high temperature connections on the Tempower

mixing unit, to provide two high temperature port packs from which the radiators

are served, such as make-up radiators in bathrooms.

Head adapter

Code

10 67 21

Specifications

Mod.

Colour

VA50

Dark

grey

Manifold connec- Type of

tions

30x1.5

mixing unit

High temp. sect.

Tempower

Electro-thermal head adapter

Use

Connection adapter for fitting electric heads on the high temperature port packs in

the Tempower mixing unit.
