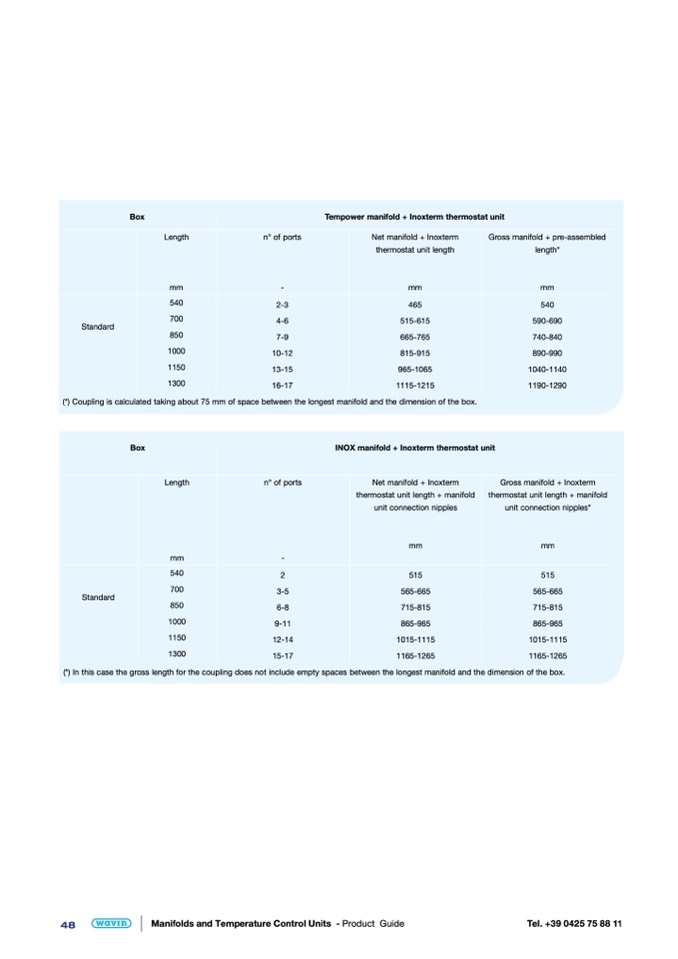

Box

Tempower manifold + Inoxterm thermostat unit

Length

mm

n° of ports

-

Net manifold + Inoxterm

thermostat unit length

mm

Standard

540

700

850

1000

1150

1300

2-3

4-6

7-9

10-12

13-15

16-17

465

515-615

665-765

815-915

965-1065

1115-1215

Gross manifold + pre-assembled

length*

mm

540

590-690

740-840

890-990

1040-1140

1190-1290

(*) Coupling is calculated taking about 75 mm of space between the longest manifold and the dimension of the box.

Box

INOX manifold + Inoxterm thermostat unit

Length

mm

n° of ports

-

Net manifold + Inoxterm

thermostat unit length + manifold

unit connection nipples

mm

Standard

540

700

850

1000

1150

1300

2

3-5

6-8

9-11

12-14

15-17

515

565-665

715-815

865-965

1015-1115

1165-1265

Gross manifold + Inoxterm

thermostat unit length + manifold

unit connection nipples*

mm

515

565-665

715-815

865-965

1015-1115

1165-1265

(*) In this case the gross length for the coupling does not include empty spaces between the longest manifold and the dimension of the box.
