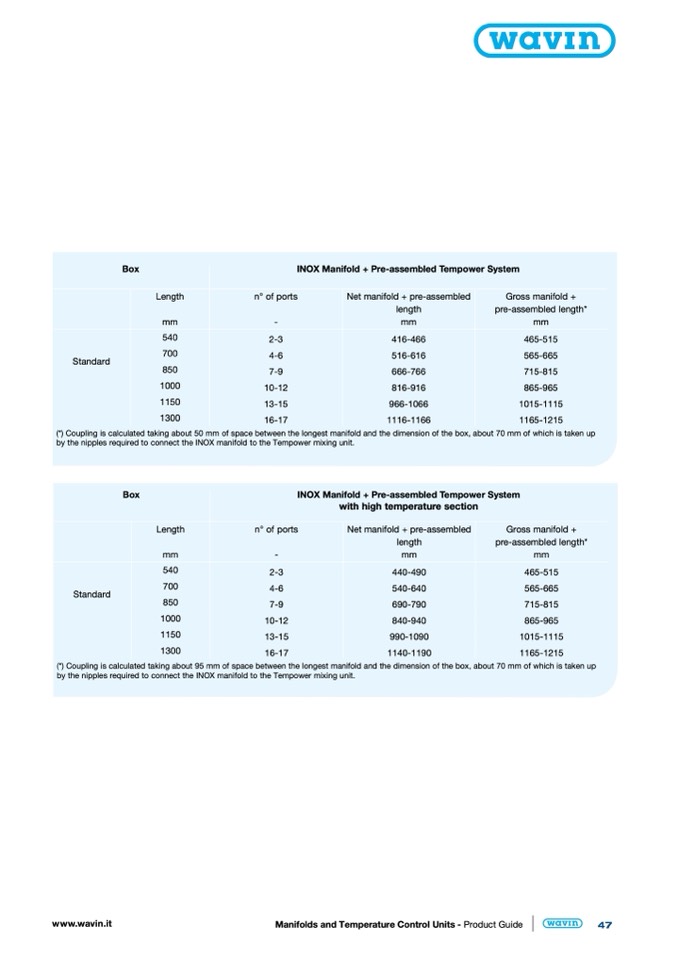

Box
INOX Manifold + Pre-assembled Tempower System
Length
mm
n° of ports
-
Net manifold + pre-assembled
length
mm
Standard
540
700
850
1000
1150
1300
2-3
416-466
4-6
516-616
7-9
666-766
10-12
816-916
13-15
966-1066
16-17
1116-1166
Gross manifold +
pre-assembled length*
mm
465-515
565-665
715-815
865-965
1015-1115
1165-1215
(*) Coupling is calculated taking about 50 mm of space between the longest manifold and the dimension of the box, about 70 mm of which is taken up
by the nipples required to connect the INOX manifold to the Tempower mixing unit.
Box
INOX Manifold + Pre-assembled Tempower System
with high temperature section
Length
mm
n° of ports
-
Net manifold + pre-assembled
length
mm
Standard
540
700
850
1000
1150
1300
2-3
4-6
7-9
10-12
13-15
16-17
440-490
540-640
690-790
840-940
990-1090
1140-1190
Gross manifold +
pre-assembled length*
mm
465-515
565-665
715-815
865-965
1015-1115
1165-1215
(*) Coupling is calculated taking about 95 mm of space between the longest manifold and the dimension of the box, about 70 mm of which is taken up
by the nipples required to connect the INOX manifold to the Tempower mixing unit.
