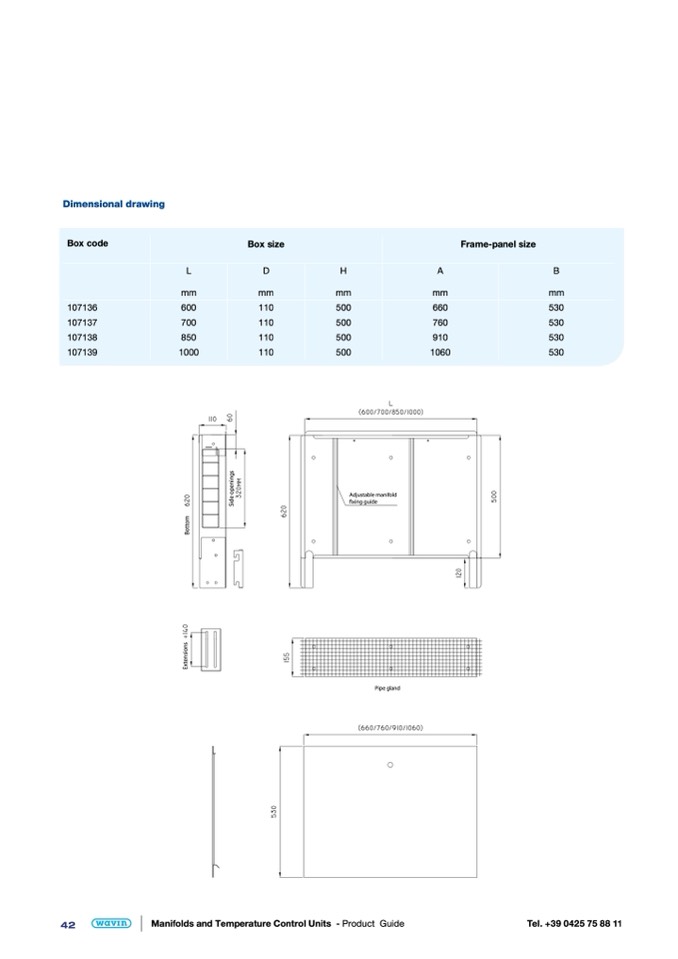

Dimensional drawing

Box code

107136

107137

107138

107139

Box size

600

110

700

110

850

110

1000

110

Frame-panel size

mm

660

530

760

530

910

530

1060

530

42

Manifolds and Temperature Control Units - Product Guide

Tel. +39 0425 75 88 11

500

500

500

500

Pipe gland

B

L

mm

D

mm

H

mm

A

mm

Adjustable manifold

fixing guide

E

x

t

e

n

s

i

o

n

s

B

o

t

t

o

m

S

i

d

e

o

p

e

n

i

n

g

s
