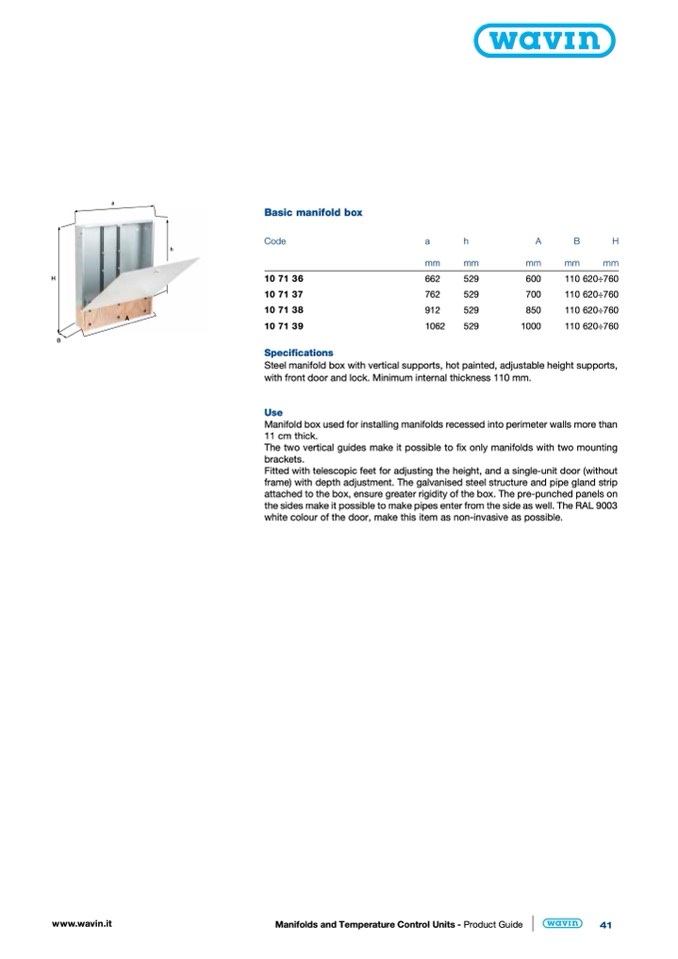

Basic manifold box

Code

a

h

A

B

H

107136

662

107137

762

107138

912

107139

1062

529

Specifications

mm

mm

mm

mm

mm

600

110 620÷760

700

110 620÷760

850

110 620÷760

1000

110 620÷760

529

529

529

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

41

Steel manifold box with vertical supports, hot painted, adjustable height supports,

with front door and lock. Minimum internal thickness 110 mm.

Use

Manifold box used for installing manifolds recessed into perimeter walls more than

11 cm thick.

The two vertical guides make it possible to fix only manifolds with two mounting

brackets.

Fitted with telescopic feet for adjusting the height, and a single-unit door (without

frame) with depth adjustment. The galvanised steel structure and pipe gland strip

attached to the box, ensure greater rigidity of the box. The pre-punched panels on

the sides make it possible to make pipes enter from the side as well. The RAL 9003

white colour of the door, make this item as non-invasive as possible.
