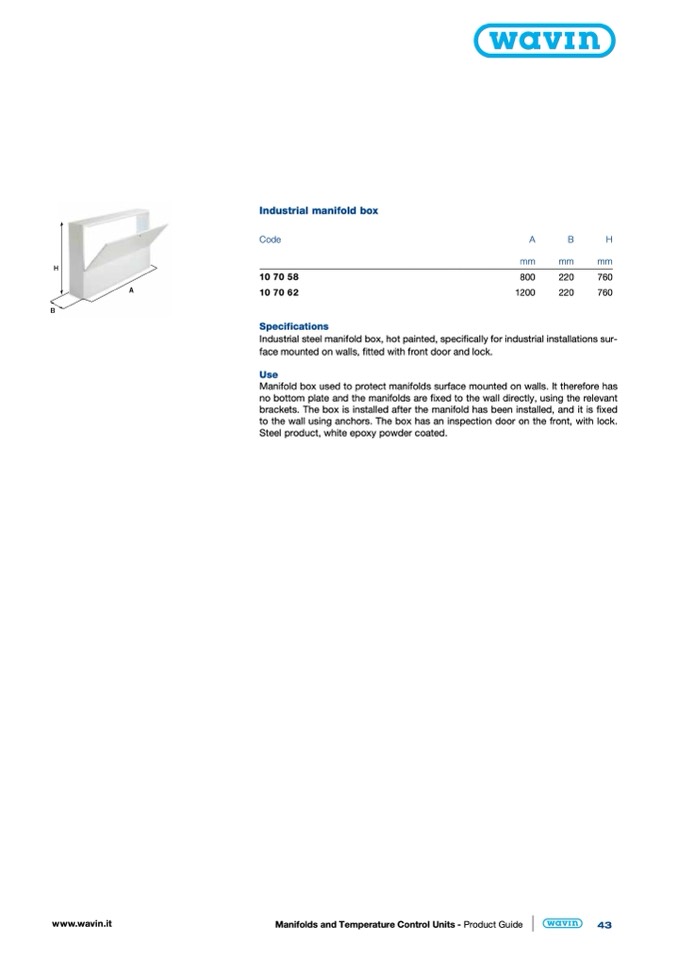

Industrial manifold box
Code
A
B
H
mm
mm
mm
10 70 58
800
220
760
10 70 62
1200
220
760
Specifications
Industrial steel manifold box, hot painted, specifically for industrial installations sur-
face mounted on walls, fitted with front door and lock.
Use
Manifold box used to protect manifolds surface mounted on walls. It therefore has
no bottom plate and the manifolds are fixed to the wall directly, using the relevant
brackets. The box is installed after the manifold has been installed, and it is fixed
to the wall using anchors. The box has an inspection door on the front, with lock.
Steel product, white epoxy powder coated.
