A

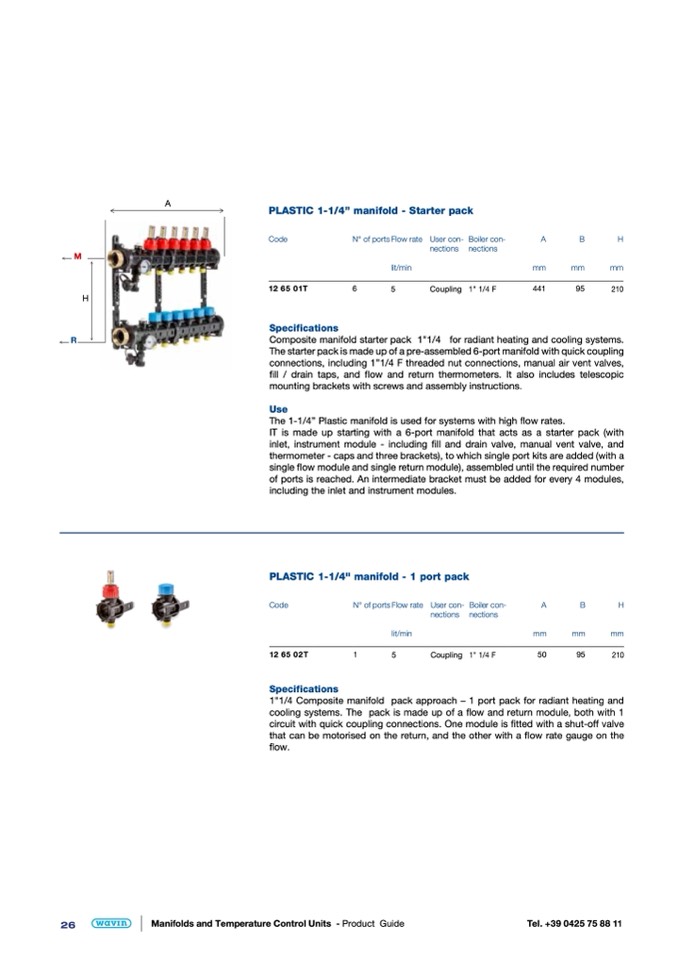

PLASTIC 1-1/4” manifold - Starter pack

M

H

Code

12 65 01T

Specifications

N° of ports Flow rate

lit/min

6

5

User con- Boiler con-

nections nections

Coupling 1" 1/4 F

A

B

H

mm

mm

mm

441

95

210

R

Composite manifold starter pack 1"1/4 for radiant heating and cooling systems.

The starter pack is made up of a pre-assembled 6-port manifold with quick coupling

connections, including 1”1/4 F threaded nut connections, manual air vent valves,

fill / drain taps, and flow and return thermometers. It also includes telescopic

mounting brackets with screws and assembly instructions.

Use

The 1-1/4” Plastic manifold is used for systems with high flow rates.

IT is made up starting with a 6-port manifold that acts as a starter pack (with

inlet, instrument module - including fill and drain valve, manual vent valve, and

thermometer - caps and three brackets), to which single port kits are added (with a

single flow module and single return module), assembled until the required number

of ports is reached. An intermediate bracket must be added for every 4 modules,

including the inlet and instrument modules.

PLASTIC 1-1/4" manifold - 1 port pack

Code

N° of ports Flow rate

lit/min

12 65 02T

1

5

Specifications

User con- Boiler con-

nections nections

Coupling 1" 1/4 F

A

B

H

mm

mm

mm

50

95

210

1"1/4 Composite manifold pack approach – 1 port pack for radiant heating and

cooling systems. The pack is made up of a flow and return module, both with 1

circuit with quick coupling connections. One module is fitted with a shut-off valve

that can be motorised on the return, and the other with a flow rate gauge on the

flow.
