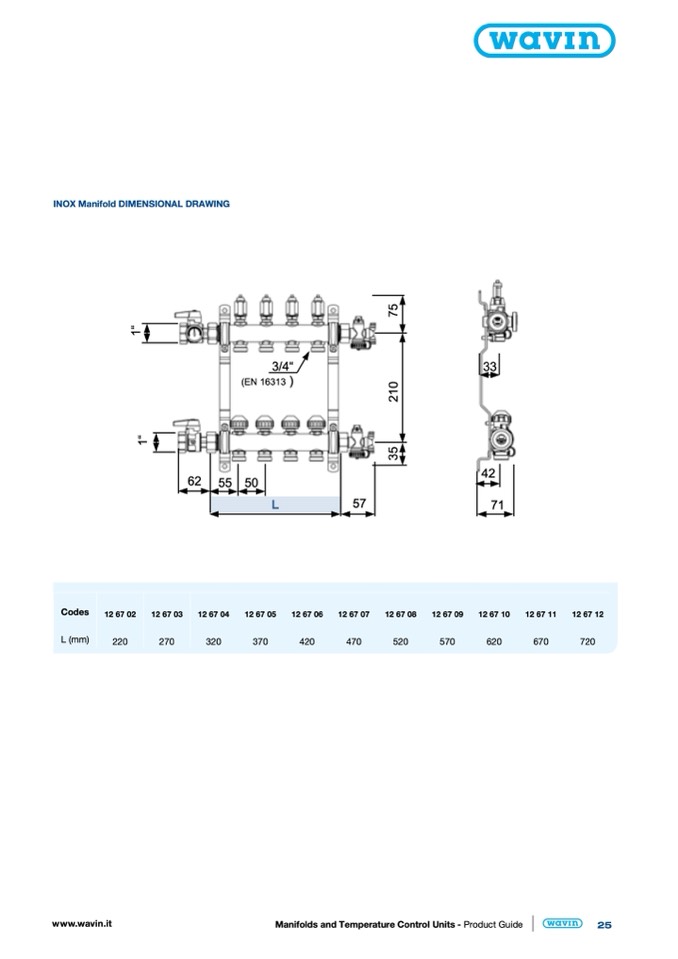

INOX Manifold DIMENSIONAL DRAWING

Codes

L (mm)

12 67 02

220

12 67 03

270

12 67 04

320

12 67 05

370

12 67 06

420

57

12 67 07

470

12 67 08

520

12 67 09

570

12 67 11

670

12 67 12

720

www.wavin.it

Manifolds and Temperature Control Units - Product Guide

25

62

55 50

3/4“

(EN 16313

)

33

42

71

12 67 10

620

3

5

2

1

0

7

5

1

“

1

“

L
