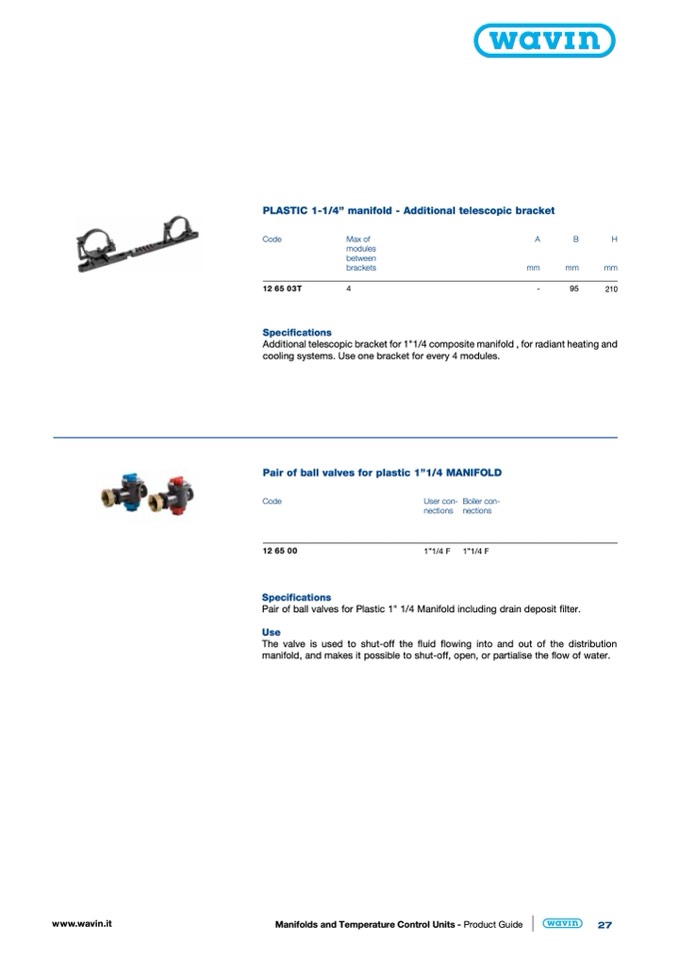

PLASTIC 1-1/4” manifold - Additional telescopic bracket

Code

12 65 03T

Specifications

Max of

A

B

H

modules

between

brackets

mm

mm

mm

4

-

9

5

210

Additional telescopic bracket for 1"1/4 composite manifold , for radiant heating and

cooling systems. Use one bracket for every 4 modules.

Pair of ball valves for plastic 1”1/4 MANIFOLD

Code

User con- Boiler con-

nections nections

12 65 00

1”1/4 F

1”1/4 F

Specifications

Pair of ball valves for Plastic 1" 1/4 Manifold including drain deposit filter.

Use

The valve is used to shut-off the fluid flowing into and out of the distribution

manifold, and makes it possible to shut-off, open, or partialise the flow of water.
