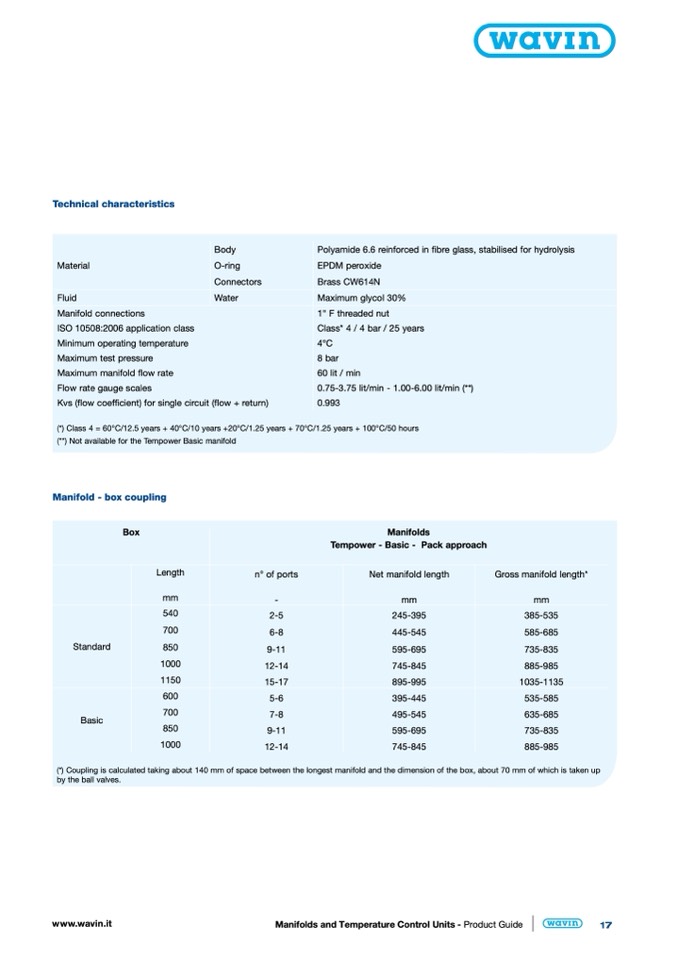

Technical characteristics

Material

Fluid

Body

O-ring

Connectors

Water

Polyamide 6.6 reinforced in fibre glass, stabilised for hydrolysis

EPDM peroxide

Brass CW614N

Manifold connections

ISO 10508:2006 application class

Minimum operating temperature

Maximum test pressure

Maximum manifold flow rate

Flow rate gauge scales

Kvs (flow coefficient) for single circuit (flow + return)

Maximum glycol 30%

1" F threaded nut

Class* 4 / 4 bar / 25 years

4°C

8 bar

60 lit / min

0.75-3.75 lit/min - 1.00-6.00 lit/min (**)

0.993

(*) Class 4 = 60°C/12.5 years + 40°C/10 years +20°C/1.25 years + 70°C/1.25 years + 100°C/50 hours

(**) Not available for the Tempower Basic manifold

Manifold - box coupling

Box

Manifolds

Tempower - Basic - Pack approach

2-5

245-395

6-8

445-545

9-11

595-695

12-14

745-845

15-17

895-995

5-6

395-445

7-8

495-545

9-11

595-695

12-14

745-845

Length

mm

n° of ports

-

Net manifold length

mm

Standard

Basic

540

700

850

1000

1150

600

700

850

1000

Gross manifold length*

mm

385-535

585-685

735-835

885-985

1035-1135

535-585

635-685

735-835

885-985

(*) Coupling is calculated taking about 140 mm of space between the longest manifold and the dimension of the box, about 70 mm of which is taken up

by the ball valves.
