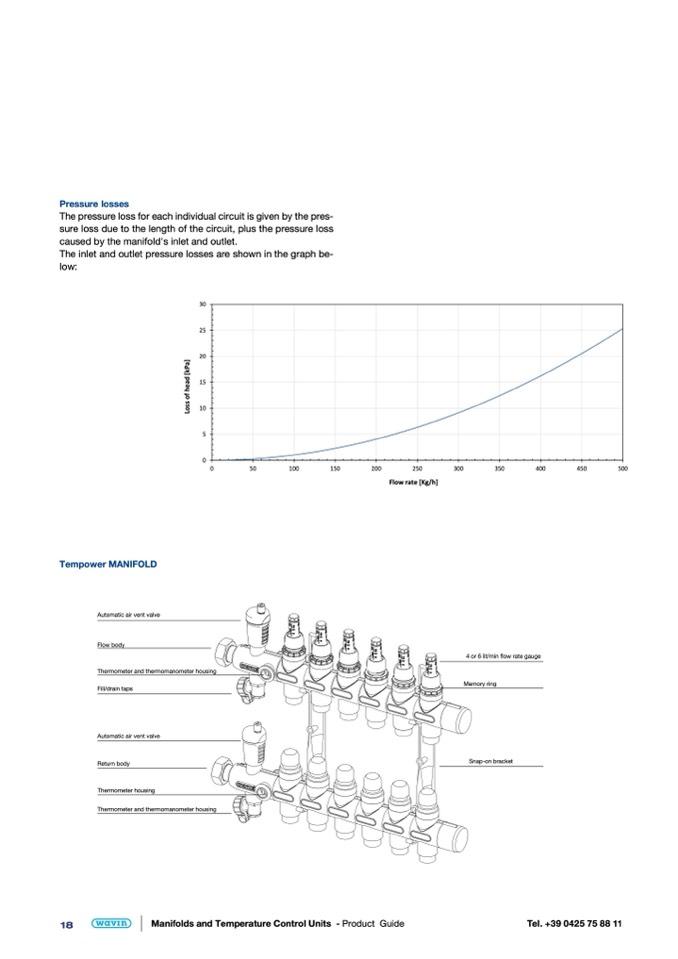

Pressure losses

The pressure loss for each individual circuit is given by the pres-

sure loss due to the length of the circuit, plus the pressure loss

caused by the manifold's inlet and outlet.

The inlet and outlet pressure losses are shown in the graph be-

low:

30

25

20

15

10

5

0

0

50

100

150

200

250

300

350

400

450

500

Flow rate [Kg/h]

L

o

s

s

o

f

h

e

a

d

[

k

P

a

]

Tempower MANIFOLD

Automatic air vent valve

Flow body

Thermometer and thermomanometer housing

Fill/drain taps

Automatic air vent valve

Return body

Thermometer housing

Thermometer and thermomanometer housing

4 or 6 lit/min flow rate gauge

Memory ring

Snap-on bracket
