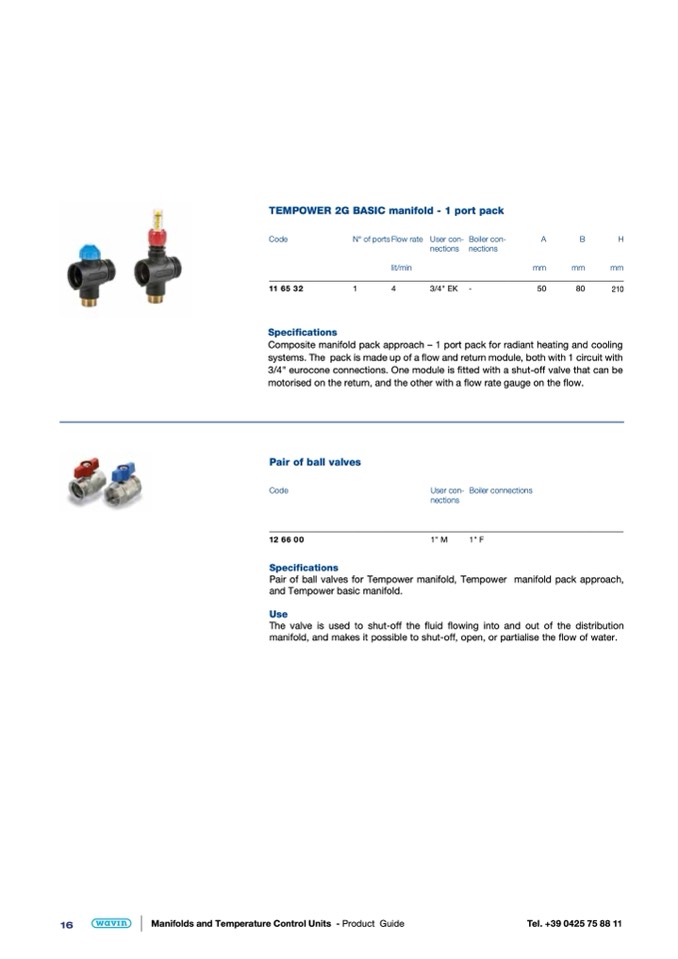

TEMPOWER 2G BASIC manifold - 1 port pack

Code

N° of ports Flow rate

lit/min

11 65 32

1

4

Specifications

User con- Boiler con-

nections nections

3/4" EK -

A

B

H

mm

mm

mm

50

80

210

Composite manifold pack approach – 1 port pack for radiant heating and cooling

systems. The pack is made up of a flow and return module, both with 1 circuit with

3/4" eurocone connections. One module is fitted with a shut-off valve that can be

motorised on the return, and the other with a flow rate gauge on the flow.

Pair of ball valves

Code

User con- Boiler connections

nections

12 66 00

1" M

1" F

Specifications

Pair of ball valves for Tempower manifold, Tempower manifold pack approach,

and Tempower basic manifold.

Use

The valve is used to shut-off the fluid flowing into and out of the distribution

manifold, and makes it possible to shut-off, open, or partialise the flow of water.
